Summary of Contents for Tellur TLL331151

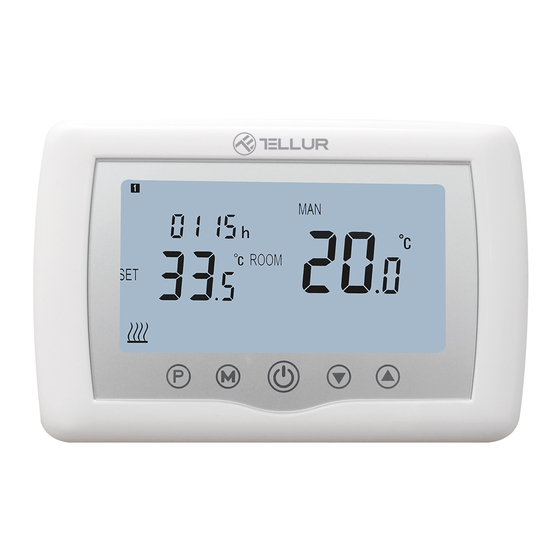

- Page 1 WiFi Thermostat TLL331151 User manual Compatible with Alexa and Google Home This manual is available in more languages on smart.tellur.com...
-
Page 2: Product Diagram
Product Diagram... -
Page 3: Specifications
Specifications Utilization: Central Heating Brand compatibility: Universal Receiver: Wired, wall mounted Receiver connectivity: Wired with boiler, 230VAC 50 / 60Hz Wireless 868MHz with central unit Wireless 2.4GHz with router Receiver input load: Maximum 10A Central unit: Wireless, portable Display: 3.7" illuminated Display parameters: Current temperature, set temperature, clock, current program Open window detection: Yes, 2°... -
Page 4: Led State
LED State Device Status LED State EZ mode Indicator flashes quickly AP mode Indicator flashes slowly Triggered LED indicator will rapidly blink, and it will turn OFF after the scheduled time Suspend mode LED indicator is off LED indicator lights up for 4 seconds; Reset once the LED turns off, the device enters configuration mode. -
Page 5: Product Features
Product features Child Lock When the Child Lock function is enabled (refer to menu 11 of parameter settings), the buttons will lock once the backlight turns off. Press the M button for 5 seconds to temporarily unlock the thermostat for adjustments. Open Window Detection Function (OWD function) When the Open Window Detection function is enabled in the parameter settings, the system will automatically stop... - Page 6 7-days programmable setting (4 programs per day) After setting the time and date, press the P button to enter the program setting. You can set the start time and desired temperature for each program by using the and buttons. Each press of the P button will take you to the next setting item.
- Page 7 Parameters setting Turn the thermostat off, then press and hold the M & button at the same time until menu 1 shows on display. Set the parameters by using the and buttons. Each press of the M button will take you to the next setting item. Menu Description Range...
-
Page 8: Product Installation
Product installation WARNING! Make sure to switch off the power supply before installing or maintaining the product! To avoid the risk of fire or electrical shock, please make sure you install the product following its electrical rating (AC220-240V). To avoid wiring damage or abrasion, do not expose the wire to edges of metal or other sharp objects. - Page 9 II. Pairing the receiver with Tellur Smart app Download and install the Tellur Smart app for either iOS or Android devices. Once downloaded, the app will ask you to register your device. Enter your email, select the country you live in and create a password for your Tellur Smart account.
- Page 10 Once Tellur Smart app is installed on your device and you have added your smart device to your app you will be able to control it. III. Clear all pairings Long press both pairing button and On/Off button for 5s until LED1 and LED2 flash once, which means the previous pairing is deleted.
- Page 11 / tablet and later with the Wi-Fi network. How to add device under EZ mode? 1. Make sure the LED indicator/light flashes quickly. 2. Make sure the phone is connected to WiFi. 3. Tap "Add device" in Tellur Smart app and enter the WiFi's network password.
- Page 12 How to add device under AP mode? 1. Make sure the LED indicator/light flashes slowly. 2. Tap "Add device" in Tellur Smart app and select "AP mode" from the top-right corner. Connect to the device's hotspot first and then proceed to connect it to the WiFi network.
- Page 13 Wiring diagram Dimensions and installation Desk mounting...
- Page 14 Wall mounting Receiver installation...
- Page 15 Alexa integration: 1. Go to Home menu on Alexa app. 2. Select "Skills" / "Skills & Games". 3. Type Tellur Smart in the search bar. 4. Select Tellur Smart and click "Enable" to activate Tellur Smart. Enter your Tellur Smart account and password.
- Page 16 • The device display language is set to English US. •You have the Tellur Smart app and a related account. Add devices in Tellur Smart app (refer to app instructions) – you can skip this part if you've already added some devices to your Tellur Smart account.
- Page 17 2. Hit the "Add new" button, enter Tellur Smart in the search bar and select the app from the list. Next, select your Tellur Smart account's region, enter your Tellur Smart account and password and tap "Link now". After you assign rooms for devices, your devices will be listed in the Home Control page.
- Page 18 DISPOSAL AND RECYCLING INFORMATION The crossed-out wheeled-bin symbol on your product, battery, literature or packaging reminds you that all electronic products and batteries must be taken to separate waste collection points at the end of their working lives; they must not be disposed of in the normal waste stream with household garbage.
- Page 19 We, ABN SYSTEMS INTERNATIONAL S.R.L., Bucharest, Sector 1, Marinarilor street, nr. 31, we declare on own responsibility that the product below: Product description: Tellur WiFi Thermostat, Boiler, white Brand: Tellur Product code: TLL331151 It does not endanger life, health, work safety, does not have...
- Page 20 EMC – 2014/30/EU EN 61000-6-3:2007 + A1:2011 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 61000-6-1:2007 RoHS – 2011/65/EU (RoHS 2.0) The product bears CE mark, applied in 2020 Place and date: Name: George Barbu Bucharest, 11-03-2020 Function: General manager Signed:...
