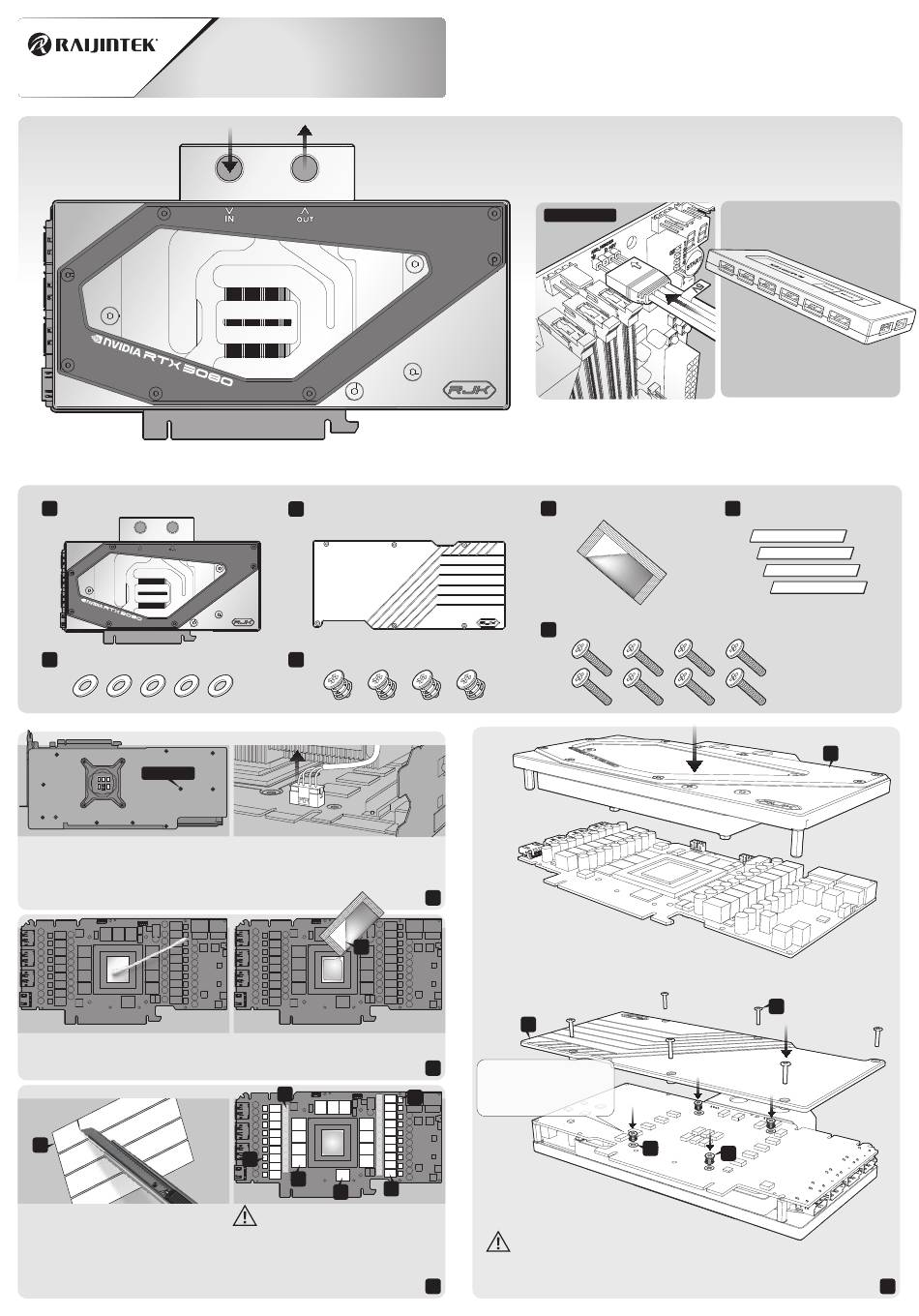

Raijintek SAMOS NV3080 RBW Instruction Manual

SAMOS SERIES LIQUID COOLING GRAPHIC CARD WATER BLOCK
IN
VGA water block × 1
A
Washers × 5
E
SCREW
Remove the screws circled on the
diagram. All Back-plate and Heat-sink
assembly screws should be removed
Clean the original thermal grease off
the GPU die and thermal pad.
D
Cut the thermal pads to place on the
heat-emanating chips.
SAMOS NV3080 RBW
OUT
Back plate × 1
B
M2.5 L6 screw × 4
F
Remove the power connector of fan,
and carefully detach the original stock
cooler
C
Apply Thermal grease on GPU evenly.
D
D
D
D
D
Precaution: Besides GPU that needs
to have thermal grease applied on it, the
heat emanating chip on the VGA card
also needs the thermal pads to be attached
on it, or the card will burn out.

Precautions

1.Keep and store the product away from the reach of children.
2.Check the component list and condition of the product
before installation. If there is any problem, contact the shop
where you purchased to get a replacement or refund.
3.RAIJINTEK Co., Ltd. is not responsible for any damages due
to external causes, including but not limited to, improper use,
problems with electrical power, accident, neglect, alteration,
repair, improper installation, and improper testing.
SAMOS NV3080 RBW
5V ARGB
Connect to MB 5V ADD Header
Thermal Grease × 1
C
M2.5 L10 screw for back plate × 8
G
1
Stick the VGA water block on the VGA card.
Align the screws onto the screw holes on the VGA card.
Pay attention to the pressure applied during installation.
Do not press the VGA water block and PCB board too hard.
B
2
Fasten the spring screw
from backside (Place the
insulation washer on the
D
screw hole)
Once installing VGA water
block is done, place the back plate
and fasten the screws on it.
Precaution: Fasten the screws until the VGA water block
is balanced. To avoid damaging the chip, do not fasten the screws
to the point where it cannot be screwed anymore.
3
4.GPU and VGA card are subject to damage if the product in
incorrectly installed.
5.This product is a water cooling solution device, once taken
apart or any use of non RAIJINTEK's accessories, will lead to
a warranty loss.
6.Liquid contaminations of other objects are in no matter
under warranty due to maintenance or possible misuse.
Compatible with RJK 5V DRGB-PWM
Control Hub
Thermal pad × 4
D
G
E
F
A
4
