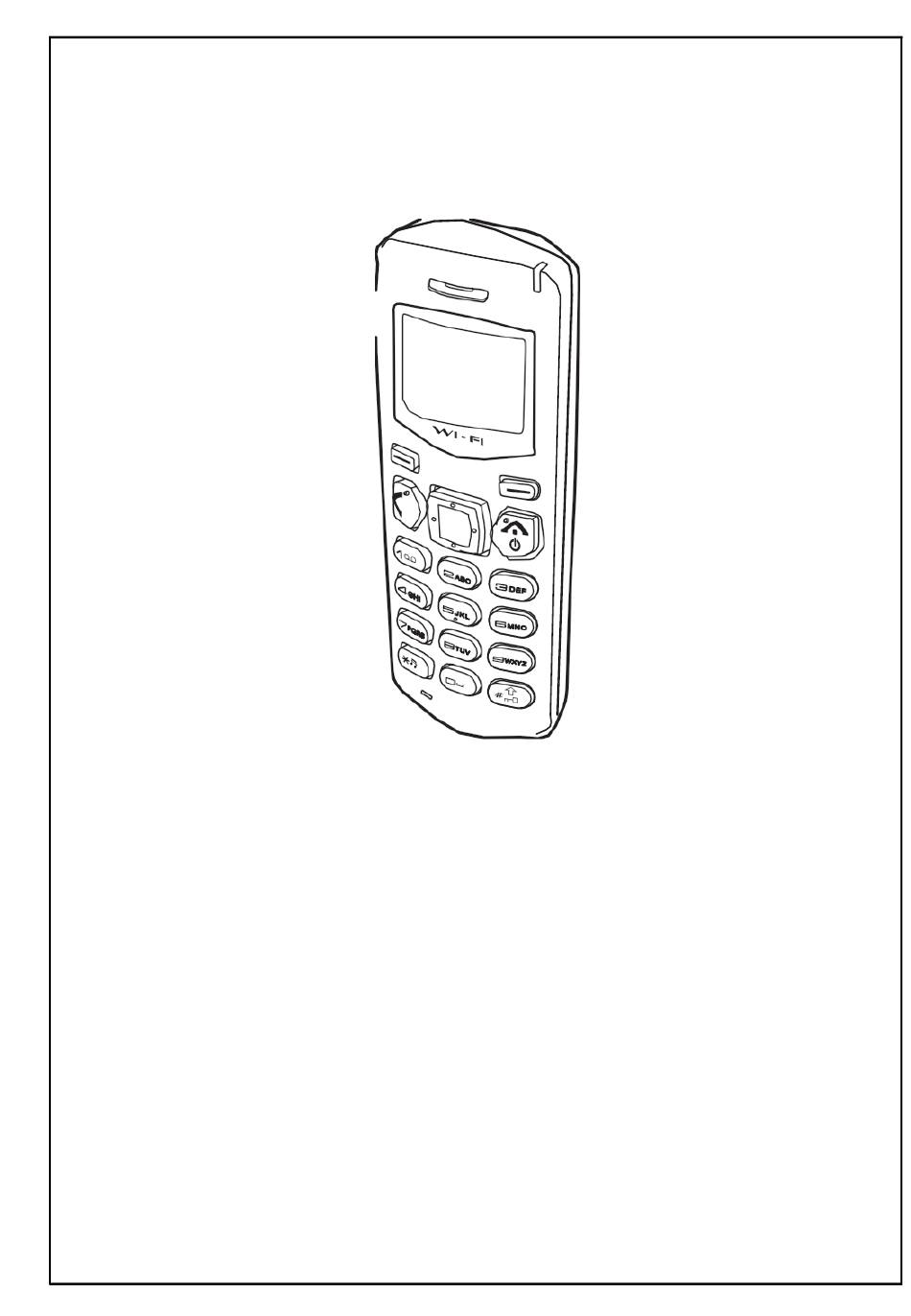

- Page 1 MIP-300 WiFi Phone User’s Manual v1.00...
- Page 2 Preface Regulatory Information FCC Regulation This model phone complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Rf Exposure Regulation (Sar)
If you do not use a body- worn accessory and are not holding the phone at the ear, position the handset a minimum of 1 cm from your body when the phone is switched on. Copyright © 2007 by G-TEK Electronic Group. All rights reserved. -
Page 4: Package Contents
This Wi-Fi phone enables you to make VoIP phone calls through IEEE 802.11 b/g/n wireless network. Read this user manual carefully to learn how to operate this product and take advantage of its features. Package Contents Charging Cradle (Optional) MIP-300 WiFi Phone Belt Clip AC Adapter Li-ion Battery... -
Page 5: Product Description
Product Description Item Description Receiver Transmits voice output Indicates charge status: Charge Status • Off—charger off • Red—charger on 112 x 64 pixel monochrome graphics LED Display display with LED backlight • Navigate through menus • Left—select Profile; decreas volume during a call •... - Page 6 Item Description • Display the Phone Book Right Soft Key • Clear inputs / cancel or Mute during a call • Power on or power off Power/Red Key • End conversation; exit (back) Numeric Key Enter numbers and text • Change text output in text mode. For example: AB, ab, 12, Ab.
-
Page 7: Getting Started
Getting Started Inserting the Battery To insert the battery into your phone, perform the following steps: 1. Slide off the battery compartment cover. 2. Insert the battery as shown, making sure the gold connectors are correctly aligned. 3. Replace the battery compartment cover until it clicks into place. -
Page 8: Charging Your Phone
Charging Your Phone Use AC power adapter to charge your phone. 1. Connect one end of the AC power adapter cable to the port at the rear of the cradle. 2. Plug the AC power adapter into your mains socket. 3. -
Page 9: The Lcd Screen
Navigating Phone Menus The LCD Screen See below for an overview of the layout of the LCD screen and its icons: Peer2Peer Ready 16:17 19-Nov-07 Menu Name The LCD screen elements are described in the table below: Indicator Description Displays the WiFi signal strength. The presence of five bars ( ) indicates the strongest signal and WiFi signal... -
Page 10: The Menu Screen
The Menu Screen From the main screen, press the Left soft key ( ) to enter the menu screen. Follow these tips to navigate through the menu and menu options. • Use the Navigation Pad ( ) to move around the screen. •... - Page 11 Menu Submenu Options English as the default lan- guage Language (with as many as six lan- guages) Tone Ring Settings Volume Set Time Time Format Time/Date Set Date Date Format Phone Settings Profile Settings New Profile Keypad Tone Audio Settings Range Warning Battery Low Handset name...
-
Page 12: Setting The Time And Date
4. Press the Left soft key ( The display language changes to the selected format. Setting the Time and Date To set the MIP-300 date and time, perform the following steps: 1. Press the Left soft key ( ) to display the main menu. -
Page 13: Installation
Installation The MIP-300 is suitable for home and office use and the setup procedure is similar, with the addition of Session Initiation Protocol (SIP) for office deployment. The two setup models are outlined below. Typical Home Setup The diagram shows a typical home setup using a local area network (LAN). -
Page 14: Basic Setup
Connection saved displays. The main screen is redisplayed with the con- nection type Peer2Peer in the Ready state. The MIP-300 is now connected to the AP and ready for use. For more information on configuring connection settings, refer to your AP User Manual. -
Page 15: Phone Settings
• Use the Navigation Pad ( ) to select the submenu items and options. Using the Phonebook Your MIP-300 Phonebook can hold up to 50 contacts which you can access quickly from the main screen by pressing the Right soft key ( ), or by... -
Page 16: Editing Contacts
5. Press the Left soft key ( ) again to confirm the delete operation. Using the Call Log The MIP-300 Call Log records call history in three submenus: • Received Calls—list all received calls, the most recent at the top of the screen. -
Page 17: Configuring Phone Settings
6. Press the Left soft key ( ) to confirm the action. Configuring Phone Settings You can use the MIP-300 Phone Settings menu to configure general handset settings as well as to reset the phone to factory defaults and upgrade the firmware. -
Page 18: Ringer Volume
Ringer Volume To set the ringer volume, perform the following steps: 1. Press the Left soft key ( ) to display the main menu. 2. Using the Navigation Pad ( ) to scroll and the Left soft key ( ) to select items, go to Phone Settings€... - Page 19 • Set Active—activate the profile you selected. 5. Press the Left soft key ( ) to save the new profile settings. For more information on SIP, Domain, Out Proxy, and STUN see the AP User Manual. Editing Existing Profiles To edit an existing profile, perform the following steps: 1.
-
Page 20: Display Settings
Display Settings You can set the display name and backlight duration time (in seconds) that the backlight remains on while the keypad is inactive using the Display Settings menu. Setting the Display Name To set the display name, perform the following steps: 1. -
Page 21: Master Reset
4. Press the Left soft key ( ) to save settings. Master Reset You can return the MIP-300 to the factory defaults using the Master Reset menu. To reset all phone settings, perform the following steps: 1. Press the Left soft key ( ) to display the main menu. - Page 22 ) to select items, go to Phone Settings€ Firmware Upgrade. 3. Using a USB to mini-USB cable, connect the MIP-300 to a computer with a presaved firmware file or internet access. 4. Press the Left soft key ( ) to execute firmware upgrades when the LCD displays Phone must be connected to computer.
- Page 23 6. Click Finish to exit the wizard when the window displays information about finishing installing the software for DFU (Device Firmware Upgrade) mode. 7. Locate and execute the DFU executable file ( ). A Device Firmware Upgrade window will show up. 8.
-
Page 24: Selecting Profiles
2. Using the Navigation Pad ( ) to scroll and the Left soft key ( ) to select items, go to Select AP. A list of local APs displays. 3. Using the Navigation Pad ( ) to scroll and the Left soft key ( ) to select items, choose the AP you want to connect to from the list. -
Page 25: Wps Registration
3. Using the Navigation Pad ( ) to scroll and the Left soft key ( ) to select items, choose the desired profile. Information If the phone is connected to an AP, you can display IP, AP, SIP, Firmware version and MAC address information using this submenu. -
Page 26: Making Calls
4. Press the Call key ( ) to dial the selected contact. Dialing Manually You can dial numbers manually from the MIP-300 keypad if the number is not registered in the Phonebook. Your MIP-300 supports calling to SIP names, regular phone numbers, and IP addresses. - Page 27 Dialing Regular Numbers To dial a regular number manually, perform the following steps: 1. From the main screen, press the Call key ( 2. Using the Navigation Pad ( ) to scroll to No. 3. Press the Left soft key ( ) and enter the desired number using the keypad.
