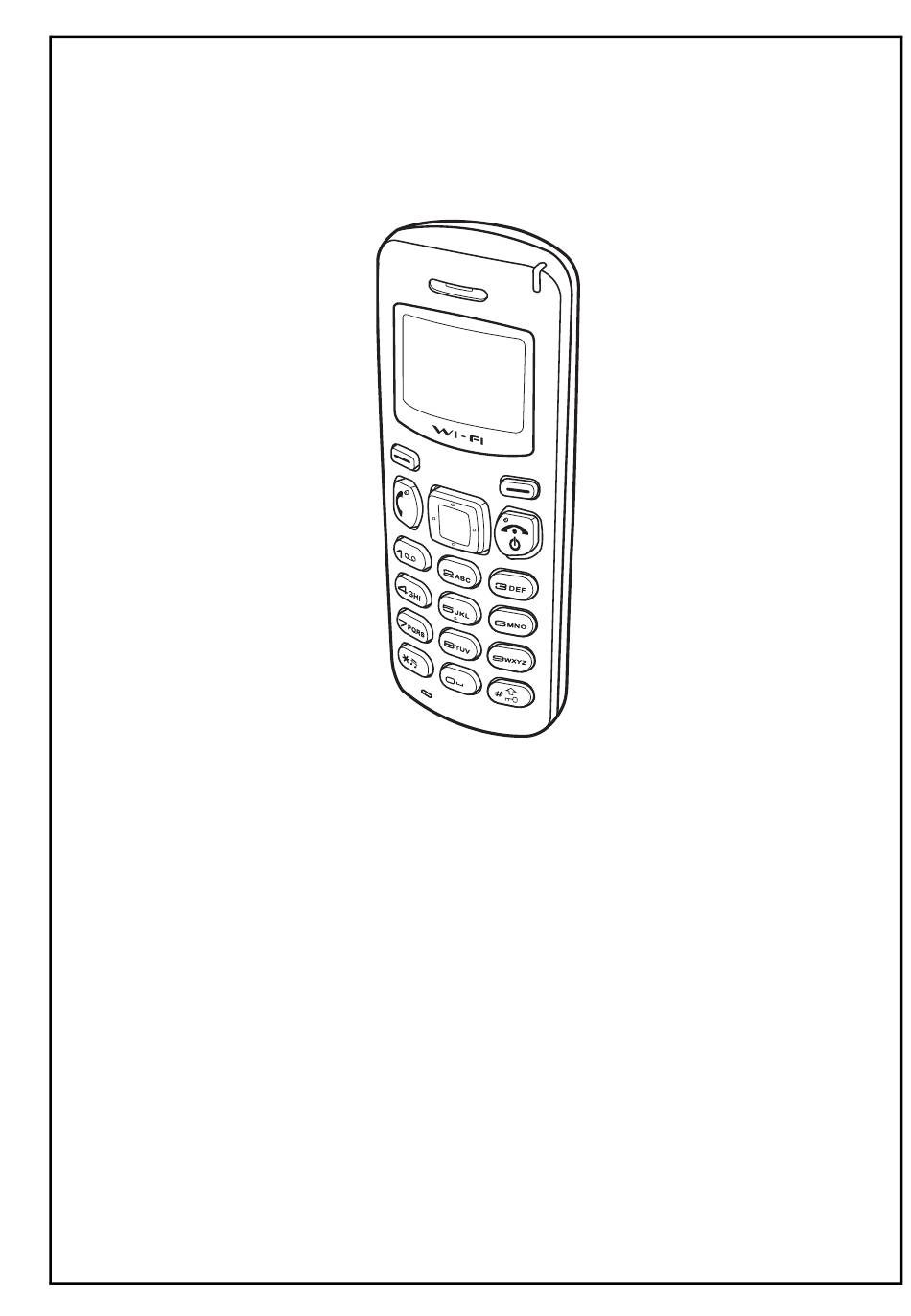

- Page 1 WiFi Phone User Manual MIP-200 WiFi Phone User’s Manual v1.00 Firmware V1.03g02 May 2008...
-
Page 2: Table Of Contents
WiFi Phone User Manual Table of Contents Preface ..............iii Regulatory Information ...........iii FCC Regulation ................iii European regulation ..............iv RF exposure regulation (SAR) ............iv Overview .............. 1 Package Contents ............1 Product Description ............2 Getting Started ............. 4 Inserting the Battery ............ - Page 3 WiFi Phone User Manual Profile Settings ................15 Creating Profiles ..............15 Editing Existing Profiles ............16 Enabling and Disabling Tones ..........16 Display Settings ................. 17 Setting the Display Name ............. 17 Setting the Backlight Duration ..........17 Configuring AP Settings ............. 17 Master Reset ................
-
Page 4: Preface
WiFi Phone User Manual Preface Regulatory Information FCC Regulation This model phone complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: European Regulation
If you do not use a body- worn accessory and are not holding the phone at the ear, position the handset a minimum of 1.5 cm from your body when the phone is switched on. Copyright © 2007 by G-TEK Electronic Group. All rights reserved. -
Page 6: Overview
WiFi Phone User Manual Overview Package Contents Charging Cradle (Optional) MIP-200 WiFi Phone Belt Clip AC Adapter Li-ion Battery... -
Page 7: Product Description
WiFi Phone User Manual Product Description Item Description Receiver Transmits voice output Indicates charge status: Charge Status • Off—charger off • Red—charger on 112 x 64 pixel monochrome graphics LED Display display with LED backlight • Navigate through menus • Left—select Profile; decreas volume during a call •... - Page 8 WiFi Phone User Manual Item Description • Display the Phone Book Right Soft Key • Clear inputs / cancel or Mute during a call • Power on or power off Power/Red Key • End conversation; exit (back) Numeric Key Enter numbers and text •...
-
Page 9: Getting Started
WiFi Phone User Manual Getting Started Inserting the Battery To insert the battery into your phone, perform the following steps: 1. Slide off the battery compartment cover. 2. Insert the battery as shown, making sure the gold connectors are correctly aligned. -
Page 10: Charging Your Phone
WiFi Phone User Manual Charging Your Phone Use AC power adapter to charge your phone. 1. Connect one end of the AC power adapter cable to the port at the rear of the cradle. 2. Plug the AC power adapter into your mains socket. -
Page 11: Navigating Phone Menus
WiFi Phone User Manual Navigating Phone Menus The LCD Screen See below for an overview of the layout of the LCD screen and its icons: Peer2Peer Ready 16:17 19-Nov-07 Menu Name The LCD screen elements are described in the table below: Indicator Description Displays the WiFi signal strength. - Page 12 WiFi Phone User Manual Indicator Description Press the Left soft key ( ) to execute the dis- Left Soft Key played command.
-
Page 13: The Menu Screen
WiFi Phone User Manual The Menu Screen From the main screen, press the Left soft key ( ) to enter the menu screen. Follow these tips to navigate through the menu and menu options. • Use the Navigation Pad ( ) to move around the screen. - Page 14 WiFi Phone User Manual Menu Submenu Options English as the default lan- guage Language (with as many as six lan- guages) Tone Ring Settings Volume Set Time Time Format Time/Date Set Date Date Format Phone Settings Profile Settings New Profile Keypad Tone Audio Settings Range Warning...
-
Page 15: Settings The Display Language
4. Press the Left soft key ( The display language changes to the selected format. Setting the Time and Date To set the MIP-200 date and time, perform the following steps: 1. Press the Left soft key ( ) to display the main menu. -
Page 16: Installation
WiFi Phone User Manual Installation The MIP-200 is suitable for home and office use and the setup procedure is similar, with the addition of Session Initiation Protocol (SIP) for office deployment. The two setup models are outlined below. Typical Home Setup... -
Page 17: Basic Setup
Connection saved displays. The main screen is redisplayed with the con- nection type Peer2Peer in the Ready state. The MIP-200 is now connected to the AP and ready for use. For more information on configuring connection settings, refer to your AP User Manual. -
Page 18: Phone Settings
• Use the Navigation Pad ( ) to select the submenu items and options. Using the Phonebook Your MIP-200 Phonebook can hold up to 50 contacts which you can access quickly from the main screen by pressing the Right soft key ( ), or by... -
Page 19: Editing Contacts
5. Press the Left soft key ( ) again to confirm the delete operation. Using the Call Log The MIP-200 Call Log records call history in three submenus: • Received Calls—list all received calls, the most recent at the top of the screen. -
Page 20: Configuring Phone Settings
6. Press the Left soft key ( ) to confirm the action. Configuring Phone Settings You can use the MIP-200 Phone Settings menu to configure general handset settings as well as to reset the phone to factory defaults and upgrade the firmware. -
Page 21: Ringer Volume
WiFi Phone User Manual Ringer Volume To set the ringer volume, perform the following steps: 1. Press the Left soft key ( ) to display the main menu. 2. Using the Navigation Pad ( ) to scroll and the Left soft key ( ) to select items, go to Phone Settings Ringer Settings. - Page 22 WiFi Phone User Manual • Set Active—activate the profile you selected. 5. Press the Left soft key ( ) to save the new profile settings. For more information on SIP , Domain, Out Proxy, and STUN see the AP User Manual.
-
Page 23: Editing Existing Profiles
WiFi Phone User Manual Editing Existing Profiles To edit an existing profile, perform the following steps: 1. Press the Left soft key ( ) to display the main menu. 2. Using the Navigation Pad ( ) to scroll and the Left soft key ( ) to select items, go to Phone Settings Profile Settings. -
Page 24: Display Settings
WiFi Phone User Manual Display Settings You can set the display name and backlight duration time (in seconds) that the backlight remains on while the keypad is inactive using the Display Settings menu. Setting the Display Name To set the display name, perform the following steps: 1. -
Page 25: Master Reset
4. Press the Left soft key ( ) to save settings. Master Reset You can return the MIP-200 to the factory defaults using the Master Reset menu. To reset all phone settings, perform the following steps: 1. Press the Left soft key ( ) to display the main menu. - Page 26 ) to select items, go to Phone Settings Firmware Upgrade. 3. Using a USB to mini-USB cable, connect the MIP-200 to a computer with a presaved firmware file or internet access. 4. Press the Left soft key ( ) to execute firmware upgrades when the LCD displays Phone must be connected to computer.
-
Page 27: Selecting Aps
WiFi Phone User Manual 6. Click Finish to exit the wizard when the window displays information about finishing installing the software for DFU (Device Firmware Upgrade) mode. 7. Locate and execute the DFU executable file ( ). A Device Firmware Upgrade window will show up. -
Page 28: Scanning For Aps
WiFi Phone User Manual 2. Using the Navigation Pad ( ) to scroll and the Left soft key ( ) to select items, go to Select AP . A list of local APs displays. 3. Using the Navigation Pad ( ) to scroll and the Left soft key ( ) to select items, choose the AP you want to connect to from the list. -
Page 29: Information
WiFi Phone User Manual 3. Using the Navigation Pad ( ) to scroll and the Left soft key ( ) to select items, choose the desired profile. Information If the phone is connected to an AP , you can display IP , AP , SIP , Firmware version and MAC address information using this submenu. -
Page 30: Wps Registration
WiFi Phone User Manual WPS Registration Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of a wireless home network, created by the Wi-Fi Alliance and officially launched on January 8, 2007. The goal of the WPS protocol is to simplify the process of connecting any home device to the wireless network, and so it was first named 'Wi-Fi Simple Config'. -
Page 31: Making Calls
4. Press the Call key ( ) to dial the selected contact. Dialing Manually You can dial numbers manually from the MIP-200 keypad if the number is not registered in the Phonebook. Your MIP-200 supports calling to SIP names, regular phone numbers, and IP addresses. -
Page 32: Dialing Regular Numbers
WiFi Phone User Manual Dialing Regular Numbers To dial a regular number manually, perform the following steps: 1. From the main screen, press the Call key ( 2. Using the Navigation Pad ( ) to scroll to No. 3. Press the Left soft key ( ) and enter the desired number using the keypad.
