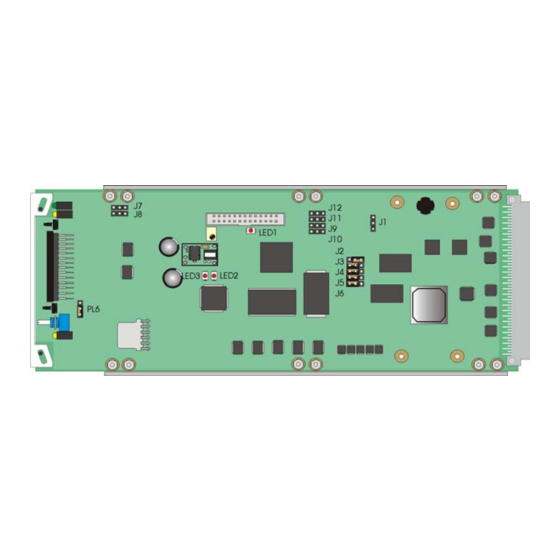

- Page 1 SW221 3G 3G/HD/SD 2 x 2 switch Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England. Tel: +44(0) 1223 497049 Fax: +44(0) 1223 497059 sales@crystalvision.tv www.crystalvision.tv...
-
Page 2: Table Of Contents
Crystal Vision SW221 3G User Manual Contents Introduction Hardware installation Module configuration Rear modules and signal I/O Rear module connections with RM53 Rear module connections with RM54 General Purpose Interface (GPI) Card edge operation Card edge controls Card edge buttons... - Page 3 Crystal Vision SW221 3G User Manual Statesman Statesman operation Status Switch Trouble shooting Basic fault finding guide Specification Revision 1. Routing reconfigured and GPI controls added. 01-11-10 Revision 2. GPI control table added to page 6. 07-12-10 Revision 3. Output 2 switch selection amended. Pages 12 & 18.
-
Page 4: Introduction
Space-saving: 100mm x 266mm module allowing 24 SW221 3G in 4U The SW221 3G fits in Crystal Vision’s four standard frames and can be integrated with any boards from the company’s full product range. The RM53 and RM54 are the frame rear modules. -
Page 5: Hardware Installation
The SW221 3G single height module uses the RM53 and RM54 rear connectors, and will fit into all of the Crystal Vision rack frames. All modules can be connected or removed while the frame is powered, without damaging the board. -
Page 6: Rear Modules And Signal I/O
Crystal Vision Hardware installation 2.2 Rear modules and signal I/O The 4U Indigo 4 frame will house up to 24 single height modules with up to three power supplies. The 2U Indigo 2 frames will house up to 12 single height modules and dual power supplies. -
Page 7: General Purpose Interface (Gpi)
Crystal Vision Hardware installation 2.3 General Purpose Interface (GPI) Each frame slot has up to six connections ‘a-f ‘for GPI control and monitoring. These connections are available at the rear of the frame on the 26-way D-Type remote connectors. Low (<1V) - Page 8 Crystal Vision Hardware installation Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin 8 (5) 9 (5) 18 (5) 26 (5) 19 (6) 20 (6) 7 (5) 16 (5) 17 (5) 25 (5) 10 (6)
- Page 9 Crystal Vision Hardware installation 1U frame GPI connections GPI lines ‘a’ to ‘f’ of each card connect to one of two rear remote connectors as follows: Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin...
-
Page 10: Card Edge Operation
Crystal Vision Card edge operation 3 Card edge operation The card front is provided with a 10-digit display and push switches to navigate the control and status menus. LEDs are provided to give indication of power rail monitoring and the switch configuration. -
Page 11: Reading Card Edge Leds
Crystal Vision Card edge operation 3.4 Reading card edge LEDs Card edge LEDs may be used in conjunction with status information from any connected remote status panel display or from Statesman if available. Refer also to the trouble-shooting chapter for more help with solving problems and monitoring status information. -
Page 12: Card Edge Configuration
Crystal Vision Card edge operation 3.6 Card edge configuration Menu tree Tip: To reach the top menu push the button repeatedly until a top menu is reached. Rotate the SCROLL control anti-clockwise until the Status menu appears. Status menu From the Status top menu press ENTER then SCROLL to access the Status menu list. -
Page 13: Control Menu
Crystal Vision Card edge operation Control menu From the Status top menu rotate SCROLL to display the Control menu. Press ENTER to enter the Control menu and rotate SCROLL to show the available options. To select an option press ENTER, this will cause the display text to change from a normal font to an italic font showing the option has been selected. - Page 14 Crystal Vision Card edge operation Rotate the Scroll/Adj. control to show Output B GPI control menu. Press ENTER and rotate Scroll/Adj. to select. Output B GPI No GPI control, tally on “d”. Level on “c”, tally on “d”. control Edge on “c”, tally on “d”. Edge on “c” & “d”, tally on “c” & “d”.
- Page 15 Crystal Vision Card edge operation Factory Defaults Factory defaults will return all parameters to their factory values. Parameter Default value Auto switch Output A Auto switch Output B Routing Output A Input 1 Routing Output B Input 1 Output switch timing...
-
Page 16: Using The Front Control Panel
4.1 Module selection This operational guide assumes that the panel has been set up according to the panel setup procedure described in the Crystal Vision Control Panel manual. Note: It is ESSENTIAL that the panel set up procedure is followed and any old or unknown passwords cleared prior to using the panel for the first time. - Page 17 Crystal Vision Using the front control panel Note: Please refer to the Crystal Vision Control Panel manual for details of the Panel Set up, Lock Panel and Diagnostic menus. Selecting a SW221 3G To select a particular card in a frame, press the DEVICE key to go to the Device menu.
-
Page 18: The Sw221 3G Active Panel Menu Structure
Crystal Vision Using the front control panel 4.2 The SW221 3G active panel menu structure At any time the main top-level menu (Home) is obtained by pressing the HOME key. From the Home menu further selections can be made. Active function keys are indicated by illuminated, integrated LEDs. -
Page 19: Status Menu
Crystal Vision Using the front control panel Status menu Pressing button F1 from the Home menu will enter the Status menu. This menu is traversed by rotating the shaft control. No changes can be made from this menu as it is read only. - Page 20 Crystal Vision Using the front control panel Output A Rotate the shaft control to view the Automatic Switch selection. Automatic Press F2 to select. Rotate the shaft control to make selection. switch selector Yes, No. Output B Rotate the shaft control to view the Automatic Switch selection.
- Page 21 Crystal Vision Using the front control panel Switch back Once a switch has taken place automatic switch back will be controlled by the switch back control. Immediate mode will allow the switch to return once the error has disappeared for a minimum of one frame.
-
Page 22: Statesman
Statesman 5 Statesman The Crystal Vision Statesman PC control software is designed to control a range of Crystal Vision modules via serial control from a PC. Statesman provides a user friendly means of configuring and operating Crystal Vision modules with the benefit of “see-at-a-glance” status monitoring. -
Page 23: Status
Crystal Vision Statesman Status The status tab is divided into two group boxes, status and switch. The information is presented as either text or by simulated LED. The colour of the LED will depend on the type and priority of the information being conveyed, red will indicate a high priority such as lack of input video, amber gives a warning and green will indicate a signal presence. - Page 24 Crystal Vision Statesman Switch controls The switching mode is configured by adding a check mark to the appropriate switch panel radio button. In Immediate mode SW221 3G will act immediately on any error conditions that meet the switching criteria. An immediate switch will be an untimed crash switch and will likely cause a picture disturbance.
- Page 25 Crystal Vision Statesman GPI configuration The GPI inputs can be used to control input selection/routing are configurable for either edge or level trigged. They can also be used to give a tally of the selection/routing. When GPI control is selected to ‘level’ GPI = High (floating) selects Input 1 and GPI = Low (pulled to ground) selects Input 2.
-
Page 26: Trouble Shooting
Crystal Vision Trouble shooting 6 Trouble shooting The card edge may be used to perform simple trouble shooting. The Statesman PC control system can be used for more comprehensive trouble shooting. The following table summarises the card edge LED functions and colours:... -
Page 27: Basic Fault Finding Guide
Crystal Vision Trouble shooting Basic fault finding guide The Power LEDs are not illuminated Check that the frame PSU is functioning – refer to the appropriate frame manual for detailed information There is no video output Check that a valid SDI is present and that any cabling is intact... -
Page 28: Specification
Crystal Vision Specification 7 Specification General Dimensions 100mm x 266mm module with DIN 41612 connector Weight 155g Power consumption 11 W Inputs Video HD or SD SDI 270Mb/s to 2.970Gb/s serial digital compliant to SMPTE-259M, SMPTE-292M SMPTE-424M Cable equalisation, 3G (2.970Gb/s) – 80 metres, Belden 1694 or equivalent HD (1.485Gb/s) –...
