Summary of Contents for Giada DN76

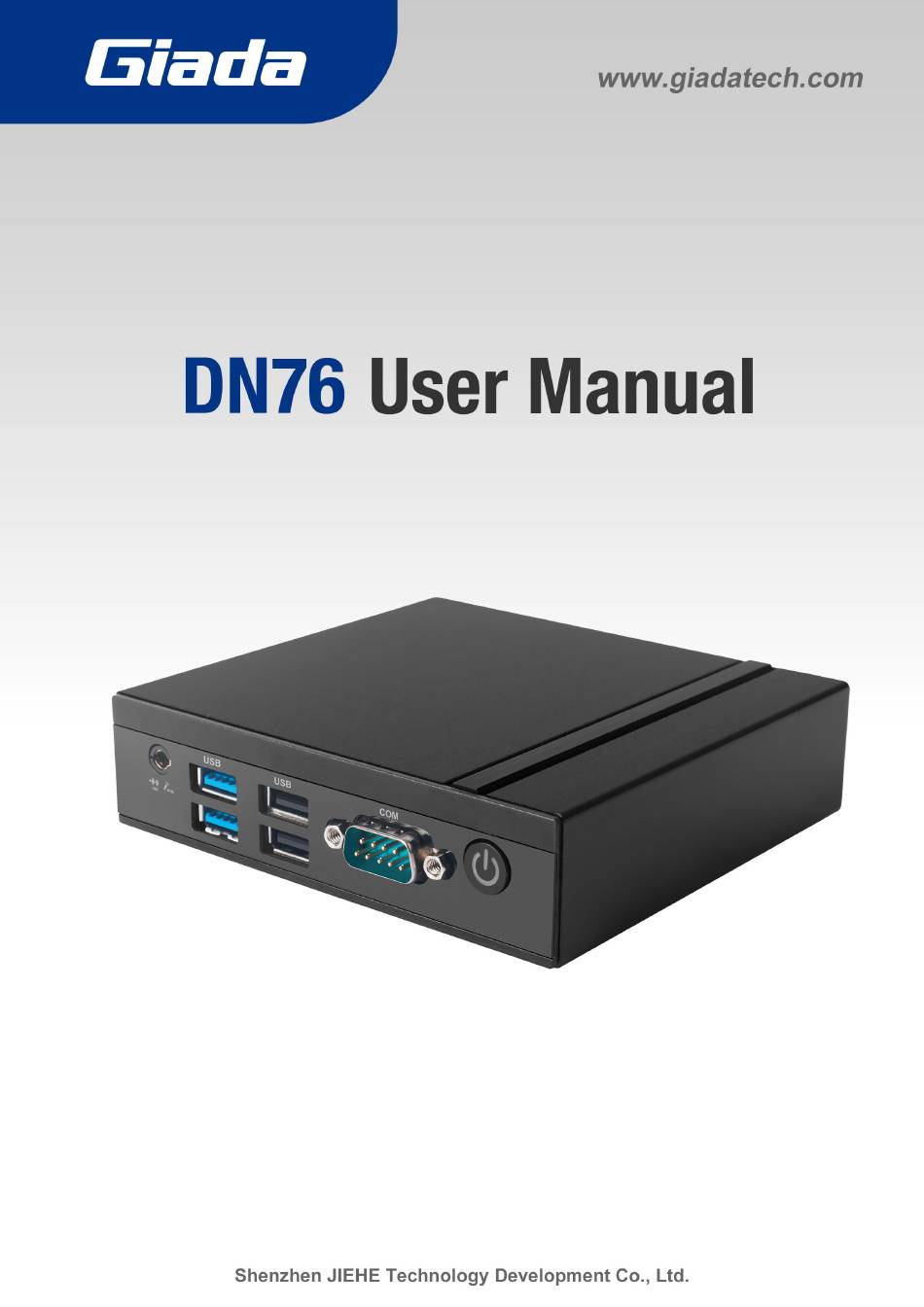

  • Page 1 - 1 -...
  • Page 2 Statement The copyright of this manual belongs to Shenzhen JIEHE Technology Development Co., Ltd. (Giada, JIEHE’s global brand) and all rights are reserved. The company reserves the right to change this manual at any time without notification. Specifications here are for reference only, please take the real product as standard.

  • Page 3: Table Of Contents

    5.1 Preparation ....................8 5.2 Upgrade the firmware.................. 8 5.2.1. Install the driver in your host PC by following steps ...... 8 5.2.2. Connect the DN76 with host PC ............8 5.2.3. Start the firmware updating .............. 9 6. JAHC APP ...................... 11 5.1 JAHC APP function ...................

  • Page 4: Product Introduction

    Giada DN76 is powered by RK3568 quad-core Cortex-A55 processor. With Mali-G52 GPU, DN76 can support a 4K video and a 1080P video playback simultaneously. DN76 can support up to two screen output, with an HDMI2.0 and an HDMI1.4 display ports, and it also supports both landscape &...

  • Page 5: Hardware Specifications

    2.2 Hardware Specifications DN76 Giada DN76-3568R41E4G-GIA Rockchip RK3568, 4 Cores Cortex-A55 Processor Frequency 2.00 GHz Chipset Type DDR4 Memory Socket Onboard Capacity 2GB (Optional: 4G) ARM Mali-G52 Graphic Engine OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 Graphics 1 x HDMI (Max. 4096 x 2160 @60 Hz) (CEC) HDMI 1 x HDMI (Max.

  • Page 6: Accessories Installation Steps

    3. Accessories Installation Steps For safety reasons, please ensure that the power cord is disconnected before opening the case. How to open bottom cover Unscrew the four screws and remove the bottom cover. (mini PCIE slot for 3G/4G and SIM card slot are on this side) 3.1 3G/4G Installation Default SMA connector and cable is for WIFI.

  • Page 7: Sim Card Installation

    3.2 SIM Card Installation This product supports standard SIM card with the size of 25mm × 15mm. 1. [Open] the SIM card holder and pull it up. 2. Insert the SIM card. 3. [Lock] the card holder. - 6 -...

  • Page 8: How To Play Different Videos On Two Screens

    4. How to play different videos on two screens The two HDMI ports on DN76 support clone mode, but you can play different videos on two screens by following setup: a. Install two different video player apps which support 4K decoding in DN76.

  • Page 9: Upgrade The Firmware

    After you get the Archive from Giada technical support, copy the Archive to your host PC, you will find below files inside: Android Tool - tool for updating  DN76 Firmware image.  DriverAssitant - tool to install drivers and firmware image file ...

  • Page 10: Connect The Dn76 With Host Pc

    Please ensure that the power of the DN76 player is disconnected. b. Run RKAndroid tool V2.93 under the windows of the host PC. c. Connect the DN76 player to the host PC via usb OTG port (please refer to Fig 1 for location of the OTG port).

  • Page 11: Start The Firmware Updating

    ( Fig1) (Fig2) 5.2.3. Start the firmware updating. a. Click “Firmware” button and specify the path to the firmware file which is stored in the host PC (Please refer to Fig2). b. Wait around 5 seconds to upload the program, FW information will display on the screen. After the “Upgrade”...

  • Page 12: Jahc App

    6.1 JAHC APP functions The user can set up automatic startup and shutdown, one week as a circle. 6.2 Startup(open) & shutdown(close) time setup System Requirements: Giada player with JAHC APP function.  Android OS includes JAHC APP（please refer to Fig1）. ...
  • Page 13 Fig1 a. After enter the android desktop, click the JAHC APP icon and the JAHC interface will pop up (please refer to Fig2) Fig2 b. Click ‘New’ button to set open time (Fig3) and then click Close time button to set close time. One week as a circle, maximum 3 schedules per day.
  • Page 14 Fig3 Fig4 Fig5 Caution: If the interval from shutdown time to next resume time is less than 3 minutes, the system will not shut down. - 13 -...

  • Page 15: Adb Sop

    7.1 Use command ADB version to check if Windows ADB tool is installed. 7.2 Install Rock chip driver. a. Connect DN76 with OTG cable to windows PC host. b. Select ‘Connect to PC’ under android OS->Settings->USB->connect to PC. c. Then you can use ADB shell command to enter ADB.
  • Page 16 - 15 -...
