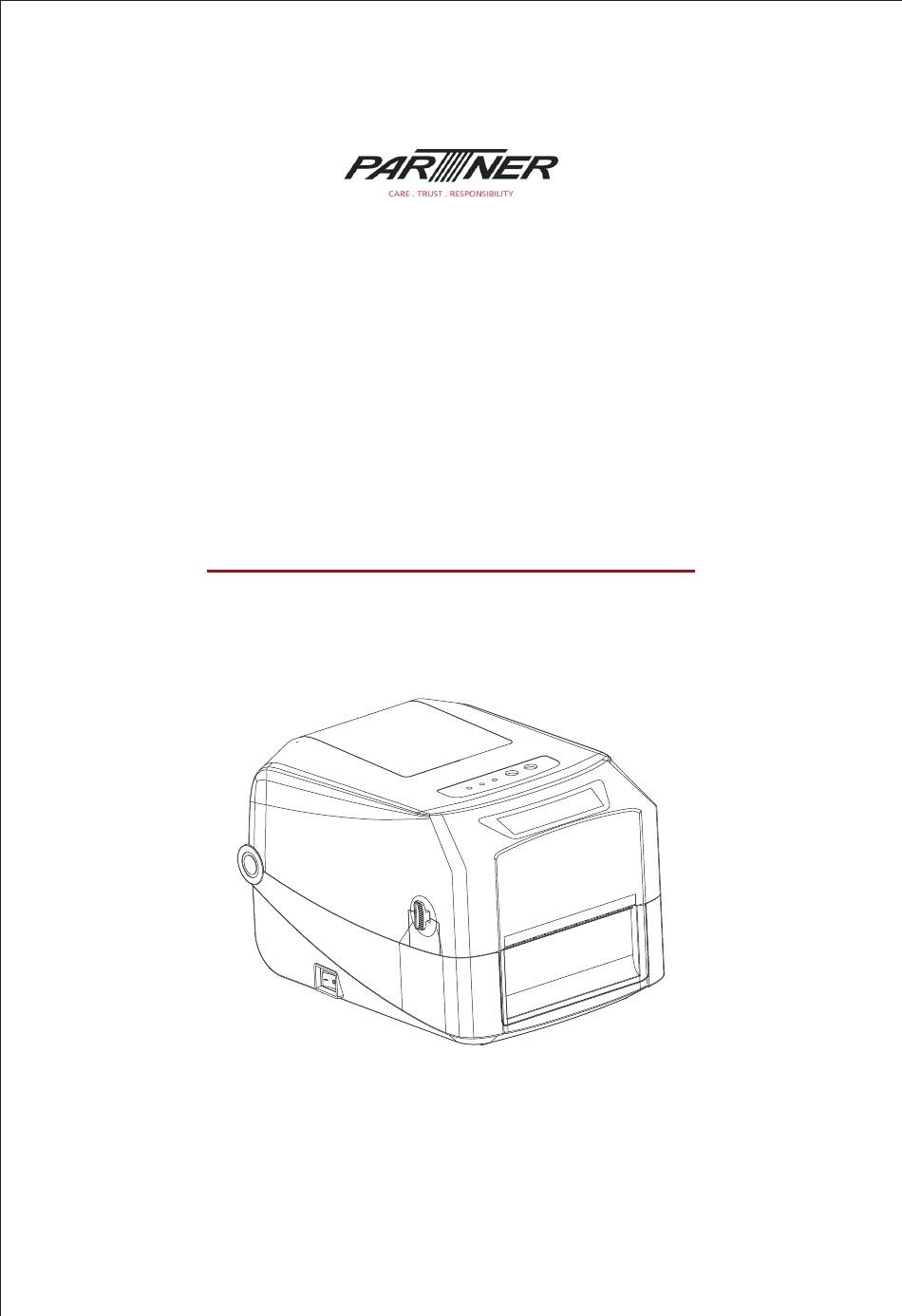

- Page 1 LP-1625 Thermal Transfer Barcode Printer User Manual Specification is subject of change without prior notice.
-
Page 2: Table Of Contents
LP-1625 Manual CONTENTS The printer Introduction Product features Standard equipment 1.2.1 1.2.2 Optional accessories Specifications Print specifications Ribbon specifications The paper size Product introduction Open and check Printer components Appearance 2.2.1 Internal 2.2.2 The bottom 2.2.3 Installation Install the printer... -
Page 3: The Printer
LP-1625 Manual The printer Introduction Thanks for choosing LP-1625 series direct thermal and thermal transfer label printer.h This series printer is built with 2 sets of gear to drive motor, with capability of handling 300 meters long ribbon and large label roll. Printer inner volume is fit for 5" OD (Outer Diameter) paper roll, if using external paper holder, you can install 8.4"OD industrial grade label roll. -
Page 4: Product Features
LP-1625 Manual Product features Standard equipment Product standard Ribbon printing Thermal printing ABS plastic housing Gap sensor Ribbon sensor The print head open sensor Communication interface Memory Memory The paper key and LED indicating lamp Built in 8 dot matrix font English number The character and the bar code can be printed in four directions of rotation (0,90,180,270) degree. -
Page 5: Print Specifications
LP-1625 Manual Print specifications Model LP-1625 Emulation 341625001 with cutter, TSPL emulation 341625002 without cutter, TSPL emulation 341625003 with cutter, ZPL emulation 341625004 without cutter, ZPL emulation The print head Print mode Ribbon / thermal (the size) (width X length) -
Page 6: Product Introduction
LP-1625 Manual Product introduction Open and check This series printer is with special package to prevent damage in transportation If there is any unexpected damage occurred, please put in clean and stable surface and carefully open the package to check, inform local distributor with damage details, and keep packing mate -rials well in case you need to mail the printer. -
Page 7: Printer Components
LP-1625 Manual Printer components 2.2.1 Appearance LED lights indicate: ★ ON LINE electric lamp ★ ★ ERROR error lamp RIBBON ribbon status light PAUSE button LED indicator Cover-open button FEED button... -
Page 8: Internal
LP-1625 Manual 2.2.2 Internal Top cover Print media Ribbon take-up hub Ribbon take-up running wheel Print head open button Label paper fixing stand Parallel Port Power port Bottom cover ( DIP switch inside) Serial port Ethernet port USB port External paper entrance... -
Page 9: Installation
LP-1625 Manual Installation Install the printer 1. Please put the printer on the stable surface. 2. Make sure printer power is turned off please do not plug the power cable when the printer power is turned on. 3. Connect serial or USB or Parallel or Ethernet cable to printer and PC. -
Page 10: Installation Of Paper
LP-1625 Manual Ribbon installation diagram Empty ribbon roll Print head Ribbon Paper guide Print media Gap & black ark sensor Installation of paper Installation of paper 3.3.1 Print media Loading 1.Press two buttons on printer two sides to lift and open the cover. -
Page 11: Led Indicator Function
LP-1625 Manual Paper installation diagram Empty ribbon roll Print head Ribbon Paper guide Print media Gap & black ark sensor LED Indicator and Function There’re two buttons and three LED indicators, many functions can be realized through using different button, indicator and power on/off switch. -
Page 12: Button Function
LP-1625 Manual Button Function Feed When the printer is ready (LED blue fixed), click the button, label paper into the front end of a paper label. Print job timeout The printer in the print, click the PAUSE button to print suspended. At this time power indicator is blue flashing. - Page 13 LP-1625 Manual Skip AUTO.BAS program User can use command to save a code auto- runn TSPL2 -ing file (AUTO BAS) into flash. When turn on printer, prin -ter will run the program automatically. If you want to skip AUTO . BAS program on power-up,...
-
Page 14: Troubleshooting
LP-1625 Manual Troubleshooting Common problem Below the table of contents is generally the common problems and solutions; if you have been in our proposed methods of eliminating the fault, and the printer is not normal operation, so check with your purchase customer service department, so as to get more help. - Page 15 LP-1625 Manual Ribbon printing side wrong Check and re-install ribbon to make installed sure printing side touch label paper Print head not clean Clean print head and print again Print density setting wrong Suggest density set to be 7 Not printing...
-
Page 16: Maintenance
LP-1625 Manual Maintenance 6.1.Printer Cleaning To ensure the printing quality, please proceed this maintenance section to keep your printer in good conditions and extend its life as well . Please use one of following material to clean the printer. ★ Cotton swab ★... - Page 17 Partner Tech Europe GmbH Add:Fasanenweg 25, 22145 Hamburg...
