SENTRONIC M-SYSTEM M6D Series Quick Start Manual

Euro Terminal Ultra-Slim Signal Conditioners M6D Series
2-INPUT MATH FUNCTION MODULE
(PC programmable)
Functions & Features
• 5.9-mm wide ultra-slim design
• Low profile allows the M6D module mounted in a 120-mm
deep panel
• 2-input math functions and signal selector functions
• PC programmable
• High-density mounting
• Power indicator LED

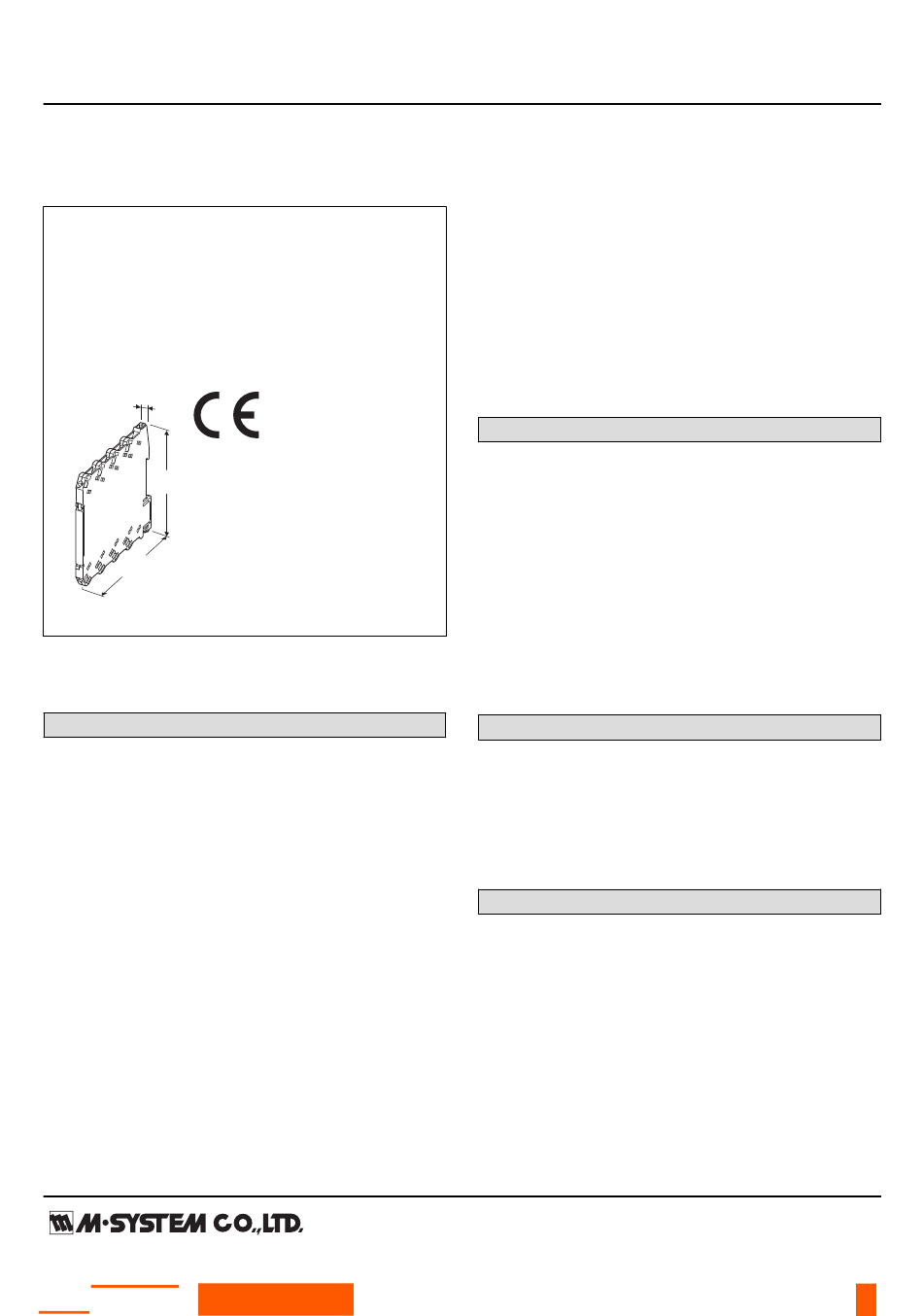

5.9 (.23)
94
(3.70)
102
(4.02)
mm (inch)
MODEL: M6DXF2-[1][2][3]-R
ORDERING INFORMATION
• Code number: M6DXF2-[1][2][3]-R
Specify a code from below for each [1] through [3].
(e.g. M6DXF2-S2Z1Z1-R)
• Input 1 range (e.g. 1 – 5 V DC)
• Input 2 range (e.g. 4 – 20 mA DC)
• Output range (e.g. 4 – 20 mA DC)
[1] INPUT 1
Current
Z1: Range 0 – 50 mA DC (Input resistance 24.9 Ω)
Voltage
S1: Range -1000 – +1000 mV DC (Input resistance 1 MΩ min.)
S2: Range -10 – +10 V DC (Input resistance 1 MΩ min.)
(Configurator software is used to change the input type and
precise range.)
[2] INPUT 2
Same range availability as Input 1
(Configurator software is used to change the input type and
precise range.)
SEN TRONIC
AG
Produkte, Support und Service
[3] OUTPUT
Current
Z1: Range 0 – 20 mA DC
Voltage
V2: Range -10 – +10 V DC
V3: Range -5 – +5 V DC
(Configurator software is used to change the output type
and precise range.)
POWER INPUT
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)
FUNCTIONS
PC Configurator Software is used to change function type.
Math Functions:
Temperature compensation (w/o square root extraction)
Temperature compensation (with square root extraction)
Pressure compensation (w/o square root extraction)
Pressure compensation (with square root extraction)
Addition / Subtraction
Multiplication
Division
Signal Selector Functions:
High selector
Low selector
RELATED PRODUCTS
• PC configurator software (model: M6CFG)
Downloadable at M-System's web site.
A dedicated cable is required to connect the module to the
PC. Please refer to the internet software download site or
the users manual for the PC configurator for applicable
cable types.
GENERAL SPECIFICATIONS
Connection
Input and output: Euro terminal (torque 0.3 N·m)
Power input: Via the Installation Base (model: M6DBS)
or Euro terminal (torque 0.3 N·m)
Applicable wire size: 0.2 to 2.5 mm
Housing material: Flame-resistant resin (black)
Isolation: Input 1 or input 2 to output to power
No isolation between the inputs. Maintain
the same potential level at both inputs.
Overrange output: -2 – +102 %
(Negative current output is not available.)
Zero adjustment: -2 to +2% (PC programming)
Span adjustment: 98 to 102% (PC programming)
Rugghölzli 2 Tel. +41 (0)56 222 38 18
CH - 5453 Busslingen Fax +41 (0)56 222 10 12
MODEL: M6DXF2
