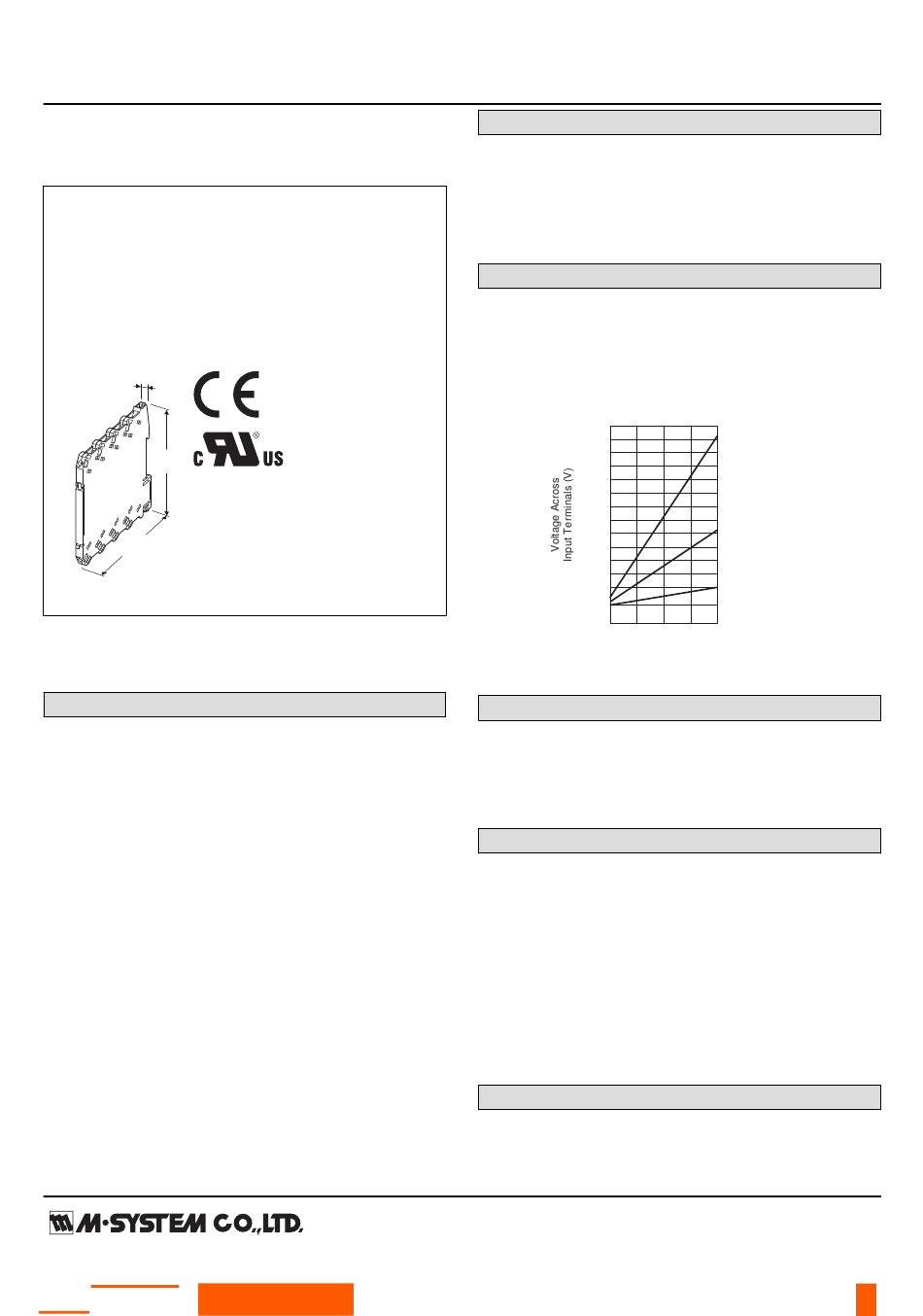

SENTRONIC M-SYSTEM M6D Series Quick Start Manual

Euro Terminal Ultra-Slim Signal Conditioners M6D Series
INPUT LOOP POWERED ISOLATOR
Functions & Features
• 5.9-mm wide ultra-slim design
• Low profile allows the M6D module mounted in a 120-mm
deep panel
• Loop-powered design eliminates output loop power supply
• Two isolators housed in one enclosure
• High-density mounting
• UL approval
5.9 (.23)
94
(3.70)
102
(4.02)
mm (inch)
MODEL: M6DSN–[1]DD[2]

ORDERING INFORMATION

• Code number: M6DSN-[1]DD[2]
Specify a code from below for each [1] and [2].
(e.g. M6DSN-2DD/UL)
[1] NO. OF CHANNELS
1: 1 channel
2: 2 channels
INPUT
Current
D: 0 – 20 mA DC (4 – 20 mA DC)
OUTPUT
Current
D: 0 – 20 mA DC (4 – 20 mA DC)
[2] OPTIONS
STANDARDS & APPROVALS
blank: CE marking
/UL: UL approval (CE marking)
SEN TRONIC
AG
Produkte, Support und Service

GENERAL SPECIFICATIONS

Connection: Euro terminal (torque 0.3 N·m)
Applicable wire size: 0.2 to 2.5 mm
Housing material: Flame-resistant resin (black)
Isolation: Input to output, between channels
Span adjustments: ±0.5 % (front)
INPUT & OUTPUT
Equivalent input impedance: 250 Ω plus load resistance
with 20 mA input
Operational range: 0.05 – 40 mA DC (Accuracy is assured
within 0.05 – 22 mA)
Minimum operating current: 0.05 mA
Load resistance: 0 – 600 Ω
Installation
Operating temperature: -20 to +55°C (-4 to +131°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Mounting: Installation Base (model: M6DBS) or DIN rail
Weight: 60 g (2.1 oz)
PERFORMANCE in percentage of span
Accuracy: ±0.1 %
Temp. coefficient: ±0.015 %/°C (±0.008 %/°F)
Response time: Approx. 20 msec. (0 – 90 %)
Load effect: (factory-calibrated with 250 Ω load)
0.004%/Ω (0 – 600 Ω)
Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength:
1500 V AC @1 minute (input to output)
2000 V AC @1 minute (between channels)
2000 V AC @1 minute (input or output to ground)
STANDARDS & APPROVALS
CE conformity:
EMC Directive (2004/108/EC)
EN 61000-6-4 (EMI)
EN 61000-6-2 (EMS)
Rugghölzli 2 Tel. +41 (0)56 222 38 18
CH - 5453 Busslingen Fax +41 (0)56 222 10 12
MODEL: M6DSN
2
18.0
17.4V (approx.)
Load resistance 600Ω
16.0
14.0
12.0
10.2V (approx.)
10.0
Load resistance 250Ω
8.0
6.0V (approx.)
6.0
Load resistance 50Ω
approx. 5.4
approx. 5.2
approx. 5.0
4.0
4 12 20
Input Current (mA)
