Have Glass Beveled, Drilled And Tempered Per Illustration.; Slide Plastic Sleeves Over Hanger Post.; Insert Rubber Pad Over Post With Smooth Side Facing Metal Plate.; Insert Door Plate Into Holes Drilled In Door. - Johnson Hardware 200 Quick Start Manual

1

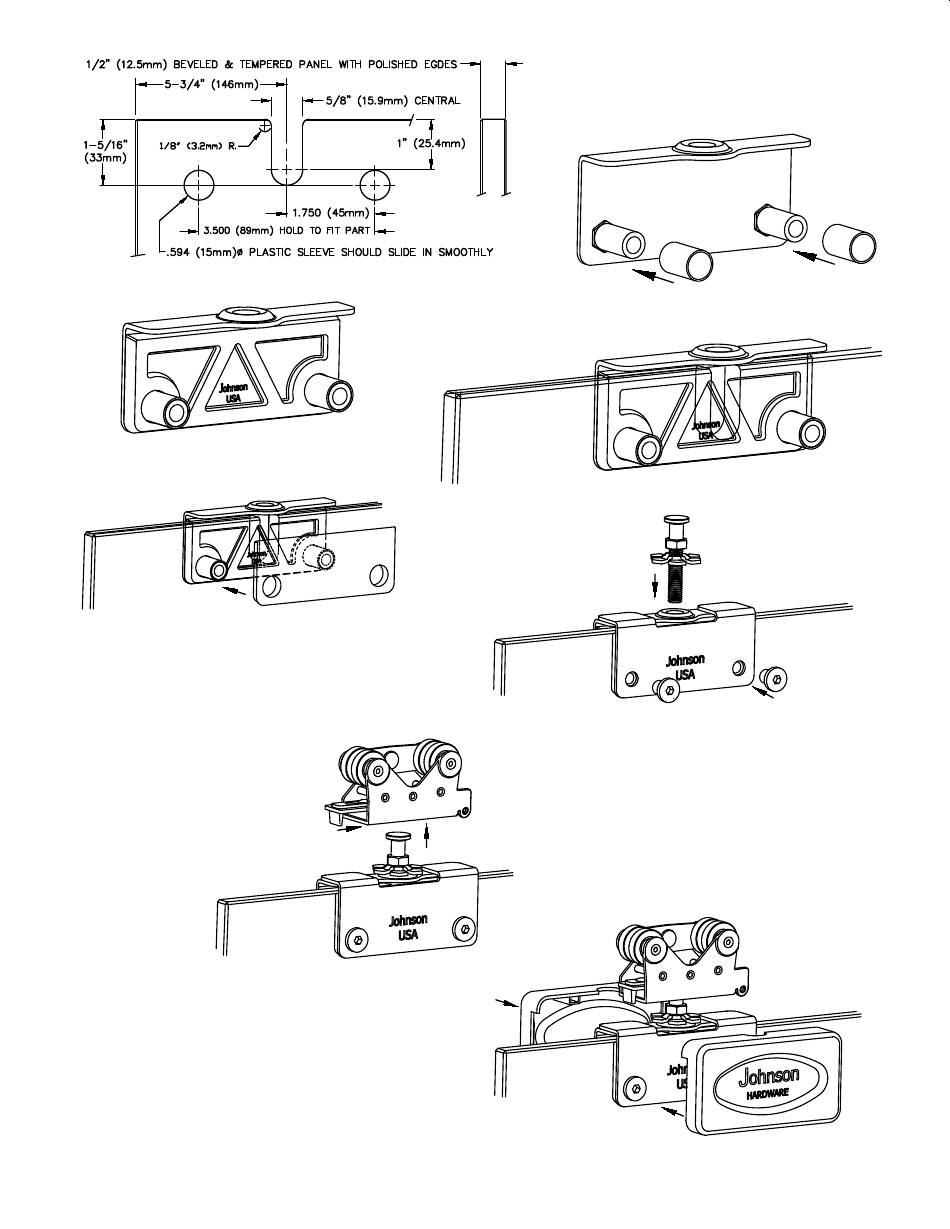

HAVE GLASS beveled, drilled and tempered per illustration.

2

SLIDE PLASTIC SLEEVES over hanger post.

3 INSERT RUBBER PAD over post with smooth
side facing metal plate.
4

INSERT DOOR PLATE into holes drilled in door.

5
INSERT SECOND RUBBER pad on other side of glass,
smooth side facing away from glass.
6
LAY OTHER HANGER PLATE against pad and thread 3/8" screws into metal post.
Thread hex slotted Locknut onto adjusting bolt, then thread adjusting bolt into door plate.
CLEAR ANY DEBRIS FROM TRACK
AND WHEELS PRIOR
TO HANGING DOOR.
7

HANG GLASS DOOR. Adjust Hanger then tighten locknut.

8

SNAP HANGER COVERS over Hanger.
