Table of Contents

For 1/2" (12.5mm)
Tempered Glass Door Panel

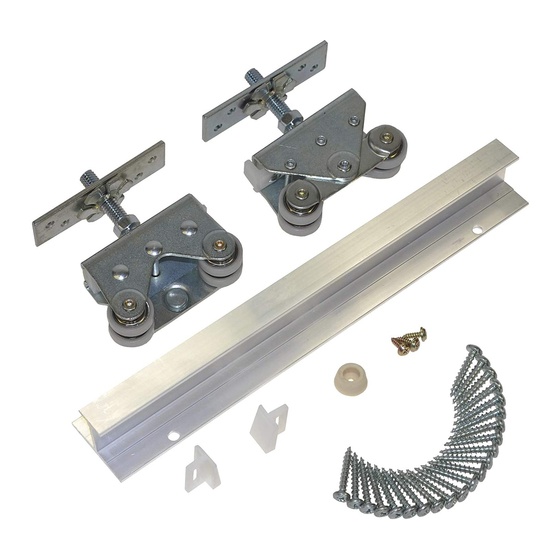

200 POCKET DOOR
Maximum Door Weight 400 lbs. (182kg.)
R
www.johnsonhardware.com
GLASS DOOR HARDWARE

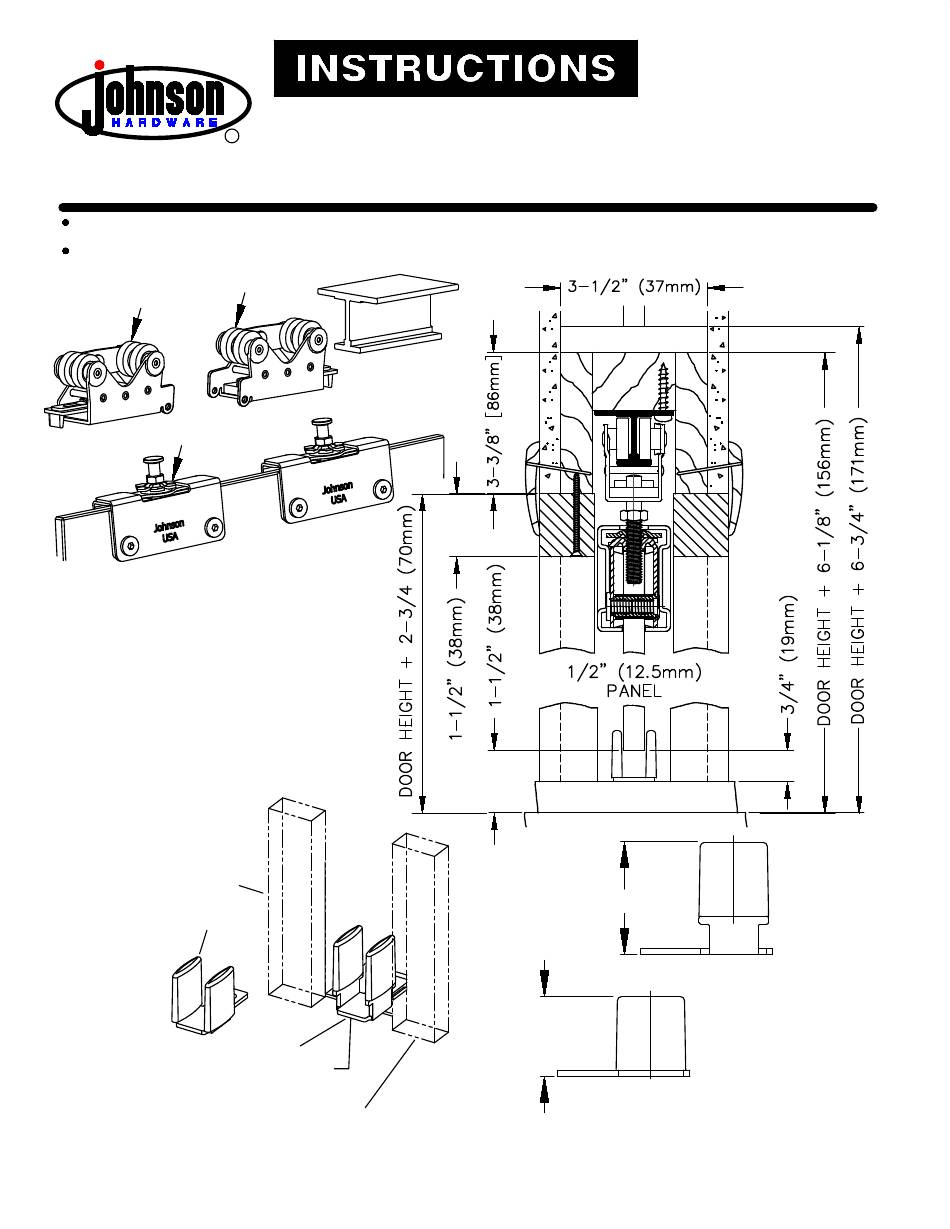

Prepare opening to dimensions as shown on 2000 & 2060 instruction's.
Insert 2020 Hanger wheels into track with locking levers facing ends of track.
2020
2020
2071
FINISH SPLIT JAMB
1.73 [44mm]
FINISHED FLOOR GUIDE
2087 GUIDE / SUBFLOOR
1.21 [31mm]
SUB FLOOR GUIDE
LOCATE FRONT OF GUIDE
FLUSH WITH FINISH SPLIT JAMB
2088 GUIDE / FINISH FLOOR
FINISH SPLIT JAMB
IN2071GP L.E. JOHNSON PRODUCTS, INC. - 2100 STERLING AVE. - ELKHART, IN USA 46516 - (574) 293-5664 Rev 10/22
------INSTRUCTION SHEET IS SUBJECT TO CHANGE------
