MIDDLE RABBIT S-W4 Quick Start Manual

QUICK START GUIDE
MODEL:S-W4
If you encounter any problems when using the earphones,
feel free to contact us: amz@fediker-vip.com

Guide for using earphone without dongle

1. Open charging case lid, both earphones will get paired with each other
(when one icy-blue indicator light flashes slowly and the other goes out,
successful pairing is done).
Automatic pairing
2. For the first time use, search for "S-W4"
in the Bluetooth function of the
mobile phone, and click "S-W4"
Available device
to pair mobile phone with the earphones.
S-W4
Earphones will
get connected with the device
automatically for the second use after
opening charging case lid.

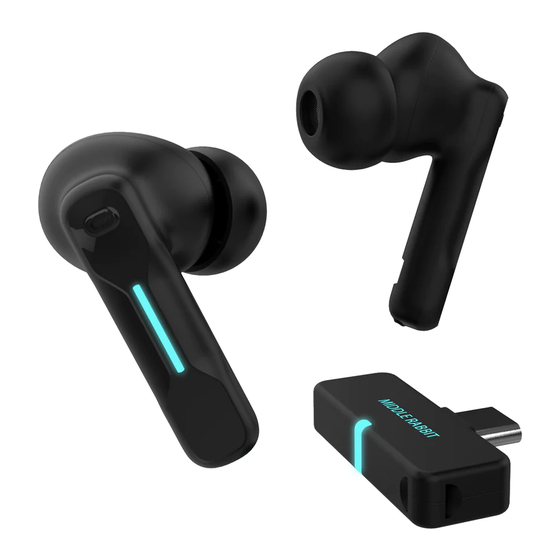

What's in package
Earphones Charging case
Type-C dongle
Type-C charging cable USB adapter Silicon earbuds

Earphone basic operation

Touch control area(MFB)

Music control

Calling control

When playing music
Single click on either MFB for Play / Pause
When receiving a call，
Press left MFB for 2 seconds for previous track
Single click on either MFB for answering
Press right MFB for 2 seconds for next track
Double click on either MFB for rejecting
Double click on the left to decrease the volume
When ending a call,
Double click on the right to increase the volume
Single click on either MFB for ending

Power On / Off

Method 1: Open charging case lid, earphones will be powered on and get connected
automatically;Put earphones back into charging case and close case lid,
earphones will be powered off and get charged automatically.
Method 2: Press both earphones MFB (touch button which is pointed out in the picture)
for about 3 seconds to power on
Press both earphones MFB for about 5 seconds under on-state for power-off.
3S On
5S Off
Pairing the headset with the Type-C Dongle (Please make
sure Bluetooth is disconnected before using Type-C dongle,
or the earphones will pair automatically with Bluetooth
device you last used.)
1. Open the lid of the charging box, press and the reset button for 3 seconds, the charging
box light flashes twice, and the headset disconnect the previous pairing. Or, you can directly
turn off your Bluetooth on your last pairing device.
2. Insert the Type-C Dongle (directly or through the USB adapter), the indicator light flashes
slowly, and the light is always on after successful pairing.
3. When using the Type-C Dongle again, the headset can be automatically connected when
the earphones are turned on.

Modes-switch control

Voice Assistant control

Music Gaming
mode mode
When using dongle mode, you can click either side
three times to mute or unmute your mic. (dongle
Click 4 times on either mode only, not for Bluetooth mode)
side MFB to switch mode

Earphones Reset

Method 1: Method 2:
Place earphones in charging case, Under power-off state, long press both MFB for
long press reset button for 3 seconds, 7 seconds to enter pairing mode (icy-blue
indicator light flashes slowly), click 6 times on both MFB
charging case indicator light flashes
twice, all pairing info is deleted (icy-blue indicator light flashes 3 times) to clear all
automatically. pairing info, put earphones back into charging
case for new pairing operation.
Reset button
Power-off state Step1 Step2
Warranty Card
Warranty content ( Fill in this card truthfully for warranty )
Product Name
Product Model
Purchase Date
Purchase Seller
User's Name
User's Address
Contact Detail
Fault Description
The following situations will not be repaired free of charge
1 . No warranty card or warranty card is damaged
2 . Device damage caused by self disassembly
3 . Damage caused by water, dropping or man made mechanical destruction
4 .
Damage or fault caused by force majeure
Certificate
Inspector
Inspection Date
Manufacture Date

Charging

When charging case is under low-battery state, there will be low battery warning tone every 2 minutes
Icy-blue lights Icy-blue lights
flash during will be off after
charging full charging

Product Parameters

THD： ≤ 5%
BT Version : Bluetooth V5.1
Driver： Ф10mm Bluetooth range ：10m
Impedance： 16 Ω Battery capacity ：（Earphone）70 mAh x 2
Sensitivity： 105 dB （Charging case ）470 mAh
Frequency Response： 20 Hz-20K Hz Play Music ： 8 H
Microphone Sensitivity：42 dB Call time ： 12-16 H
Audio codecs support： SBC、AAC （Charging case ）2.5 H
charging time：
IPX level： IPX5
* All specifications above are based on lab testing data.
