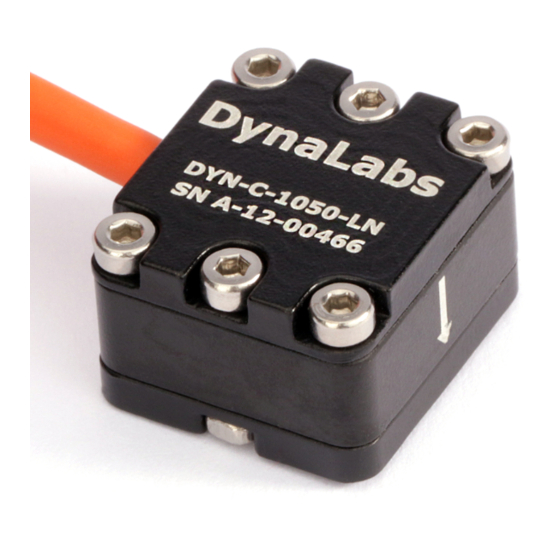

- Page 1 Model DYN-C-1000-LN 2g/5g/10g/30g/50g/100g/200g Product Manual...
- Page 2 All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors. Product Support If at any time you have questions or problems with the DYN-C-1000-LN sensors, please contact a Dynalabs engineer at: Phone: +90 312 266 33 34 (9 a.m.
- Page 3 All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors. Table of Contents 1) Introduction ............................4 2) General Information ..........................4 2.1) Unpacking and Inspection ......................4 2.2) System Components ........................
- Page 4 These sensors feature standard reliable aluminum housing with protection class IP68. Steel housing is also possible. Dynalabs LN accelerometers provide Low noise – high resolution with an outstanding noise performance from 9 to 680 μg/√Hz. These accelerometers provide a wide frequency range (±5%) from 250 Hz to 1,500 Hz.
- Page 5 All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors. 2.3) Specifications Table 1: Specifications datasheet 1002LN 1005LN 1010LN 1030LN 1050LN 1100LN 1200LN ±2 ±5 ±10 ±30 ±50 ±100 ±200 Full scale...
- Page 6 Connector (Optional) D-Sub 9 or 15 pin, Lemo, Binder Mounting Adhesive or screw mount Base plate (Optional) Aluminum or Steel 10 g (aluminum) Weight (without cable) 20 g (steel) 2.4) Outline Drawing The dimensional properties of DYN-C-1000-LN sensors are given below;...
- Page 7 All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors. 3) Operation and Installation 3.1) General The general sensor connector configuration is given below; Cable Code/Pin Configuration: • Red : V + Power supply voltage +5 to +20 VDC •...
- Page 8 • MIL-STD-810-H-2019 (Test Methods: 501.7 - High Temperature, 502.7 - Low Temperature, 514.8 - Vibration, 516.8 – Shock) DYNALABS MÜHENDİSLİK SANAYİ TİCARET LİMİTED ŞİRKETİ declares that above mentioned products meet all the requirements of the above mentioned standards and regulations.
