Osram 2720 User Manual

Ip65 led strobe wash bar light
Hide thumbs

Advertisement

Quick Links

Download this manual
2720
IP65 LED Strobe wash bar light
User manual
Please read the instructions carefully before use

Advertisement

loading

Related Manuals for Osram 2720

Summary of Contents for Osram 2720

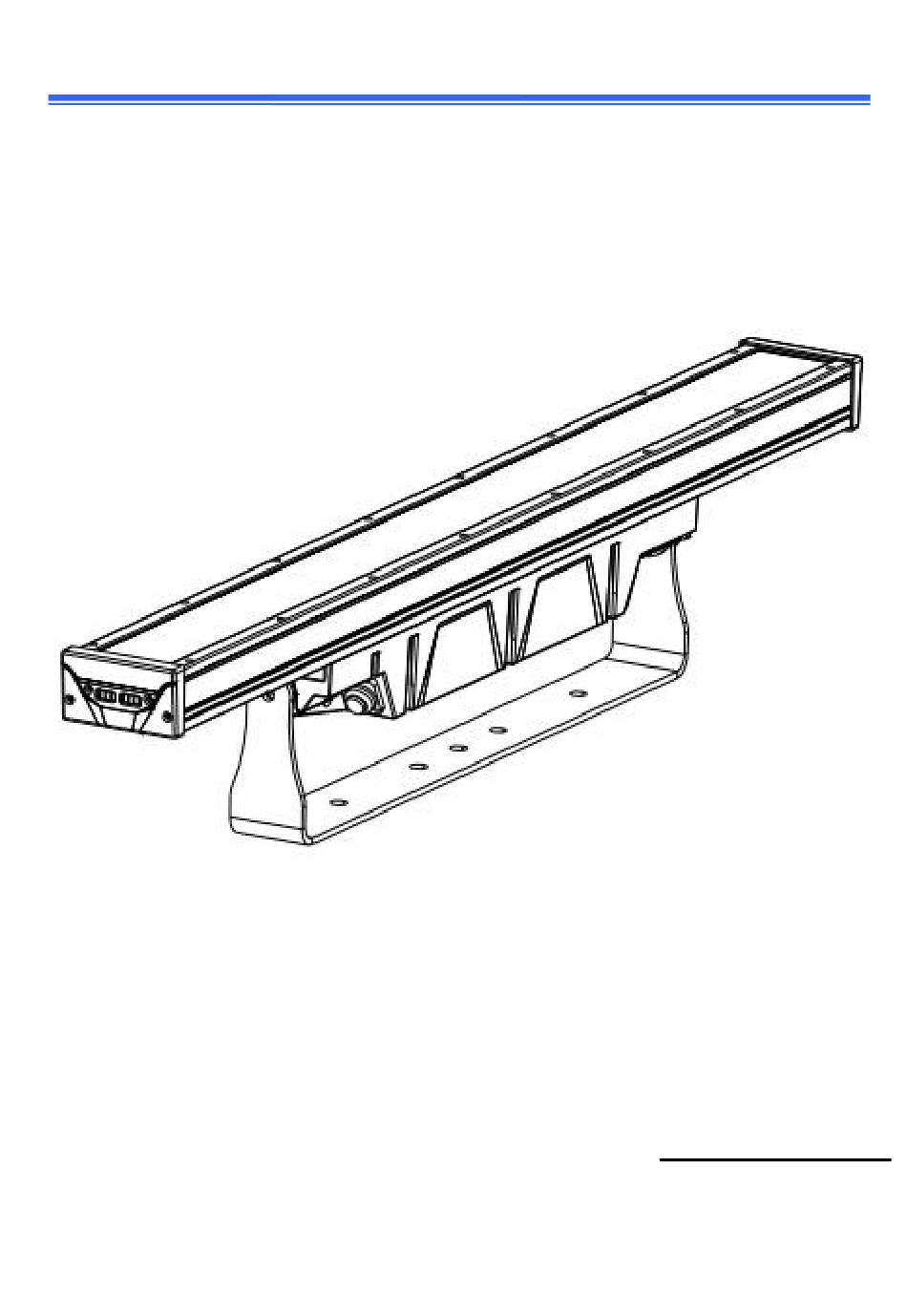

  • Page 1 2720 IP65 LED Strobe wash bar light User manual Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions ..................1 - 3 2. Technical Specifications...................5 3. How To Control The Unit..................6 4. DMX Channel List..................16 5. Shape.........................18 6. Trouble shooting...................... 19 7. Fixture Cleaning.......................20 statement product well capability intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included guarantee,...

  • Page 3: Safety Instructions

    1. Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit.
  • Page 4  DO NOT touch any wire during operation as high voltage might be causing electric shock. Warning:  To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.  DO NOT open the unit within five minutes after switching off. ...

  • Page 5: Technical Specifications

    2. Technical Specifications Light Sources: 960*0.2W 4IN1 RGBW LED Beam Angle:120° Power Consumption: 210w Power Voltage: AC 100-260V, 50/60Hz Control DMX Channel:16/44 Channels Control Modes: DMX512/Auto Run/Music Construction Display:180° reversible LCD Display Data In/Out socket: 3-pin XLR sockets Power Socket: Waterproof Powercon in/out Protection Rating: IP65 Net Weight:6 kgs Features...
  • Page 6 3.Lux Date 4. Display & Menu...
  • Page 7 Display: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Set DMX Address Code Press "Menu" to "Set DMX Address",and press"ENTER" keys to enter into Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"...

  • Page 8: Dmx Channel List

    Reverse Forward or reversed setting 44 channels Channel 16 channels 1.CH Value Each channel show CH value Show the temperature of led 2.Temp ____ ℃ Inform board 3.Soft V1.1 Show the version number DMX 512 AUTO Mode SOUND 5.DMX Channel List Model 1 - CH44 Channel Display...
  • Page 9 Model - 4 150--- 255 0 --- 15 from slow to fast 16 --- 165 CH-3 Strobe flashes strobe slow to fast 166---215 Random stroboscopic 215---255 CH-4 Red - 1 From dark to bright 0 --- 255 CH-5 Green - 1 CH-6 Blue - 1 CH-7...
  • Page 10 CH-13 Green - 3 CH-14 Blue - 3 CH-15 White - 3 CH-16 Red - 4 CH-17 Green - 4 CH-18 Blue - 4 CH-19 White - 4 CH-20 Red - 5 CH-21 Green - 5 CH-22 Blue - 5 CH-23 White - 5 CH-24...
  • Page 11 CH-27 White - 6 From dark to bright 0 --- 255 CH-28 Red - 7 CH-29 Green - 7 CH-30 Blue - 7 CH-31 White - 7 CH-32 Red - 8 CH-33 Green - 8 CH-34 Blue - 8 CH-35 White - 8 From dark to bright 0 --- 255...
  • Page 12 R up,G0%,B100% 96----115 R 100%,G0%,B down 116----135 CH-36 Static color R 100%,G up,B up 136----155 R100%,G down,B100% 156----175 R100%,G 176----195 100%,B100%,W100% 2800K 196----200 3200K 201----205 3500K 206----210 4000K 211----215 4500K 216----220 5000K 221----225 5500K 226----230 CH-36 Static color 6000K 231----235 6500K 236----240...
  • Page 13 7000K 241----245 7500K 246----250 8000K 251----255 0 ---- 9 5 numbers 1 effect 10 --- 49 CH-37 Effects Dynamic effect 1 fast to 59 --- 89 slow Dynamic effect 2 fast to 90 --- 129 slow Dynamic effect 3 fast to 130--- 169 slow CH-37...
  • Page 14 Static Zone -1 0 --- 4 Static Zone -2 5 --- 9 Static Zone -3 10 --- 14 CH-38 Zone Static Zone -4 15 --- 19 Static Zone -5 20 --- 24 Static Zone -6 25 --- 29 Static Zone -7 30 --- 34 Static Zone -8 35 --- 39...
  • Page 15 Static Zone -15 70 --- 74 Static Zone -16 75 --- 79 CH-38 Zone Static Zone -17 80--- 84 Static Zone -18 85 --- 89 Static Zone -19 90 --- 94 Static Zone -20 95 --- 99 Static Zone -21 100 --- 104 Static Zone -22 105--- 109...
  • Page 16 Dynamic Zone -1 140 --- 149 CH-38 Zone Dynamic Zone -2 150 --- 159 Dynamic Zone -3 160 --- 169 Dynamic Zone -4 170 --- 179 Dynamic Zone -5 180 --- 189 Dynamic Zone -6 190 --- 199 Dynamic Zone -7 200 --- 209 Dynamic Zone -8 210 --- 219...
  • Page 17 Blue CH-44 Color Zone White Model 2 - CH16 Channel Display Function Value CH-1 Dimming From dark to bright 0 --- 255 Model - 1 0 --- 49 CH-2 Dimming Model Model - 2 50 --- 99 Model - 3 100--- 149...
  • Page 18 Model - 4 150--- 255 0 --- 15 from slow to fast 16 --- 165 CH-3 Strobe flashes strobe slow to fast 166---215 Random stroboscopic 215---255 CH-4 CH-5 Green From dark to bright 0 --- 255 CH-6 Blue CH-7 White 0----15 R 100%,G up,B0% 16----35...
  • Page 19 CH-8 Static color R up,G0%,B100% 96----115 R 100%,G0%,B down 116----135 R 100%,G up,B up 136----155 R100%,G down,B100% 156----175 R100%,G 176----195 100%,B100%,W100% 2800K 196----200 3200K 201----205 3500K 206----210 4000K 211----215 4500K 216----220 5000K 221----225 5500K 226----230 CH-8 Static color 6000K 231----235 6500K 236----240...
  • Page 20 7000K 241----245 7500K 246----250 8000K 251----255 0 ---- 9 5 numbers 1 effect 10 --- 49 Dynamic effect 1 fast to 59 --- 89 slow CH-9 Effects Dynamic effect 2 fast to 90 --- 129 slow Dynamic effect 3 fast to 130--- 169 slow CH-9...
  • Page 21 Static Zone -1 0 --- 4 Static Zone -2 5 --- 9 Static Zone -3 10 --- 14 CH-10 Zone Static Zone -4 15 --- 19 Static Zone -5 20 --- 24 Static Zone -6 25 --- 29 Static Zone -7 30 --- 34 Static Zone -8 35 --- 39...
  • Page 22 CH-10 Zone Static Zone -15 70 --- 74 Static Zone -16 75 --- 79 Static Zone -17 80--- 84 Static Zone -18 85 --- 89 Static Zone -19 90 --- 94 Static Zone -20 95 --- 99 Static Zone -21 100 --- 104 Static Zone -22 105--- 109...
  • Page 23 Dynamic Zone -1 140 --- 149 Dynamic Zone -2 150 --- 159 Dynamic Zone -3 160 --- 169 Dynamic Zone -4 170 --- 179 Dynamic Zone -5 180 --- 189 Dynamic Zone -6 190 --- 199 Dynamic Zone -7 200 --- 209 Dynamic Zone -8 210 --- 219 CH-38...

  • Page 24: Shape

    Blue CH-16 Color Zone White 6. Shape...

  • Page 25: Trouble Shooting

    7. Trouble shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.

  • Page 26: Fixture Cleaning

    8. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics. ...
