Osram traxon Allegro Washer AC Mounting Manual

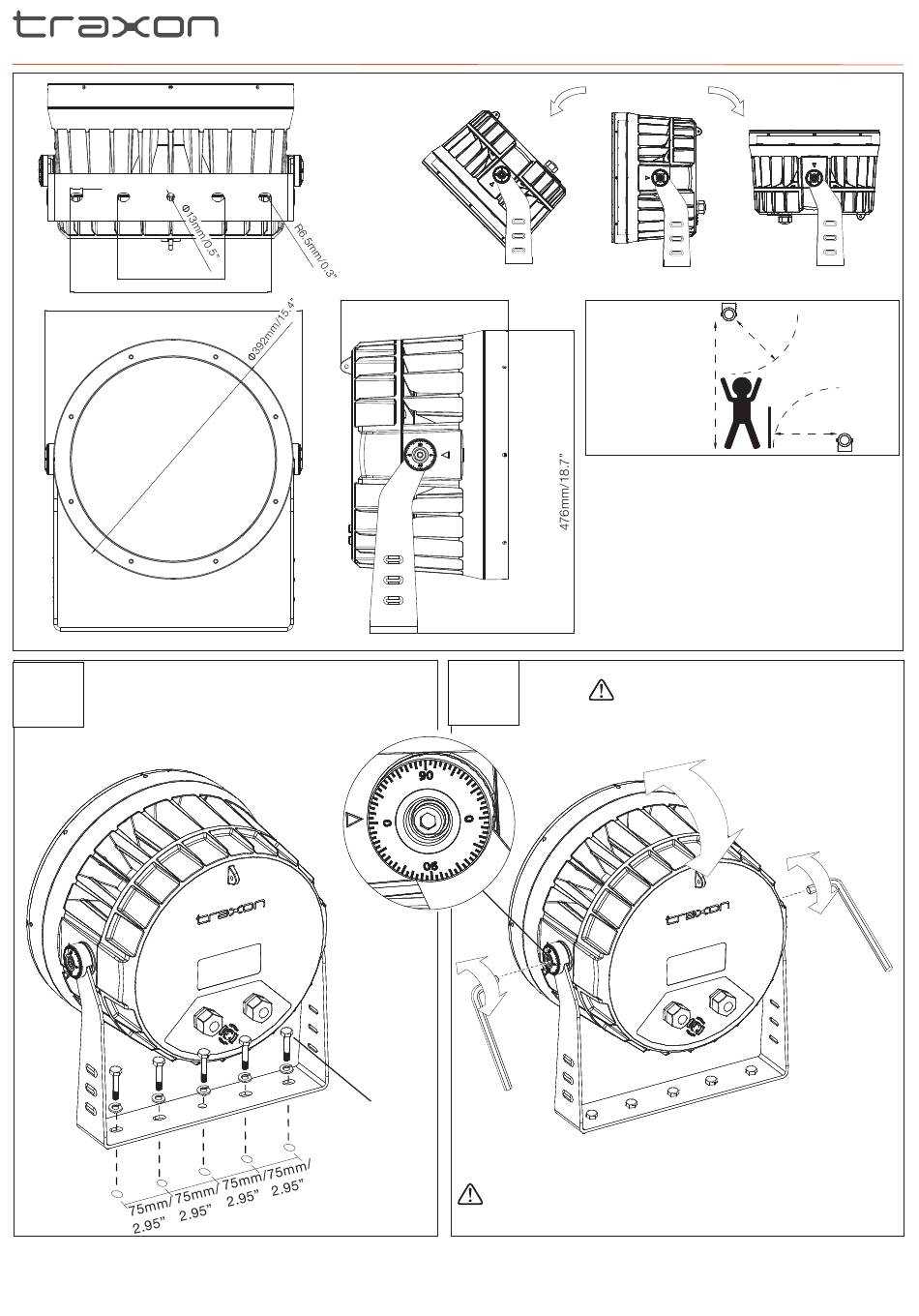

20mm/0.8"
170mm/6.7"
320mm/12.6"
420mm/16.5"
1
www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Mounting Guide
264mm/10.4"
2
Unlock
12mm screw (X5)
(not included)
6mm Hex Key
Tightening Torque 3.5Nm
Only turn enough to unlock
Do not unscrew the hex screw
from fixture
01/20 V0.4
A l l eg r o W as h er A C 1 5 0 W / 2 00 W
1. Tilt the head slightly to mount the bracket.
Only turn enough to unlock.
2. Do not unscrew the hex screw from fixture.
Adjust Position
Lock
M o u nt i n g Gu ide
> 1.25m
> 2.5m
obstacle
> 1.25m
Lock
Unlock
1 of 4
