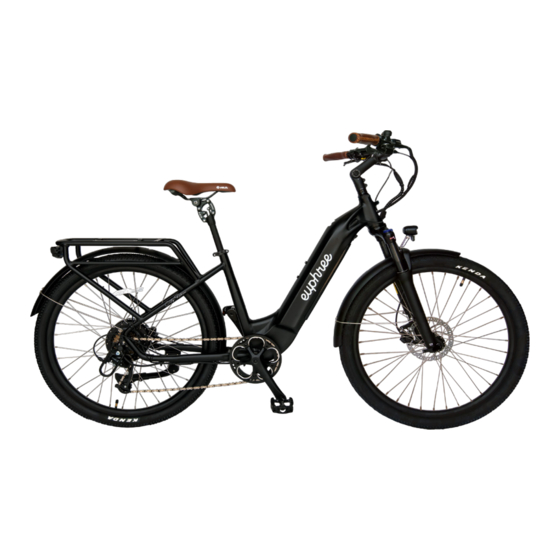

- Page 1 STEP-THRU CITY ROBIN 2022 EBIKE www.euphree.com City Robin MANUAL SUPPORT@EUPHREE.COM Phone: (866) 729-8075 Address: 6501 Navigation Blvd, Houston, TX 77011...
- Page 2 EUPHREE 2 0 2 2 M A N U A L YOU•FREE City Robin 2022 - Step-Thru electric bike. THE City Robin MANUAL COMMUTER STEP-THRU electric bike City Robin 22 YOU•FREE AN AMERICAN COMPANY BASED OUT OF HOUSTON, TX The City Robin model 2022 is our best commuter cruiser ebike yet.
-
Page 3: Warranty
2 0 2 2 M A N U A L Protection Wear A Helmet TABLE OF CONTENT EBIKE ASSEMBLY BATTERY DISPLAY WARRANTY... - Page 4 Any liability which may be incurred as a result of the use of the Euphree City Robin is limited to the cost of repairing or placing the failed component at the discretion of Euphree, and does not extend to any loss or damage which may be caused by misuse or fail- ure of the product.
- Page 5 All content in this manual is subject to change or withdrawal without notice. Assembly and first adjustment of your ebike from Euphree requires special tools and skills. It is recommended that assembly and first ad- justment be completed by a certified, reputable ebike mechanic unless you are mechanically inclined.
- Page 6 EUPHREE 2 0 2 2 M A N U A L YOU•FREE City Robin 22 - Step-Thru electric bike Disclaimer: Accessories and hardware: Before every ride, ensure all hardware is secured and approved accessories are properly attached per man- ufacturer’s instructions. If you do discover something you are unsure about, have it checked by a certified, reputable ebike mechanic.
- Page 7 EUPHREE 2 0 2 2 M A N U A L YOU•FREE City Robin 22 - Step-Thru electric bike Disclaimer: • Before cleaning your ebike, turn off the ebike and turn off the battery. Wipe the frame with a clean, damp cloth.
-
Page 8: How To Assemble
PAIR. CONSULT A CERTIFIED, REPUTABLE EBIKE MECHANIC TO ASSIST WITH ASSEMBLY, REPAIR AND MAINTENANCE FOR YOUR CITY ROBIN. How to Assemble Your Ebike C I T Y R O B I N 2 0 2 2 To watch assebly video please visit our website www.euphree.com... -
Page 9: Box Includes
E U P H R E E M A N U A L YOU•FREE City Robin 22 - Step-Thru electric bike Step 1: Open the ebike box Components included in shipment, if there are any missing parts, please contact Euphree BOX INCLUDES: • Ebike • Pedals (2) • Charger • Front wheel •... - Page 10 If needed, align the handlebar and stem and torque the stem clamp bolts evenly to the specification for the handlebar stem clamp bolts listed in the Recommended Torque values tablebelow. After making any adjustments, perform the twist test again. If the handlebar still moves, contact Euphree or consult a local, certified ebike mechanic.
- Page 11 EUPHREE 2 0 2 2 M A N U A L YOU•FREE City Robin 22 - Step-Thru electric bike Step 6: Install the front fender and headlight • Unscrew the bolt on the front fork • Screw in the front headlight and fender with the same bolt onto the front fork •...
- Page 12 EUPHREE 2 0 2 2 M A N U A L YOU•FREE City Robin 22 - Step-Thru electric bike WARNING: Ensure that all hardware is properly tightened, all components are secured, and perform all safety checks before your first ride. Failure to properly assemble your bike can cause damage to property, serious injury and/or death.
- Page 13 Do not use a damaged battery or charger. Use of a damaged battery or charger can create ad- ditional damage to your ebike and is a fire hazard. Do not use your battery and charger and immediately contact Euphree if you experience any of the following: 1.
- Page 14 Be sure to follow all instructions for storing ebike and battery. Failure to follow ebike and battery storage procedures can result in a non-functional battery, and replacement is not covered under warranty. If storing your Euphree ebike for longer than two weeks at a time, follow instructions to help maintain health and longevity of your battery. •...
- Page 15 If your battery does not seem to be charging normally, is taking longer than expected to charge, or you’ve noticed a substantial reduction in range between charges, discontinue use and contact Euphree immediate- ly. Note that the battery may take longer to charge when fully depleted, when very new, and after 3-5 years of use.
- Page 16 Damage caused by failing to read, understand and follow all instructions is not covered under warranty. Contact Euphree if you have questions regarding assembly or operation. Users must fully understand the ebike’s power systems before operating. Users must take extra care when first applying the throttle mechanism.
- Page 17 EUPHREE 2 0 2 2 M A N U A L YOU•FREE City Robin 22 - Step-Thru electric bike Operations Directions Turn on ebike Press and hold the POWER button Turn on lights Press and hold the UP button Increase pedal assist level Press the UP button Decrease Pedal assist level ...
- Page 18 EUPHREE 2 0 2 2 M A N U A L YOU•FREE City Robin 22 - Step-Thru electric bike. Sub-menu Options Default Explanation Unit System Imperial/Metric Imperial Determines whether speed and distance is measured in miles or kilometers Power System 24V/36V/48V/52V 48V Ensures the proper readout of voltage.
- Page 19 EUPHREE 2 0 2 2 M A N U A L YOU•FREE City Robin 22 - Step-Thru electric bike. An explanation of each sub-menu is as follows: Sub-menu Options Default Explanation Speed Limit 0 - 60 km/h 45 km/h Implements a speed limit on the bike. After the bike hits that limit, the motor will cease to provide assistance.
- Page 20 3. Begin riding carefully. With proper safety gear, prior experience in bicycle riding, and after reading this manual in its entirety, the rider may now operate the Euphree ebike. On a flat surface, most riders should be able to begin pedaling the ebike with pedal assist level 0 or 1. You may also gently use the throttle to accelerate or maintain desired speed.
- Page 21 Failure to remove all air pressure from the inner tube can result in serious injury and/or death. Use of aftermarket tires or inner tubes not provided by Euphree may void your warranty, may damage your ebike, or may create an unsafe riding condition resulting in loss of control, accidents, serious injury and/or death.
-
Page 22: Maintenance
Locks to not prevent all ebike theft. Locking up your ebike with at least one lock is recommended to reduce the chance of ebike theft. Euphree makes no claims or recommendations on the proper lock hardware or procedures to secure your ebike. We do recommend you take precautions to keep your ebike safe from theft. - Page 23 • For the avoidance of doubt, Euphree will not be liable and/or responsible for any damage, failure or loss caused by any unauthorized service or use of unauthorized parts. •...
- Page 24 Covered Components if you: • Notify Euphree of a Covered Component damaged in the shipping process within thirty (30) days of your receipt of the ebike • Provide Euphree with a dated picture of the the damaged Covered Component •...
- Page 25 EUPHREE 2 0 2 2 M A N U A L YOU•FREE City Robin 22 - Step-Thru electric bike.
