Summary of Contents for LEXGO LEX R9

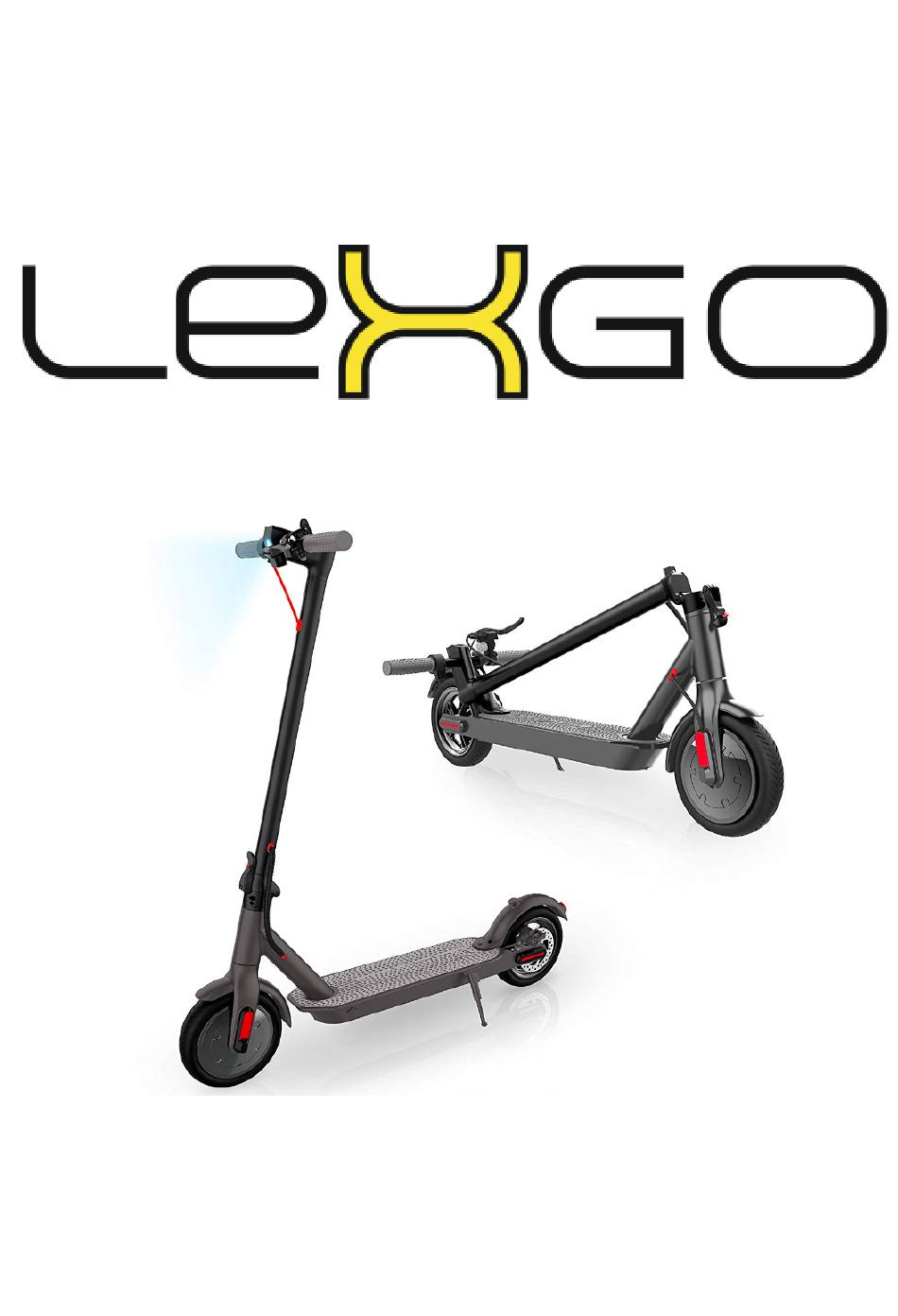

- Page 1 LEX R9 USER GUIDE...
-
Page 2: Topic Index
Dear Customer, electric thank you for buying a LEXGO scooter! What is commonly referred to as "Kick Scooter" or, in Italian, electric scooter, is a personal transport device that is based both on muscle thrust and on the aid of an electric motor. The principles that... - Page 3 1. SAFETY WARNINGS THIS OPERATING MANUAL MUST REMAIN AN INTEGRAL PART OF THE PRODUCT: KEEP IT FOR FUTURE CONSULTATION. under the age This device should not be handled and/or used by children of 14 and/or people with reduced physical, sensory and cognitive abilities unless they are supervised and/or adequately instructed by a person responsible for their all possible safety regarding how they are used and aware of...
- Page 4 In case of anomalies during the charging phase, immediately disconnect the technical support power supply from the power grid and contact the service. . Do not leave the power supply connected to the power grid when unused. . Use only the supplied power supply or, if it is damaged, contact the technical support for replacement .
- Page 5 2. WARNINGS FOR SAFE Before using the product, carefully check the correct assembly, and integrity. This device is suitable for the transport of only one person, within the weight limits indicated in the technical characteristics, after training and practice . Important! Do not exceed the minimum and maximum load limits in the "Technical Features"...
- Page 6 3. TECNICHE FEATURES Model LEXGO-LEX R9 (anthracyte/black color) AC-DC Power supply 100-240 V 50/60Hz OPERATING TEMPERATURE: 10 DEGREES CELSIUS - 30 DEGREES CELSIUS Battery lithium-ion, 36 V, 6.0 Ah Operating life: approximately 500 full charging cycles with remaining 70% capacity .??
- Page 7 4. DESCRIPTION Handlebar Ingresso alimentazione Leva blocco piantone manubrio Tripod Lighthouse Multi-purpose tool Rear wheel disc brake Buzzer Quick (4 pz . ) Back wheel Panel Power supply Control Signaling back Charging cable Accelerator lever Rear fender Disc brake lever hook Bar folding Closing hook...
-
Page 8: Assembly And Adjustments
5. ASSEMBLY AND ADJUSTMENTS Here's how to assemble the product and open the frame before use: CONNECT THE HANDLEBARS • Connect the two connectors from the handlebars together. and the handlebars • Carefully insert the excess cable into the column, from being careful to prevent it being crushed or... -
Page 9: Safe Driving
SAFE DRIVING After starting the product, you need to maintain sufficient speed to maintain balance and be suitable for your surroundings. With regard to the places where this vehicle can be used and the speed restrictions imposed according to the place of use, refer to the current legislation. This scooter is equipped with a control panel that allows you to set the limit speed that can be reached with the help of the electric motor (see "Technical features"... - Page 10 7. DI CONTROL PANEL To enable electric motor service, must turn on the control panel on the handlebars. On the panel, you can see information such as battery charge, distance traveled, and set the speed limit (displayed by the gear indicator) and the unit of measurement of the distance traveled.
-
Page 11: Safety Warnings
8. BATTERY In order to avoid damage and/or the early deterioration of the battery, charging must be carried out ta in a dry environment and at a temperature within the range indicated between the stiche Technical Characteristics of the product. Open the CC power outlet cover cap on the product. -
Page 12: Battery Maintenance
BATTERY MAINTENANCE In order to get the best performance from the battery, you should follow a few follow-to-follow steps listed: - When the battery charge level indicator marks two notches or less, fast-paced tà can quickly drain the battery; we recommend that you proceed slowly and recharge your battery as soon as possible. -
Page 13: Cleaning And Maintenance
9. CLEANING AND MAINTENANCE Cleaning Before performing any cleaning and/or maintenance, you should make sure that the product is turned off and is not connected to the power supply. Clean only the external parts of the product and with a cloth slightly moistened with water, do not use detergents or chemical solvents Avoid in any case the entry of water or dust inside the equipment. -
Page 14: Problem Solving
10. PROBLEM SOLVING The following short guide can help you in case of malfunctions related to the electrical parts of the bicycle. For other mechanical failures, see a regular Repairer. Problem Possible Cause Solution Insufficient autonomy The battery was not well Fully recharge the battery. - Page 16 Due to the continuous technological evolution of products, the data contained in this manual may vary slightly without manufacturer's notice.
