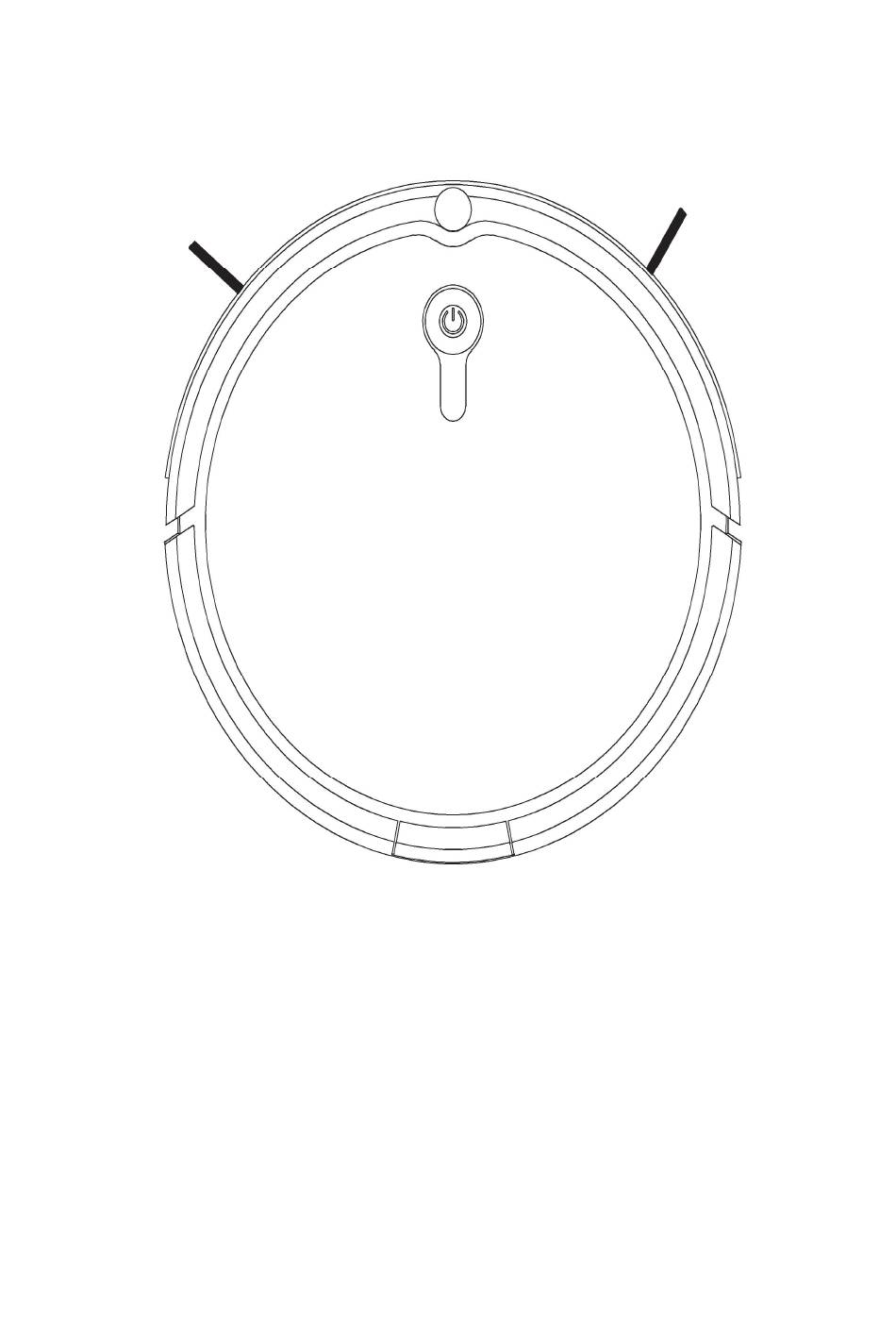

- Page 1 S1-340 S1-340A Smart Sweeping Robot Product Manual...
-
Page 2: Table Of Contents
Table of Contents 1 Important Safety Instructions...............1 2 Product Components...................2 ..............2 2.1 The main machine and accessories ..................3 2.2 The main machine ..................3 2.3 Charging station ....................4 2.4 Dustbin ....................4 2.5 Water tank ....................4 2.6 Side brush ..................4 2.7 Remote control 3 Product Operations..................6 ..................6 3.1 Quick start guide... -
Page 3: Important Safety Instructions
- If there is any damage on the external flexible cord of the adapter, the adaptor should be scrapped. Hereby, Sinsion Technology Industrial Co., Ltd., declares that this Smart Sweeping Robot is in compliancewith the essential requirements and other relevant provisions of RE Directive... -
Page 4: Product Components
2 Product Components 2.1 The main machine and accessories Name Quantity Main machine Charging station Remote control Adapter Cleaning brush Insturction manual Side brush 2pcs Water tank Attention: Please take actual product shall prevail on the basis of not less than the above accessories. -
Page 5: The Main Machine
2 Product Components 2.2 Main machine 1. Signal receiving 6. Charging poles 11.Dustbin cover button sensor 7. Battery cover 12.Charging socket 2. Mechanical clean button 8. Stair detection 13. Side brush 3. Bumper sensor 14. Drving wheel 4. Panel 9. Main brush 5. -
Page 6: Dustbin
2 Product Components 2.4 Dustbin 1.Primary lter 2.High ef cency lter 3.Dusbin upper cover 4. Dusbin botton cover 2.5 Water tank 1. Water tank button 2. Water inlet cap 3.Air valves 4. Water leakage hole 5. Mop 2.6 Side brush Please install the side brush according to the "L"... - Page 7 2 Product Components 3 In cleaning mode, press this button to stop cleaning. the schedule setting. 5 Press this button to start cleaning when the robot is recharging on charging station. Press this button to start random cleaning mode. The process is zigzag cleaning mode, edgewise.
-
Page 8: Product Operations
3 Product operations 3.1 Quick start guide 1.Place charge Place charger, connect the adapter and power, and the power light on the charger will stay lit. Position the charger against the wall, and remove all obstacles about 1 or 2 meters ahead of the charger. 2. -
Page 9: Start/Pause/Standby Mode
3 Product operations 3 Charging the machine 6 hours for the rst time. 4 When charging, the cleaning button blinks, and when fully charged, the cleaning button stops blinking, and lit permanently. 5 Please switch the main machine off when long time no use. 3.2 Pause/Standby mode 1. -
Page 10: Cleaning Mode
3 Product operations 2 Long press the “plan” button in the remote controller for 3 seconds into the plan mode, and set a speci c time according to “up, down, left and right” direction button. 3 Press the on/off button to save the settings, and to cancel the plan, press the “plan” button again (During the operation, the machine is always on the standby status.) Attention: 1 Set clock for your remote control before cleaning, the time settings are using real time. -
Page 11: Water Tank And Mop Operation
3 Product operations 3.Edge cleaning 1 Press edge cleaning button on remote control to start edge cleaning mode, the robot will start edge cleaning. 2 In auto cleaning mode, the robot also may start edge cleaning. 4.Advanced zigzag cleaning Press zigzag cleaning button on remote control to start advanced zigzag cleaning. - Page 12 3 Product operations 2 Installation of water tank MOP chassis is mounted on the machine, and when installed, please aim at the tanks xed jacks. Attention 1 Please remove the water tank when injecting water, and do not inject with complete machine. 2 Please remove water drops when installation of water tank.
-
Page 13: Product Maintenances
4 Product Maintenances 4.1 Cleaning of side brush Side brush can be removed and clean by water. Please dry them completely before second use. If side brushes damaged, please replace them. Attention: When replace side brush, please pay attention to the L and R position and color. 4.2 Cleaning of dustbin and lter 1 Press PUSH button on dustbin, remove the dustbin. -
Page 14: Cleaning Of Sensors And Charging Poles
4 Product Maintenances 4.3 Cleaning of sensors and charging poles 1 Clean sensors and charging poles on robot bottom by using soft cloth. 2 Clean charging poles on charging station by using soft cloth. Charging contactor Sensor Sensor Charging contactor 4.4 Cleaning of main brush 1 Press the locker, open main brush cover. -
Page 15: Water Tank Maintenance
4 Product Maintenances 4.5 Water tank maintenance 1 When the mop need to be cleaned, remove Air valve assembly 2 Air valve do not need to be maintained when normal use. Clean it when water leakage is Air valve cover abnormal (the power switch is off). -
Page 16: Troubles Shooting
5 Trouble shooting Problems Solution The robot keeps 1 Avoid working in high light intensity environments. moving backwards 2 Avoid working on deep dark carpets. 3 Clean the stair detection sensors by using a soft cloth. 4 Check the bumper and clean. The robot do not work 1 Turn on the power switch button. -
Page 17: Product Parameters
6 Product Parameters This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 18 1 Important Safety Instructions When people with disabilities (body perception and thinking ability defects) and children using, need to be operated under the guardian to accompany with product use and get the related instructions. WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.
- Page 19 When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country Company name : Sinsion Technology Industrial Co., Ltd. Company Address : No.11,Tongle Rd.,Tangxia town, Pengjiang Qu, Jiangmen City, Guangdong Province, 529085 People's Republic of China...
