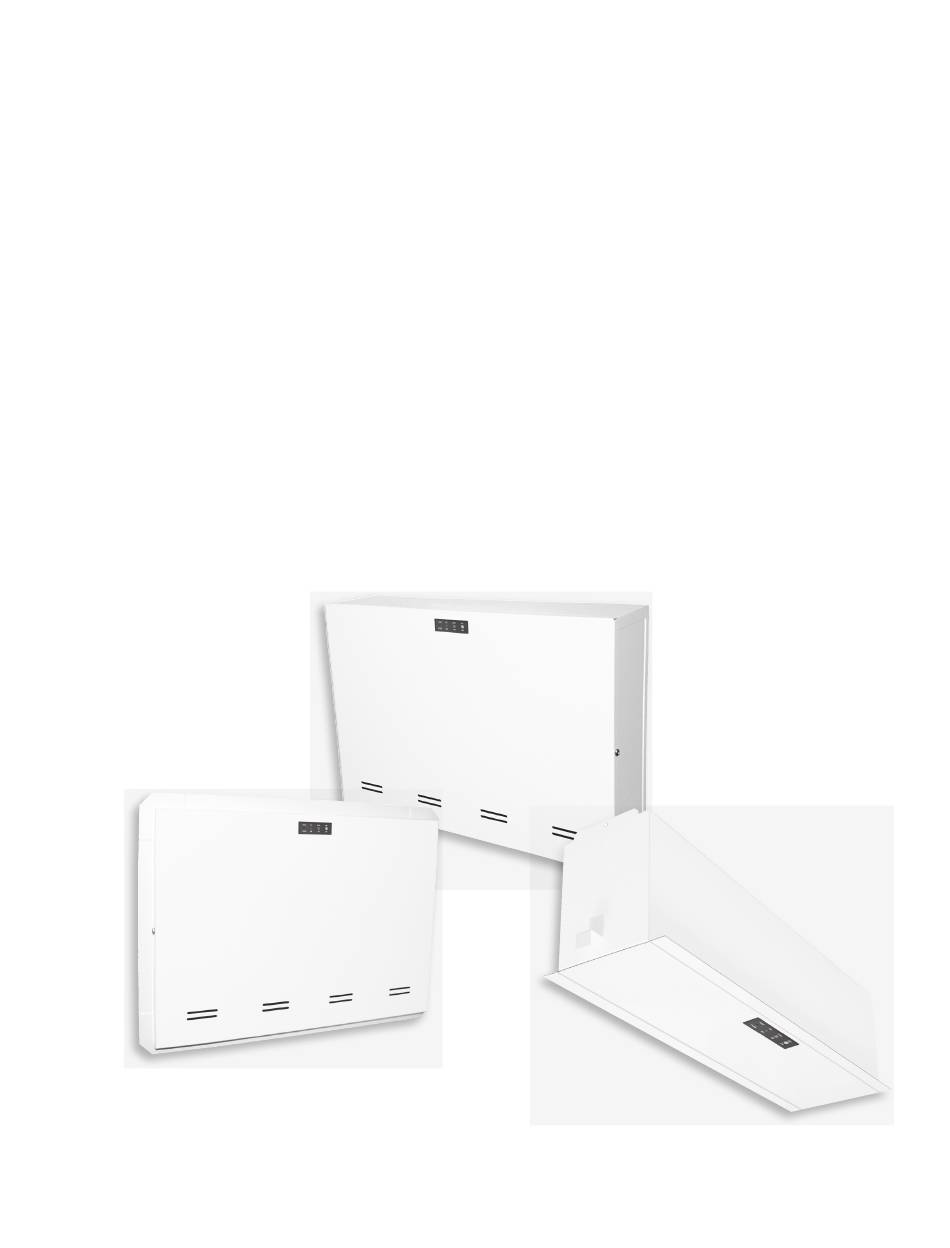

- Page 1 Installation And Operation Instructions For VST Series Mini-Inverter Power Systems Models: VST-55/125, VST-110/125, VST-110/250, VST-220/250 Surface (-S), Recessed (-R) and Ceiling T-Grid (-T) Mounted Versions...
- Page 2 READ AND FOLLOW ALL SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed, includ- ing the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS: • Do not use outdoors. • Do not let power supply cords touch hot surfaces. •...
-
Page 3: Table Of Contents
Table of Contents Description Page Section 100 System Installation Instructions 101. Unit Specifications ....................4 102. Receiving, Moving and Storing Systems and Batteries ........5 102.1 Shipping Damage ....................5 102.2 Temporary Storage of Units and Batteries ............5 103. Installation Requirements ..................5 103.1 Operating Environment .................. - Page 4 Section 100 System Installation Instructions 101. Specifications Input • Input voltage: Universal 120 or 277VAC. • Input frequency: 60HZ ±2% • Operating temperature : 20ºC to 30ºC (68ºF to 86ºF) • Input surge protection: Meets UL 924 Output • Output voltage: Universal 120 or 277VAC, 60HZ. Other voltages available upon request •...
-
Page 5: 102. Receiving, Moving And Storing Systems And Batteries
102. Receiving, Moving and Storing Systems and Batteries 102.1 Shipping Damage VST inverter system batteries are shipped installed within the unit housing with the exception of the VST 220/250 model in which the batteries are shipped separately. Carefully inspect all cartons upon receipt for evidence of shipping damage. Notify carrier immediately of leaking or damaged cartons for possible concealed damage. -
Page 6: 104. Cabinet Mounting
104. Cabinet Mounting 104.1 Tools Required The following tools are required to install the system: Socket Set, Phillips Screwdriver, Diagonal Wire Cutters, Long Nose Pliers, Electrical Tape, Digital Volt-Ohm Meter, Safety Glasses with Side Shields, Small Punch (knockout removal), Hammer, Elec- tric Drill, Wood or Masonry Bits, Level. - Page 7 104.5 Recessed Mount (-R) Models: 1) Remove cover and any packing material inside unit housing that may have been used for shipping purposes. 2) For ease of installation, and to prevent possible damage to the equipment, the inverter/charger assembly may be tempo- rarily removed prior to knockout removal and attachment to mounting surface.
-
Page 8: 105. Ac Connections
105. AC Connections CAUTION: A) All VST inverter system units contain hazardous AC and DC voltages. Because of these voltages, a qualified electrician must install the VST inverter system, AC line service, and batteries. The electrician must install the AC line service according to local, state and NEC codes and must be familiar with batteries and battery installation. -
Page 9: Wiring Diagram 1 - 120Vac Connections
Normally-On Operation - Fixtures remain illuminated in AC and emergency operating modes. See “A” in Wiring Diagram 1 for 120V wiring or “F” in Wiring Diagram 2 for 277V wiring. Normally-Off Operation - Fixtures illuminate only upon loss of utility AC power. See “B”... -
Page 10: Wiring Diagram 2 - 277Vac Connections
SWITCHED AND UNS WITCHE D LOADS, 120V OP E RATION NOTE ; ONLY (2) OF (4) POSSIBLE SWITCHE D CIRCUITS SHOWN TO NOR MALLY OFF OUTPUT LOAD LOAD LOAD LOAD CIRCUIT A CIR CUIT B CIR CUIT C CIR CUIT D SWITCHED LOCAL LIGHTING LIGHTING... - Page 11 SWITCHED AND UNSWITCHED LOADS, 277V OPERATION NOTE; ONLY (2) OF (4) POSIIBLE SWITCHED CIRCUITS SHOWN TO NORMALLY OFF OUTPUT LOAD LOAD LOAD LOAD CIRCUIT A CIRCUIT B CIRCUIT C CIRCUIT D SWITCHED LOCAL LIGHTING LIGHTING SWITCHES LOADS HOT SW HOT SW OFF ON OFF 277V IN 120V IN...
- Page 12 AO Option Operation The AO Option is designed for use with the VST Series of inverter power systems. The option will bypass one 0 to 10 volt local dimmer switch as well as allow user-programmable setting of emergency output lighting levels. Two load terminals as well as two dip-switch sets for independent output settings are provided to allow 25%, 50%, 75% or 100% of nominal illumination output during power outages.
- Page 13 4C OPTION OPERATION The inverter power system’s 4C option allows lighting fixtures or other load types on circuits controlled by local switching devices to be easily connected to and powered by the VST system during utility power outages. The 4C option provides four local switching device override circuits which, under emergency mode operating conditions, automatically disconnect the load side of the local control device(s) and connect the selected loads to the inverter output assuring normal operation of connected loads...
-
Page 14: 106. Battery Information
106. Battery Information Important Safety Precautions The installer must take these precautions: 1) Wear protective clothing, eye-wear, rubber gloves and boots. Batteries contain corrosive acids or caustic alkalis and toxic materials and can rupture or leak if mistreated. Remove rings and metal wristwatches or other metal objects and jewelry. - Page 15 System Model System Number Battery Wiring Number DC Voltage of Batteries Part Number Diagram VST-55/125-S 03-002 VST-110/125-S 03-001 VST-110/250-S 03-002 VST-220/250-S 03-001 VST-55/125-R 03-002 VST-110/125-R 03-001 VST-55/125-T 03-002 VST-110/125-T 03-001 IMPORTANT: Observe correct polarity on the battery terminals. Polarity markings may vary from battery to battery.
-
Page 16: 106.3 Battery Connection Voltage Check
106.3 Battery Connection Voltage Check Using a digital volt-ohm meter, check for correct nominal battery voltage between DC Input NEG and POS wires. Refer to table in Section 106.2 for proper system DC voltage. Voltage reading should be ±10% of system DC voltage. 107. -
Page 17: 200.1 Safe Shut Down Procedure
200. Maintenance 200.1 Safe Shut Down Procedure CAUTION: To avoid possible equipment damage or personal injury, assume that there is AC voltage present inside the VST inverter system unit any time AC input power or DC battery voltage is applied. The inverter is capable of providing output voltage from the batteries even when there is no AC input line voltage. -
Page 18: 200.4 Routine Battery Inspection And Maintenance
200.4 Routine Battery Inspection and Maintenance Sealed Lead-Calcium Batteries Lead-Calcium cells are the most common type of battery used today in standby equipment. By design it is as maintenance free as a battery can be. It is recommended, however, that some simple steps be taken to increase system life and maximize reliability: A) A quarterly visual check of the batteries should be conducted to look for deformities in the cases and terminal corrosion.
