NVGEW V90800L / V90801L / V90802L / V90803L / V90805L

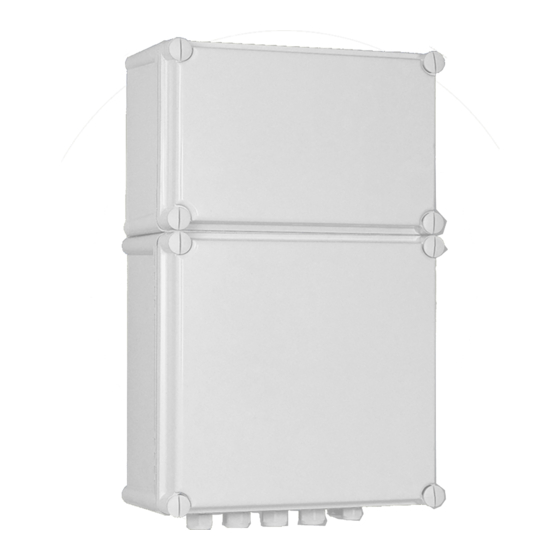

Emergency supply device NVG for the LOGICA system

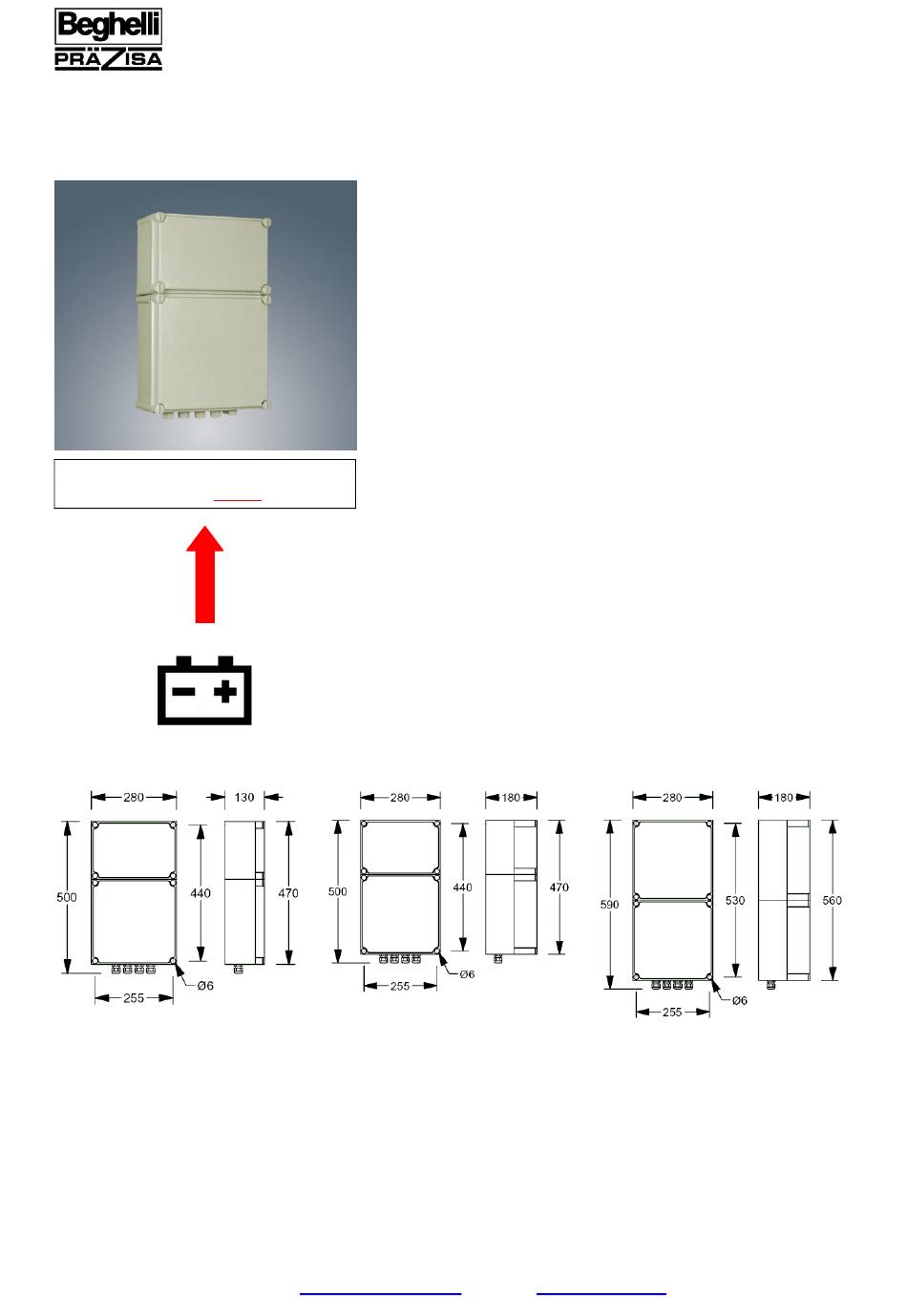

At the model V90805L the NVG body must be
mounted in a way that the connection poles of the
battery block are are located at the top!
V90800L
V90801L
INSTRUCTION MANUAL
E09060060 / 1494.0409E / V. 1.8
Beghelli PRÄZISA GmbH
E-Mail:
kontakt@beghelli.de
Type:
NVGEW
Order codes:
V90800L (6,5 Ah)
V90801L (13 Ah)
V90802L (28 Ah)
V90803L (40 Ah)
V90805L (55 Ah)
Technical data:
Mounting: surface wall mounting
Body: ABS, plastic
Mains supply: 198 V AC to 254 V AC / 50 Hz
Ambient temperature: 0 °C to 40 °C
Output voltage (mains operation): 230 V AC / 50 Hz (sinus voltage)
Output voltage (emergency operation): 230 V AC / 50 Hz (square voltage)
TOTAL OUTPUT POWER (OUT1 + OUT2):
Incandescent lamp: max. 120 W
Fluorescent lamp: max. 120 W
- inductive control gear: adjust „AC OUT" (see page 3)
- electronic control gear: adjust „DC OUT" (see page 3)
Output circuit fuses: 250 V / 1 A / time-lag / 5x20 mm
Battery type: lead acid battery
Battery block voltage: 12 V
Battery capacity: 6,5 Ah / 13 Ah (2x 6,5 Ah) / 28 Ah / 40 Ah / 55 Ah,
depending on model
Duration (emergency lighting) : 1 h or 3 h (adjustable)
V90802L
Page 1 of 5
Internet:
www.beghelli.de
or
230 V DC / 0 Hz
V90803L
V90805L
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Beghelli NVG
Summary of Contents for Beghelli NVG
- Page 1 Ambient temperature: 0 °C to 40 °C Output voltage (mains operation): 230 V AC / 50 Hz (sinus voltage) At the model V90805L the NVG body must be mounted in a way that the connection poles of the Output voltage (emergency operation): 230 V AC / 50 Hz (square voltage)
- Page 2 AC/DC OUT OUT1 ON OUT1 OFF OUT1 ON OUT2 ON OUT2 OFF OUT2 ON DALI LAMP not used not used DALI CTRL not used not used normal operation not allowed Beghelli PRÄZISA GmbH Page 2 of 5 E-Mail: kontakt@beghelli.de Internet: www.beghelli.de...
- Page 3 > USE WITH CENTRAL (LOGICA S OR LOGICA FM): The function AUTODIMMER must be assigned over the central (Logica S or Logica FM) to the NVG for the use of light switches on J25 / J26. The position of the DIP switch 1 on SW1 is not relevant.
- Page 4 GREEN THREE TIMES ORANGE BLINKING LED: 250 250 250 250 250 250 2250 loss of the synchronicity at test procedure (NVG off because of a too long mains failure) GREEN GREEN GREEN ORANGE ORANGE ORANGE To remedy this failure, a test synchronisation and a reset must be done (by central or autotest command).
- Page 5 NVGEW V90800L / V90801L / V90802L / V90803L / V90805L INSTRUCTION MANUAL E09060060 / 1494.0409E / V. 1.8 AUTOTEST COMMANDS: DURATION / INTERVALS COMMAND test synchronism and reset immediate test (duration) test stop (all tests will be stopped) Beghelli PRÄZISA GmbH Page 5 of 5 E-mail: kontakt@beghelli.de Internet: www.beghelli.de...
