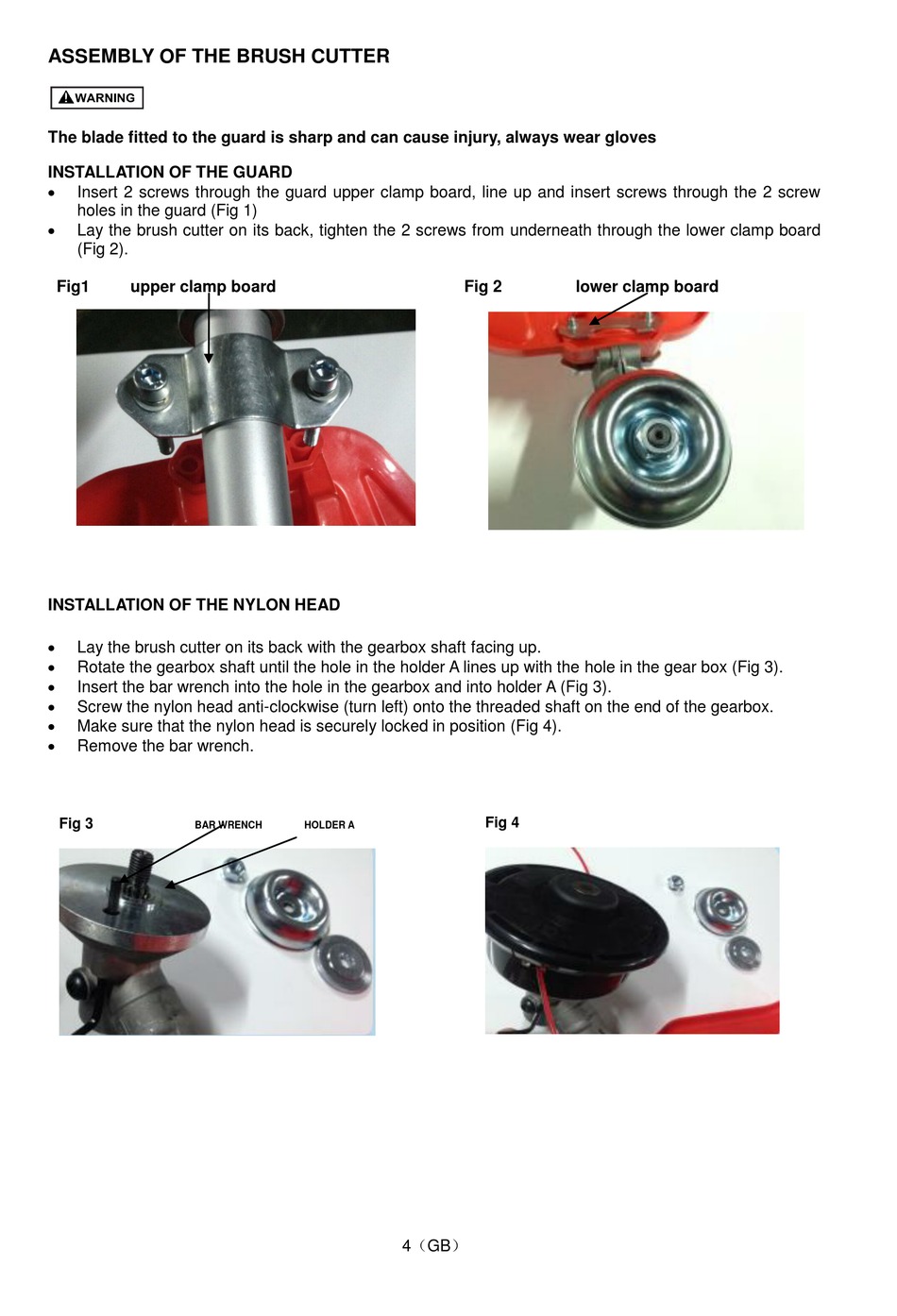

ASSEMBLY OF THE BRUSH CUTTER
The blade fitted to the guard is sharp and can cause injury, always wear gloves

INSTALLATION OF THE GUARD


Insert 2 screws through the guard upper clamp board, line up and insert screws through the 2 screw
holes in the guard (Fig 1)

Lay the brush cutter on its back, tighten the 2 screws from underneath through the lower clamp board
(Fig 2).
Fig1 upper clamp board

INSTALLATION OF THE NYLON HEAD


Lay the brush cutter on its back with the gearbox shaft facing up.

Rotate the gearbox shaft until the hole in the holder A lines up with the hole in the gear box (Fig 3).

Insert the bar wrench into the hole in the gearbox and into holder A (Fig 3).

Screw the nylon head anti-clockwise (turn left) onto the threaded shaft on the end of the gearbox.

Make sure that the nylon head is securely locked in position (Fig 4).

Remove the bar wrench.
Fig 3
BAR WRENCH
Fig 2
HOLDER A
4（GB）
lower clamp board
Fig 4
