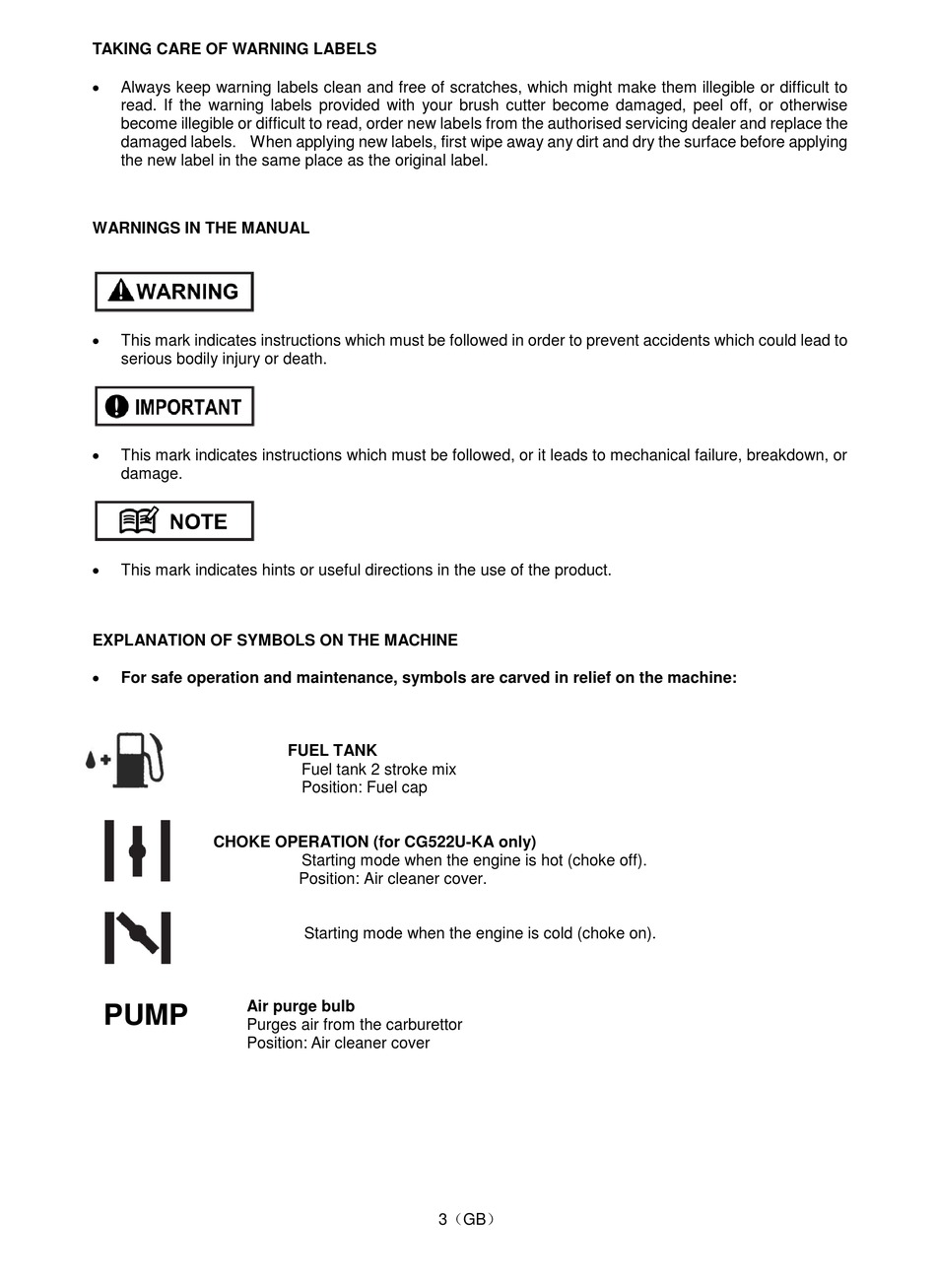

TAKING CARE OF WARNING LABELS


Always keep warning labels clean and free of scratches, which might make them illegible or difficult to
read. If the warning labels provided with your brush cutter become damaged, peel off, or otherwise
become illegible or difficult to read, order new labels from the authorised servicing dealer and replace the
damaged labels. When applying new labels, first wipe away any dirt and dry the surface before applying
the new label in the same place as the original label.

WARNINGS IN THE MANUAL


This mark indicates instructions which must be followed in order to prevent accidents which could lead to
serious bodily injury or death.

This mark indicates instructions which must be followed, or it leads to mechanical failure, breakdown, or
damage.

This mark indicates hints or useful directions in the use of the product.

EXPLANATION OF SYMBOLS ON THE MACHINE


For safe operation and maintenance, symbols are carved in relief on the machine:
CHOKE OPERATION (for CG522U-KA only)
Air purge bulb
PUMP
Purges air from the carburettor
Position: Air cleaner cover
FUEL TANK
Fuel tank 2 stroke mix
Position: Fuel cap
Starting mode when the engine is hot (choke off).
Position: Air cleaner cover.
Starting mode when the engine is cold (choke on).
3（GB）
