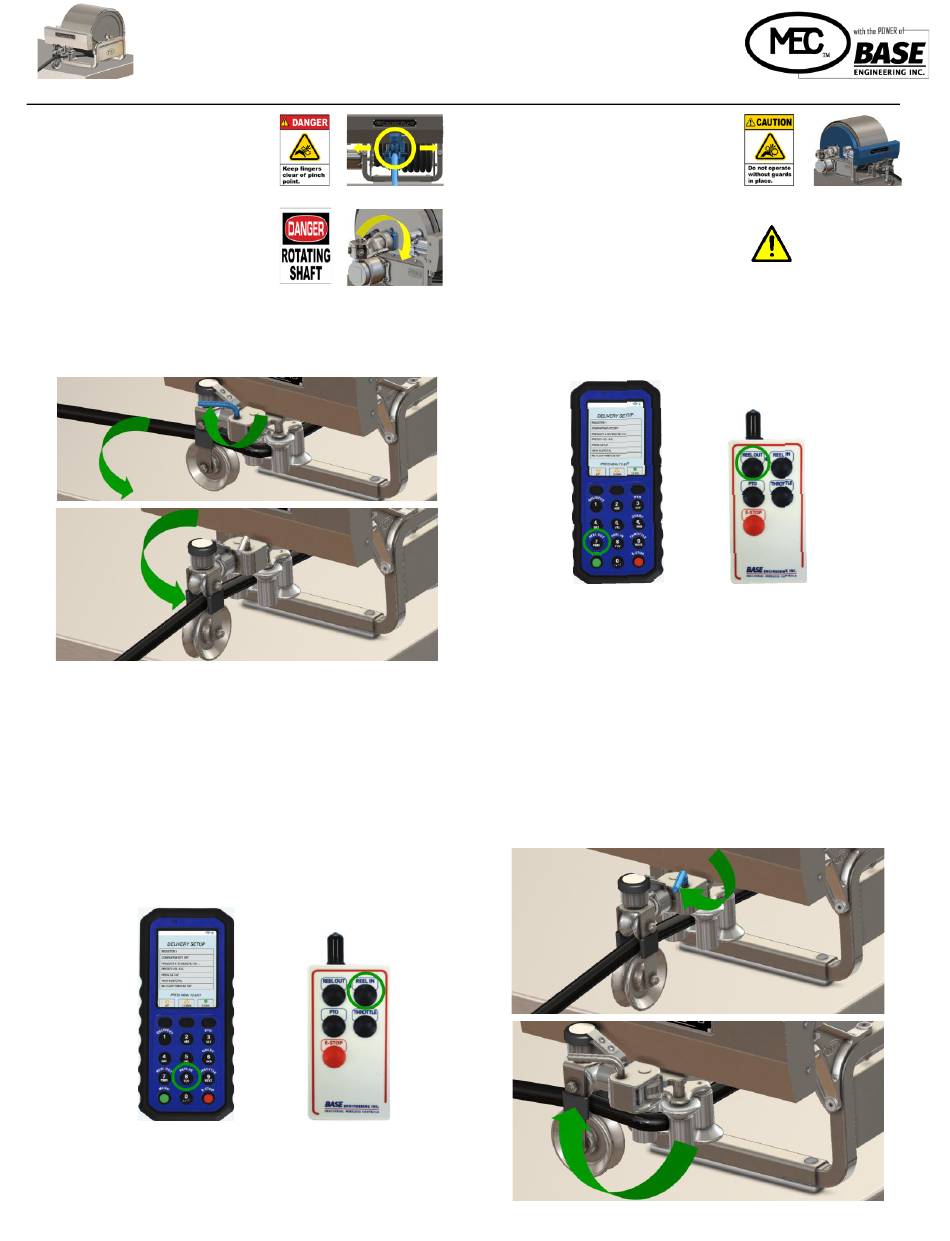

base engineering MEC EXCELA-WYND ME9000LH-17/25 Operating Instructions

BEFORE USING THE EXCELA-WYND™ HOSE REEL PLEASE READ THESE IMPORTANT SAFETY WARNINGS
WARNING!
Risk of injury from
pinch points – Keep hands and
fingers away from hose guide.
WARNING!
Risk of injury from
pinch / sever points – Keep
fingers away from inlet flange.

PULLING HOSE OUT

1.
Pull the filler valve toward the front of the reel, release
the latch and rotate the Gimbal until it locks in place.
Note: When starting to pull hose out, the motor drives the reel up to speed to reduce pulling effort. Slowing down or
stopping during Reel Out activates reel braking to keep excess hose from unspooling. Reel braking is automatically
released after one second to allow more hose to be pulled out. Not pulling hose out for two minutes cancels Reel Out.
Pressing the "Reel Out" button again releases reel braking, signals that it's ready and restarts the two minute timer.

REWINDING HOSE

1.
Press and hold the "REEL IN" button on the PC3 or
ASKW remote and walk the filler valve back to the truck.
NOTE: To prevent accidental operation while filling,
REEL IN is disabled when the PTO is running.
2.
Release the "REEL IN" button when you reach the truck
and stow the filler valve.
Form #1176-OP, Excela-Wynd™ Operating Instructions
ME9000LH-17/25 EXCELA-WYND
HOSE REEL OPERATING INSTRUCTIONS
OR
™
WARNING!
Risk of injury from
pinch points – Do Not operate hose
reel without gear and chain guards
in place.
WARNING!
This product contains a
chemical known to the state of
California to cause cancer and birth
defects or reproductive harm.
2.
Press and release the "REEL OUT" button on the PC3 or
ASKW and keep remote with you.
NOTE: Reel brake is released and motor turns briefly
to signal that Reel Out mode is active.
3.
Walk the filler valve to the tank.
3.
Release the latch, rotate the Gimbal until it locks in
place and rewind any remaining hose onto the reel.
Page | 1
OR
P/N 9000584 Rev E, 7-7-22
