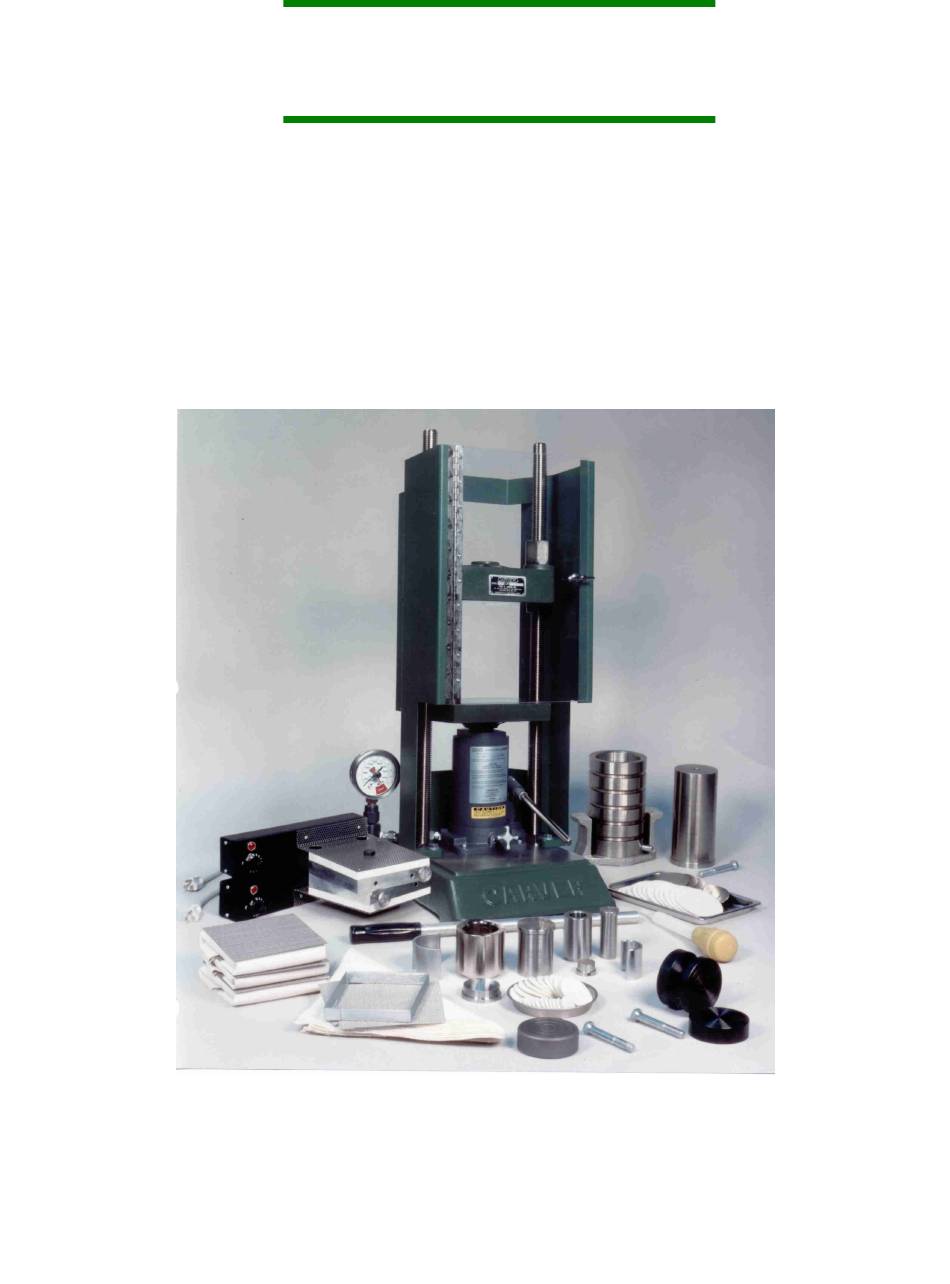

CARVER

OPERATION, INSTALLATION AND MAINTENANCE MANUAL

TWO and FOUR POST MANUAL HYDRAULIC PRESSES

HEATED AND UNHEATED

IMPORTANT:

PLEASE READ CAREFULLY BEFORE INSTALLING OR OPERATING THIS EQUIPMENT

CARVER, INC.

1569 Morris Street, P.O. Box 544

Wabash, IN 46992-0544

PH: 260-563-7577 FAX: 260-563-7625

Table of Contents

Need help?

Do you have a question about the Mini C and is the answer not in the manual?

Questions and answers

Summary of Contents for Carver Mini C

Page 1 OPERATION, INSTALLATION AND MAINTENANCE MANUAL TWO and FOUR POST MANUAL HYDRAULIC PRESSES HEATED AND UNHEATED IMPORTANT: PLEASE READ CAREFULLY BEFORE INSTALLING OR OPERATING THIS EQUIPMENT CARVER, INC. 1569 Morris Street, P.O. Box 544 Wabash, IN 46992-0544 PH: 260-563-7577 FAX: 260-563-7625...
Page 2 29.92" Hg (10,331 Kg/m ) at sea level and using 50 Hz electrical current. All of these factors are important considerations when selecting a hydraulic press. CARVER, INC. can advise you on proper selection and sizing of systems for the operating environment at your location.
Page 3: Table Of Contents
MAINTENANCE ......................5-1 TROUBLESHOOTING.........................5-1 HYDRAULIC UNIT - AIR BLEED PROCEDURE ..............5-2 ELECTRICAL ..........................5-3 MOLD SIZE VERSUS TONNAGE CHART................5-3 SECTION SIX HYDRAULIC OIL ......................6-1 SECTION SEVEN ACCESSORY EQUIPMENT ..................7-1 SECTION EIGHT CARVER, INC. SERVICES....................8-1 TECHNICAL ASSISTANCE ......................8-1 RETURNED MATERIAL POLICY....................8-1 Carver Inc...
Page 4 Hydraulic Unit Drawings - 12 ton, 25 ton ....................11-1 Hydraulic Unit - Section View (Typical)....................11-1 Hydraulic Unit Drawing - 30 ton........................11-1 Gauge Union Coupling Assembly - Typical....................11-1 Hydraulic Cylinder - 30 ton........................11-1 Electrical Symbol Cross Reference ......................11-1 Electrical Drawings ............................11-1 Press Assembly Drawings ..........................11-1 Carver Inc...
Page 5: Section One
ACCESSORIES CARVER, INC. offers a variety of standard accessories for your press including Heated Platens, Heating and Cooling, or Cored Platens, Test Cylinder Outfits, French Pressure Cells, Swivel Bearing Plates, and Cage Equipment. All original CARVER accessories are designed and manufactured by CARVER, INC.
Page 6: Section Two
NOTICE: If you believe that your equipment has a defect, which could cause injury, you should immediately discontinue its use and inform CARVER, INC., at our address listed in this manual. The principle factors, which can result in injury, are: Failure to center the work over the ram in the platen area, resulting in eccentric loading, tilting, and possible movement of the work piece, which can then become a projectile;...
Page 7: Operator Responsibility
NEVER place your hands or any part of your body in the mold area or other dangerous locations. In addition to the crushing hazard presses equipped with heated platens present a hazard of burn from hot platen and mold surfaces. Carver Inc...
Page 8 Shut off power to the press when it is not in use. Lock the control panel or disconnect switch in the OFF position or unplug press from power source. Report the following occurrences IMMEDIATELY: unsafe operation or condition unusual press action leakage improper maintenance Carver Inc...
Page 9: Mold Setters Responsibility
Make sure all persons are clear of the press and remove all objects from mold area (tools, nuts, bolts, clamps, bars) before cycling. • Watch the press in operation to make sure molds and equipment are working properly. Carver Inc...
Page 10: Maintenance Responsibility
(portable "a" frames, electric boom trucks, fork trucks, overhead cranes) be sure the load does not exceed the capacity of the handling equipment or cause it to become unstable. Carefully test the condition of lifting cables, chains, ropes, slings, and hooks before using them to lift a load. Carver Inc...
Page 11 Do not restore power to the press until all persons clear the area. Start and run the press until you are sure all parts are functioning correctly. BEFORE. you turn the press over to the operator for production, install and adjust all guards and safety devices. Carver Inc...
Page 12: Section Three
INSTALLATION TWO POST PRESS DESCRIPTION 3620CE CATALOG # 3850CE 3989CE 3851CE 3853CE 3968CE 4120CE 4350CE 4389CE 3978CE MODEL Mini C Mini C Model C Model M 12-10 12-10H Pellet Pellet Model MH CLAMP FORCE US TONS 106.8 222.5 106.8 106.8 106.8...
Page 13: Four Post Press Description
457 x 457 457 x 457 HEIGHT 1091 WEIGHT UNHEATED lbs HEATED lbs NOISE LEVEL <70db(A) <70db(A) <70db(A) <70db(A) <70db(A) <70db(A) FULL LOAD CURRENT 230V 21.66A 43.32A MAX. SYSTEM PRESSURE 7295 7295 7295 7295 9709 9709 N/A = NOT APPLICABLE Carver Inc...
Page 14: Four Post Press Description - Cont
1091 1091 1091 1091 WEIGHT UNHEATED lbs HEATED lbs NOISE LEVEL <70db(A) <70db(A) <70db(A) <70db(A) <70db(A) <70db(A) FULL LOAD CURRENT 230V 21.66A 43.32A 21.66A 43.32A MAX. SYSTEM PRESSURE 9709 9709 8488 8488 8488 8488 N/A - NOT APPLICABLE Carver Inc...
Page 15: Laminating Press Description
SETTING UP Installation Summary: • Bolt press to bench. DO NOT pump jack without first securing the presses base bolster to an appropriate work surface to avoid the hazard of tipping over. • Rotate gauge and tighten coupling. Carver Inc...
Page 16: Gauge Information
RAM FORCE CALCULATION All CARVER gauges are calibrated for the specific ram diameter of the hydraulic unit. The Mini "C" and Model "C" 12-ton (107Kn) ram is 3.294 square inches (21.253 square cm) and the Model "M" 25-ton (223 Kn) ram area is 5.157 square inches (33.273 square cm).
Page 17: Filling The Oil Reservoir
FILLING THE OIL RESERVOIR The hydraulic unit is filled with oil at CARVER, INC. and should not require additional oil. In the event there is some oil loss, lower the platen, remove the sintered breather plug, and fill with oil up to the level of the filler hole on 12 & 25 (107 &...
Page 18 The outlet manifold must be plumbed downward to drain the platens properly. If the manifold is plumbed upward, CARVER, INC. recommends the use of a check valve to eliminate backflow into the platens and a pump to recirculate the drain water.
Page 19: Section Four
Always check the pressure rating of the pressed apparatus prior to pressing to be sure it is rated for the applied pressure. IMPORTANT: The gauge on the CARVER laboratory press shows the total force exerted by the press. It DOES NOT show the pressure on the specimen (PSI/BAR). To find the PRESSURE (P) on the specimen, the observed FORCE (F) reading on the gauge must be divided by the specimen AREA (A), per the equation P = F/A.
Page 20: Operating The Hydraulic Press
Please keep in mind that no hydraulic unit will maintain constant pressure without some additional pumping. This is especially true when pressing against a soft or yielding material. Some pumping is required to offset normal packing leakage. After the desired pressure is obtained, an occasional stroke or two will normally maintain the pressure. Carver Inc...
Page 21: Daylight Adjustment
#100334D Model 30-12-2H 30-Ton(267Kn) (4129CE) drawing #100335D Model 30-12-L 30-Ton(267Kn) (4132CE) drawing #100338D Manual Pellet 12-Ton(107Kn) (3620/3978CE) drawing #100377D Manual Pellet 12-Ton(107Kn) (4350CE) drawing #100450D Threaded columns allow for daylight adjustment between the moving bolster and top bolster. Carver Inc...
Page 22 IMPORTANT: Four Post models utilize a set screw in the column nuts. These must be loosened prior to adjusting daylight, and retightened after adjusting daylight. WARNING: After adjusting the daylight, be sure the top bolster is parallel to the top surface of the base bolster before applying pressure. Carver Inc...
Page 23: Operating Presses Equipped With Heated Platens
To shut down the press, select the [OFF] position on the ELECTRICAL DISCONNECT switch or press power off button. WARNING: When operating a press with heated platens, wear the appropriate personal safety gear, such as, insulated gloves to protect arms and hands from burns. Carver Inc...
Page 24: Laminating Presses
LAMINATING PRESSES Introduction We are pleased to provide a CARVER Laminating Press for your operations. Although this equipment is a standard apparatus for general laminating work, these presses have wide use for other applications where heating and chilling under pressure is required. Many of these presses are in daily use by the Armed Forces, Government Agencies, Universities and Industry for important jobs where securities, ease of operation and quality production are essential.
Page 25 Each press is supplied with one pint (.47 liters) of Special Hydraulic Oil #2170, but this should only be needed if there has been some visible loss. Keep this bottle sealed from dirt and dust. We advise using only CARVER Hydraulic Fluid or those recommended as substitutes earlier in this manual.
Page 26 Holding plate. The stack is prepared as above and is then ready to be placed in the hot opening of the press for lamination. If fewer than six layers are used, see time, temperature, pressure recommendations below. Carver Inc...
Page 27 Carver Inc...
Page 28 This procedure is continued using the thick stack for the next transfer, thereby producing a stack of laminations every six to eight minutes. 4-10 Carver Inc...
Page 29 Often the best results come after a number of trial runs. The CARVER Laminating Press is adjustable for use with any of the thermoplastic materials used laminating. Figures given on the preceding pages for temperature, pressure and time are based on the use of regular plastic sheets, either .010"...
Page 30 It will be readily seen that the two stacks will not have equal pressure per square inch applied to the plastic. 13. Many of the thermoplastic materials on the market may be used with the CARVER Laminating Press such as acetate, vinylite and certain acrylic materials. Pressures, temperatures and time for laminating the various materials will however, be different.
Page 31: Section Five
SECTION FIVE MAINTENANCE Each CARVER Laboratory Press is thoroughly tested to provide trouble-free performance. Manufacturing and assembly processes are closely controlled in our factory under rigid inspection and testing procedures. Follow these instructions, and with proper care, your press should give many years of trouble-free service.
Page 32: Hydraulic Unit - Air Bleed Procedure
IMPORTANT: To avoid damage to the hydraulic unit ram seal, DO NOT exceed the maximum ram travel. Refer to Section 3 to determine the arm travel of your press. Refer to the label on the front of the hydraulic unit. Carver Inc...
Page 33: Electrical
410.48 38.17 34.63 22.86 81.00 522.61 48.60 44.09 25.40 78.54 506.74 47.12 42.75 25.40 100.00 645.20 60.00 54.43 27.94 95.03 613.13 57.02 51.73 27.94 121.00 780.69 72.60 65.86 30.48 113.13 729.91 67.85 61.55 30.48 144.00 929.09 86.40 78.38 Carver Inc...
Page 34: Section Six
RECOMMENDED HYDRAULIC OILS FOR CARVER PRESSES The hydraulic fluid is a special grade which conforms to MIL-SPEC #17672-A. CARVER Special Hydraulic Fluid (Catalog #2170) is supplied in one-pint (.47 liters) containers. Contact CARVER, INC. Parts department for information. Any good grade of mineral base hydraulic oil with anti-wear and anti-foaming additives in the viscosity range of 150 SSU @ 100°...
Page 35: Section Seven
SECTION SEVEN ACCESSORY EQUIPMENT Thank you for the opportunity to supply CARVER equipment for your requirements. If there are any questions regarding the operation of this press or other CARVER accessories, please contact us for assistance. CARVER offers a wide range of accessory equipment to satisfy your specific application(s).
Page 36: Section Eight
RETURNED MATERIAL POLICY CREDIT RETURNS Prior to the return of any material, authorization must be given by CARVER, INC. A RMA number will be assigned for the equipment to be returned. A reason for requesting the return must be given.
Page 37 SECTION NINE WARRANTY WARRANTY RETURNS Prior to the return of any material, authorization must be given by CARVER, INC. An RMA number will be assigned for the part or equipment to be returned. Reason for requesting the return must be given.
Page 38 SECTION TEN PICTOGRAM/TAG INFORMATION WARNING TAGS CRUSHING INJURY HOT SURFACE HIGH VOLTAGE INSIDE ENCLOSURE ONLY 10-1 Carver Inc...
Page 39 WARNING TAGS cont..SHOCKING HAZARD HIGH VOLTAGE 10-2 Carver Inc...
Page 40 POWER ON POWER OFF IDENTIFICATION TAGS TEMPERATURE CONTROL UNIT NUMBER 1 FOR PLATEN 1 TEMPERATURE CONTROL UNIT NUMBER 2 FOR PLATEN 2 TEMPERATURE CONTOL UNIT NUMBER 3 FOR PLATEN 3 TEMPERATURE CONTOL UNIT NUMBER 4 FOR PLATEN 4 10-3 Carver Inc...
Page 41 PLATEN NUMBER 1 PLATEN NUMBER 2 PLATEN NUMBER 3 PLATEN NUMBER 4 10-4 Carver Inc...
Page 42 PRESS IDENTIFICATION TAG PRESS IDENTIFICATION TAG ELECTRICAL INFORMATION TAG 10-5 Carver Inc...
Page 43 SECTION ELEVEN APPENDIX Hydraulic Unit Drawings - 12 ton, 25 ton Hydraulic Unit - Section View (Typical) Hydraulic Unit Drawing - 30 ton Gauge Union Coupling Assembly - Typical Hydraulic Cylinder - 30 ton Electrical Symbol Cross Reference Electrical Drawings Press Assembly Drawings Special Press Addendum 11-1...
Page 44 11-2...
Page 45 11-3...
Page 46 CP13-14 329078 Tool Pump valve Insertion Tool CP13-44 329061 Tool 1/4 Ball Seating Tool CP13-42 329063 Tool 7/16 Ball Seating Tool CP13-43 329064 Tool Threaded Socket Tool CP13-41 329080 (for release valve removal *CARVER #3789 REPR, KIT (WABASH #995.00157) 11-4...
Page 47 MAINTENANCE In servicing hydraulic units, cleanliness is of the utmost importance. A clean work place and proper tools are necessary to insure efficient and effective repair. Special tools can be furnished on request. FILLER / BREATHER CAP OIL RESERVOIR FILL OIL TO WITHIN 2"...
Page 48 AIR BLEEDING Air accumulation in a hydraulic system will cause erratic action. This may appear as pump failure to the inexperienced user. For this reason, it is advisable to air bleed each pump before attempting to operate. To remove air from the pump, open release valve with the pump in an upright position.
Page 49 PUMP PISTON Leakage of oil around the pump piston indicates worn or damaged piston packing. To replace packing: Remove piston actuating linkage. Remove piston. (See piston drawing.) Remove all packing. (See piston drawing.) Clean all parts and dry with compressed air. Install new packing, wipers and static seals, being sure, packing sealing lips, face down toward the pressure.
Page 50 PUMP VALVES If the pump fails to supply pressure or if the pump piston is under pressure at all times, the pump valves may need a cleaning. Stand pump in upright position while removing valve plug and valve seal. Tilt pump to remove valve springs and balls.
Page 51 RELEASE VALVE If the pump fails to lift or hold a load, the release valve may be dirty. From back of pump remove release valve plug, release ball spring and release ball. From front remove release lever pin, release lever, and release plunger. Clean release valve chamber and inspect ball seat.
Page 52 LARGE PISTON PUMP RELIEF VALVE If the pump fails to lift faster under no load than it does under heavy load, the large piston relief valve may be dirty. This valve is covered with sealing compound to prevent tampering with large piston changeover point. Remove sealing compound, relief valve screw, valve spring and relief plunger.
Page 53 NOTES: 11-11...
Page 54 11-12...
Page 55 11-13...
Page 56 11-14...
Page 57 11-15...
Page 58 11-16...
Page 59 11-17...
Page 60 11-18...
Page 61 11-19...
Page 62 11-20...
Page 63 11-21...
Page 64 11-22...
Page 66 11-24...
Page 67 11-25...
Page 68 11-26...
Page 69 11-27...
Page 70 11-28...
Page 71 11-29...
Page 72 11-30...
Page 73 11-31...
Page 75 11-33...
Page 76 11-34...
Page 77 11-35...
Page 78 11-36...
Page 79 11-37...
Page 80 11-38...
Page 81 11-39...
Page 82 11-40...
Page 83 11-41...
Page 84 11-42...
Page 85 11-43...
Page 86 11-44...
Page 87 11-45...
Page 88 11-46...
Page 89 11-47...
Page 90 11-48...
Page 91 11-49...
Page 92 11-50...
Page 93 11-51...
Page 94 11-52...
Page 95 11-53...
Page 96 11-54...
Page 97 11-55...
Page 98 11-56...
Page 99 11-57...
Page 100 11-58...
Page 101 11-59...
Page 102 11-60...
Page 103 11-61...
Page 104 11-62...
