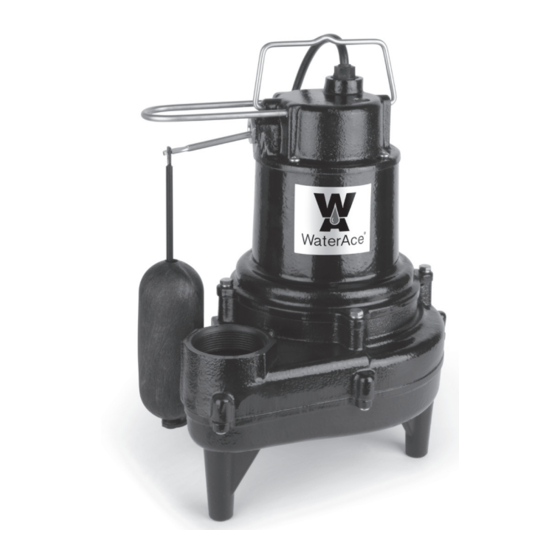

WaterAce WA50SASW Owner's Manual

Cast iron sewage pumps
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

IMPORTANT SAFETY INSTRUCTIONS
Carefully read and follow all safety
instructions in this manual and on pump.
SAVE THESE INSTRUCTIONS - This manual
contains important instructions that should be
followed during installation, operation, and
maintenance of the product.
Save this manual for future reference.
Safety Labels
This is the safety alert symbol. When you
see this symbol on your pump or in this manual,
look for one of the following signal words and be
alert to the potential for personal injury!
not avoided, will result in death or serious injury.
if not avoided, could result in death or serious
injury.
not avoided, could result in minor or moderate
injury.
NOTICE
indicates practices not related to
personal injury.
Keep safety labels in good condition. Replace
missing or damaged safety labels.
OWNER'S MANUAL
WA50SASW
1/2 HP
Cast Iron
Sewage Pumps
CONTENTS:
General Safety . . . . . . . . . . . . . . . . . . . . 1
Installation . . . . . . . . . . . . . . . . . . . .3 & 4
Troubleshooting . . . . . . . . . . . . . . . . . . . 5
Warranty . . . . . . . . . . . . . . . . . . . . . . . . .6
Indicates a hazard which, if
Indicates a hazard which,
Indicates a hazard which, if

General Safety

Risk of burns. Do not
touch an operating motor. Motors are de-
signed to operate at high temperatures. To
avoid burns when servicing pump, allow it to
cool for 20 minutes after shut-down before
handling.
Do not allow pump or any system compo-
nent to freeze. To do so will void warranty.
Pump water only with this pump.
Periodically inspect pump and system com-
ponents.
Wear safety glasses at all times when work-
ing on pumps.
Risk of explosion. Pump
body may explode if used as a booster
pump.
BEFORE YOU START
A sewage pump is an electrical
device designed to operate in
inheretly wet environments.
ALWAYS USE EXTREME
CAUTION
when installing or
maintaining this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WA50SASW and is the answer not in the manual?

Questions and answers

Related Manuals for WaterAce WA50SASW

Summary of Contents for WaterAce WA50SASW

  • Page 1: Table Of Contents

    OWNER’S MANUAL WA50SASW 1/2 HP Cast Iron Sewage Pumps CONTENTS: BEFORE YOU START General Safety ....1 A sewage pump is an electrical device designed to operate in Specifications &...

  • Page 2: Specifications & Performance

    APPLICATIONS Ideal for Below Grade Toilets, Laundry Facilities and for Use at Construction Sites. SPECIFICATIONS & PERFORMANCE Capacity Cord Solids Model Volt Amps (GPH at 0’) Max Head Construction Impeller Length Pumped WA50SASW 8,200 22’ Cast Iron Thermoplastic 10’ 2”...

  • Page 3: Installation

    INSTALLATION Do not work on pump until (b) Cutting off the ground pin or using an power is unplugged. adapter fitting. (c) Working on pump or switch while Do not cut off ground pin or plugged in. use an adapter fitting. (d) Removing motor housing, unscrewing Do not use an extension cord.
  • Page 4 INSTALLATION Check valve Union Gate valve Power Cord Discharge pipe Pump can be installed with ABS, PVC, polyethylene or galvanized steel pipe. Proper adapters are required to con- nect plastic pipe to pump. Always install a union in the discharge line, just above the sump pit to al- low for easy removal of the pump for Inlet Pipe...

  • Page 5: Troubleshooting

    TROUBLE SHOOTING CHECKLIST (Caution: shut off power to pump) PROBLEMS POSSIBLE CAUSES/SOLUTIONS • Line circuit breaker is off, or fuse is blown or loose PUMP DOES NOT RUN • Water level in sump has not reached turn-on level as indicated in AND MAKES HUMMING installation drawing.

  • Page 6: Warranty

    LIMITED WARRANTY Retain Original Purchase Receipt for Warranty Eligibility Manufacturer warrants to the original consumer purchaser (“Purchaser” or “You”) that its products are free from defects in material and workmanship for a period of twenty-four (24) months from the date of the original consumer purchase. If, within twenty-four (24) months from the original consumer purchase, any such product shall prove to be defective, it shall be repaired or replaced at manufacturer’s option, subject to the terms and conditions set forth herein. Note that this limited warranty applies to manufacturing defects only and not to ordinary wear and tear.
