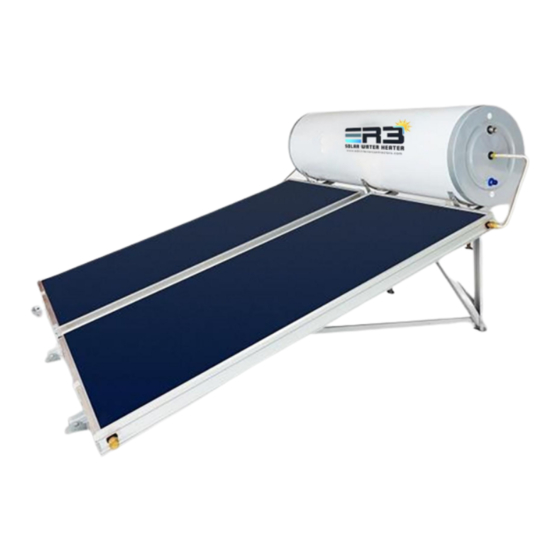

- Page 1 Operation Manual ER3 Solar Water Heater System Document: ER3-HP300-210709 TYCHON LLC. 1511 Ave. Ponce de León Bldg. 1300Apt ,1341 Ciudadela, San Juan, 00909,Puerto Rico Phone:787-920-9225 admin@tychonpr.com...
- Page 2 ENERGY STAR CERTIFIED Water Heaters ER3 - ER3 : FPS/HP 300 Specifications ENERGY STAR Partner: Tychon LLC Brand Name: Model Name: Model Number: FPS/HP 300 Type: Solar with Electric Backup Solar System Type: Direct Thermosyphon Solar Collector Type: Flat Plate...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Feature..................3 User instruction...............3 Production performance and parameters......4 Production connection............5 Installation Guide..............6 Pipeline Installation............... 8 Use Instructions..............11 Maintenance................12 Decommissioning of the system........... 13 Operation method..............13 Common Troubleshooting............ 14 Packaging................15 System Performance Data........... 16... -
Page 4: Feature
It is environment friendly and also safety. Our flat plate solar collector has passed SRCC and Energy Star Certificates(holder Tychon LLC), which has higher efficient and heat absorption. As long as there is sunshine, can continuously bring hot water. -
Page 5: Production Performance And Parameters
Production performance and parameters Shape Parameters ： Installation D1(mm) D2(mm) A(mm) B(mm) H(mm) Model Angle （mm） FPS/HP300 1775 1600 1750 1700 20º Technical Parameters Tank Rated Collector Absorber Collector Size Total net Model Capacity Pressure Quantity Area weight（kgs） （mm）... -
Page 6: Production Connection
2. Production connection Upper Bottom Reserved Inlet Outlet circulation circulation Model valve hole hole FPS/HP300 G3/4 G3/4 G3/4 G3/4 G3/4 G3/4... -
Page 7: Installation Guide
3. Installation Guide Determine the installation position a. View top layer environment and indoor pipeline arrangement and also consult user’s suggestions to determine the position of the scientific and reasonable installation. The position can be a good load bearing and fully sunlight and also convenient fluctuation water pipe layout and heat preservation. - Page 8 nstallation of bracket and tank 2) I a. Open the packages of tank, bracket and collector, according to the packing list to check parts is complete or not. b. Firstly to install the both sides of front legs and then install middle bar. c.
-
Page 9: Pipeline Installation
4. Pipeline Installation PT valve Standard setting: 87, 100, 125, 150psi · (0.6, 0.7, 0.86, 1.0MPa) Temperature relief: 99℃ · Size: 3/4 · Installation PT valve should be installed on the water heater top or side. The temperaturesensing · element must be immersed in the water within the top 6” of the tank. The eliminating pipeline should be installed under the relief valve. - Page 10 The ways of pipeline to install through the roof Flat roof Sloping roof Piping shaft...
- Page 11 Warning： 1. Exposure without water is strictly prohibited. 2. Please use the teflon tape or sealing ring on the pipeline connections to prevent leaking. 3. If the inlet water pressure approaches or exceeds the safety relief threshold (0.6Mpa), relief port of safety relief valve has continuous drip phenomenon, it can be installed a reducing valve away from the inlet.
-
Page 12: Use Instructions
Wind and snow load: Wind load: max 200kg/m2 Snow load: max 600kg/m2 Withstand freezing of the system: using the system above 0℃. Commissioning of the system: Communicate with users to find the appropriate installation location. Firstly fix the support structure of the system, put the tank on the support structure, install the flat plate collector. -
Page 13: Maintenance
● Frost damage: frost maybe will lead to the system cannot use. The system are not suitable for locations that are prone to freeze conditions or where the air temperature can fall below 5 ℃. When the temperature surrounded is under 0 ℃, please drain the water of whole system to protect all components. -
Page 14: Decommissioning Of The System
7. Decommissioning of the system If need removal system, follow these steps: First, close the tap water pipe valve in the main pipeline to the system; b) Drain the water of the water tank; c) Removal the water tank, heat collector; d) Remove the bracket, and then disassembleit;... -
Page 15: Common Troubleshooting
9. Common Troubleshooting phenomenon Reason Solution There is too much dust on the collector Wipe the dust on the collector surface or have Remove the obstructions in obstructions in front front of collector Water temperature of collector is not high on sunny day Pipe insulation is bad Call the service hotline... -
Page 16: Packaging
10. Packaging 1. All components of the system packaged with foam and cartons. 2. In the transportation, all components of the system must do the waterproof, moisture- proof and forbidden to collision. According to the warning mark on cartons. 3. In the storage, all components of the system must do the waterproof, moisture-proof and forbidden to collision. -
Page 17: System Performance Data
11. System performance data For model Tychon FPS/HP 300 with water tank capacity of 300L 2.40 Solar Energy Factor (SEF):... - Page 18 For model Tychon FPS/HP 300 with water tank capacity of 300L , Solar Uniform Energy Factor (SUEF):...
