Summary of Contents for TYCHON ER3

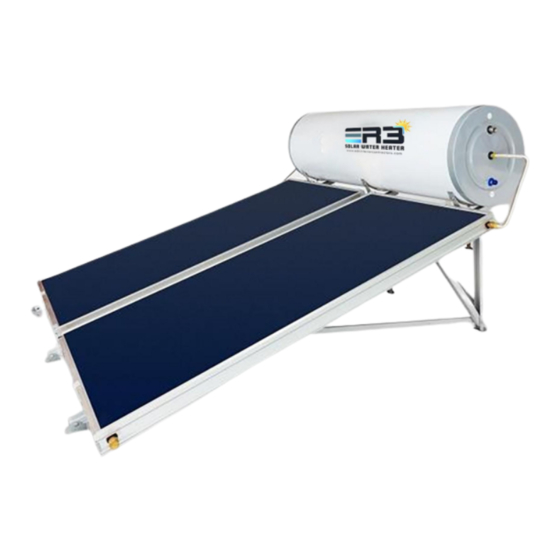

- Page 1 TYCHON LLC. 1511 Ave. Ponce de León Bldg. 1300Apt ,1341 Ciudadela, San Juan, 00909,Puerto Rico Phone:787-920-9225 admin@tychonpr.com Installation Manual ER3 Solar Water Heater System Document: ER3-HP300-210708...
- Page 2 ENERGY STAR CERTIFIED Water Heaters ER3 - ER3 : FPS/HP 300 Specifications ENERGY STAR Partner: Tychon LLC Brand Name: Model Name: Model Number: FPS/HP 300 Type: Solar with Electric Backup Solar System Type: Direct Thermosyphon Solar Collector Type: Flat Plate...
-
Page 3: Table Of Contents
Why is there water discharge for the pressure valve? What should I check before making a service call? Solar collector shading Electric (ER3) System not operating Is there excessive water discharge for the Valves? Are you using more hot water than you think? -
Page 4: Owners Information
Owners Information As the owner of an ER3 solar water heater there are some questions you may have about the system and how it operates. The solar collector(s) provided with our ER3 system has been certified for performance by the SRCC. -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS Important Note: Do not commence an installation until all Occupational Health and Safety issues associated with working on and lifting components onto a roof have been addressed. All work associated with the installation must comply with local authority regulations. Where these installation instructions and local regulations are in conflict, local regulations must prevail. -
Page 6: System Capacities
(mm) QTY(pcs) PG/2.0-80 2000*1000*80 System Parts Numbers ER3 P/N Description T300-C ER3 Solar collector(s) two pieces ,PG/2.0-80 T300-T ER3 Solar storage tank: HP300 T300-D Tank drain, drain valve, DR-3/4” T300-TP Temperature and Pressure Relief Value, Way-20 T300-B Magnesium bar, 3/4”, length:18cm... -
Page 7: The Ways Of Pipeline To Install Through The Roof
The ways of pipeline to install through the roof Flat roof Sloping roof Piping shaft Safety and relief valve discharge pipes shall be of rigid pipe that is approved for the temperature of the system. The discharge pipe shall be the same diameter as the safety or relief valve outlet. Safety and relief valves shall not discharge so as to be a hazard, a potential cause of damage or otherwise a nuisance. -
Page 8: Building Penetrations
J-Bolts – J-bolt mounting is preferred in installations where the roof truss members are not easily identified from the outside of the roof. Clearance holes for the J-bolts are typically drilled from inside the attic space. Two install service personnel are typically required, one in the attic space and one on the roof, when installing J-bolts to insure the J-bolt is secured properly. -
Page 9: Mounting The Collector
Mounting the Collector The collector installation procedure is as follows: From the inside of the roof, in the attic crawl space, measure the center-to-center distance between the roof trusses. This distance is required to secure the mount clips to the collector prior to attaching the collector to the roof structure. -
Page 10: Plumbing Connections
When the system is proven water tight, power can be applied to the ER3 system. To test that the element is operational turn the circuit breaker in the switch board on and off, you should see the power meters speed change during this action. -
Page 11: Operating Instructions
How do I operate the system? An ER3 solar water heater is designed for fully automatic operation, so there is nothing you need to do for day to day system operation. The system operates at service (city) water pressure and is thermally protected against temperatures in excess of 210°F. -
Page 12: Common Troubleshooting
Common Troubleshooting phenomenon Reason Solution Wipe the dust on the collector There’s too much dust on the Collector surface or Remove the obstructions in front of Water temperature is have obstructions in front of collector collector not high on sunny day Pipe insulation is bad Call the service hotline No tap water supply... -
Page 13: Maintenance
MAINTENANCE System Maintenance The ER3 system is designed such that there is little to do regarding system maintenance. Personally inspecting or servicing the system is not recommended. Should you decide to personally inspect the roof mounted system it is essential that you use all safety devices required to ensure your safety. Glass cleaning usually occurs by natural rainfall, however if the installation is in an industrial (or similar) area with high levels of airborne particles then a qualified person can clean the collector glass with normal window cleaning chemicals and equipment. -
Page 14: Hazards
The solar collectors used in this system have a design life of 30+years. Water storage tanks are designed for 12- 20years of use. The lesser components, such as pumps and valves are designed for 5+ years, however, are more likely to foul, as described above, if not maintained properly. Hazards Solar collectors become very hot when in direct sun with no fluid being circulated through them. -
Page 15: Warranties And Disclaimers
All returns are subject to return authorization. No returned merchandise will be accepted without prior authorization from Tychon. If the return is authorized, the buyer will be issued a return authorization (“RA”) number, which must be clearly marked on the package. TYCHON will credit the purchase price of all normally stocked merchandise returned in good condition, in original packaging, within 30 days of purchase. - Page 16 Upon receipt of a Return Authorization, the installer/contractor shall obtain an absorber plate from the distributor or dealer where the collector was purchased, and arrange for the absorber plate to be returned to TYCHON. TYCHON may ship a replacement absorber plate to the distributor/dealer in good faith, in anticipation of the returned plate, for failure determination.
-
Page 17: System Schematic Drawings
System Schematic Drawings... -
Page 18: Installation Record
Please complete this page as a record of the installation details for your reference to determine when the system is due for service or if a warrant matter should arise. Please copy this record and fax or mail to the manufacturer as listed below; TYCHON LLC 1511 Ave. Ponce de León Bldg. 1300Apt, 1341 Ciudadela, San Juan... - Page 20 TYCHON LLC. 1511 Ave. Ponce de León Bldg. 1300Apt ,1341 Ciudadela, San Juan, Puerto Rico, 00909 admin@tychonpr.com Phone:787-920-9225 Document: ER3-HP300-210708...
