- Page 1 D15 Flow Control Vacuum Pump and Compressor Series User Guide Issue Date 2020-06 Copyright © Chengdu Hilin Technology Co., Ltd.
- Page 2 Chengdu Hilin Technology Co., Ltd. Address: No.3663 Section 2 Muhua Road Shuangliu District Chengdu Sichuan China 610000 Website: http://www.hilintec.com Tel: +86-28-62567958 Copyright © Chengdu Hilin Technology Co., Ltd.
-
Page 3: About This Document
D15 Flow Control Vacuum Pump and Compressor Series User Guide About This Document Purpose This document is a description of the D15S flow control vacuum pump and compressor series in the test period, which is used to guide the relevant technical personnel to understand the product characteristics. -
Page 4: Change History
D15 Flow Control Vacuum Pump and Compressor Series User Guide Change History The change history accumulates each update of this document. The latest version of the document contains all the previous updates. Product Issue Date Issuer Modification Version 2018-3 First official release Add product images and models of 2018-10... -
Page 5: Table Of Contents
D15 Flow Control Vacuum Pump and Compressor Series User Guide Contents About This Document....................I Change History......................II Contents........................III 1 Product Characteristics..................1 1.1 Compact Size............................1 1.2 Working Status Indicator........................1 1.3 Brushless Motor........................... 1 1.4 Protections............................1 2 Special Features..................... 2 2.1 Speed Control Feature..........................2 2.2 Warning Feature........................... -
Page 6: Product Characteristics
D15 Flow Control Vacuum Pump and Compressor Series User Guide Product Characteristics Compact Size The product weighs about 50g and the overall size is about 50x29x36mm. Working Status Indicator The bottom case of the pump is made of light-transmitting material ABS, which can visually reflect the working status of the pump through the indicator light. -
Page 7: Special Features
D15 Flow Control Vacuum Pump and Compressor Series User Guide Special Features Speed Control Feature The flow can be changed by adjusting the motor speed of the pump (by adjusting the PWM duty cycle). Or by ordering our company's special speed controller for micro pump (model: TS-G12) to regulate the speed. -
Page 8: Technical Parameters
D15 Flow Control Vacuum Pump and Compressor Series User Guide Technical Parameters Key Parameters Flow（L/min） Maximum Load Relative Voltage Output Weight Model Current Vacuum (V DC) Pressure （g） Peak Flow Average （A） （-kPa） （kPa） Flow D15S ≈50 ≤280 ≥0.4 ≥0.4 ≥18 ≥22 Note:... -
Page 9: Life-Time Test Conditions
D15 Flow Control Vacuum Pump and Compressor Series User Guide Reliability ★ ★★ ★★★ Parameter ★ ★★ ★★★ Consistency Speed Feedback None Equipped with FG signal feedback Speed Controller None Compatible with TS-G12 type speed controller Note: 1. The more ★, the better performance of this item. 2. -
Page 10: Materials
D15 Flow Control Vacuum Pump and Compressor Series User Guide exceed the maximum vacuum of the pump; the outlet must be unobstructed. Materials 1. The materials of the wetted parts: reinforced nylon and EPDM rubber, which have certain corrosion resistance. Please check the chemical resistance and compatibility of the medium according to the wetted material. -
Page 11: Product Model Description
D15 Flow Control Vacuum Pump and Compressor Series User Guide Product Model Description Brief Description of Model Naming Only basic type type available for this series of pumps. Note: If the remarks starts with a letter, it means a special custom function. For example, letter"GJ"... -
Page 12: Electrical Connection
D15 Flow Control Vacuum Pump and Compressor Series User Guide Electrical Connection The electrical connection is for connecting the external power supply and signal wires of this product. The definition of the wires is distinguished by color. Definition of Signals This is a product with basic functions. - Page 13 D15 Flow Control Vacuum Pump and Compressor Series User Guide Note: More wiring will be added with more functions to be added into the product,and this table will also be updated. Logical Wiring Diagram When the speed control function is not needed, the white connection wire PWM input signal and the black connection wire can be grounded together, the yellow wire must be insulated and wrapped, and the micro pump will work at the rated speed.
- Page 14 D15 Flow Control Vacuum Pump and Compressor Series User Guide When you need to use the PWM speed control function and obtain the FG feedback, you need to use a signal source that supports PWM signal output (function signal generator, MCU, PLC and other controllers) and an oscilloscope or host computer, and connect the signal source output to the white PWM input.
-
Page 15: Cautions
D15 Flow Control Vacuum Pump and Compressor Series User Guide Cautions Please read the instructions in this chapter carefully and follow the instructions strictly before use. This product has no waterproof, dust-proof, and explosion-proof functions and cannot be used in flammable and explosive environments! Foreign matter must not fall into the gas nozzles, and there should be no solid particles in the medium, otherwise the micro pump will be damaged! -
Page 16: Dimensions
D15 Flow Control Vacuum Pump and Compressor Series User Guide Dimensions Installation instructions: 1. The screws on the pump cannot be removed, otherwise it will damage the pump; 2. The mounting hole is a self-tapping screw hole, which is not easy to be repeatedly tightened and disassembled, otherwise it will cause loose and unreliable installation. -

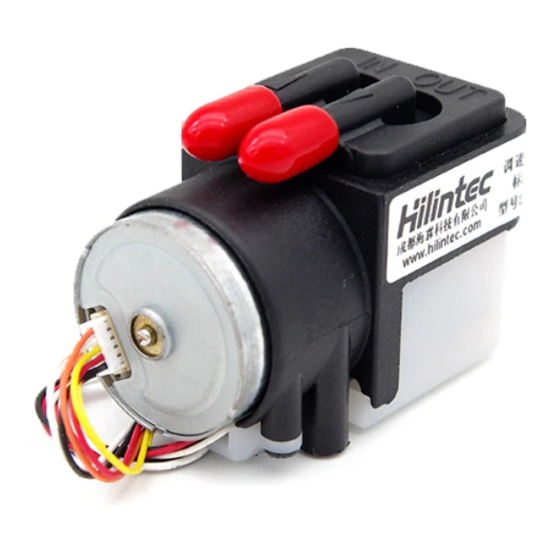

Page 17: Appearance
D15 Flow Control Vacuum Pump and Compressor Series User Guide Appearance Copyright © Chengdu Hilin Technology Co., Ltd.
