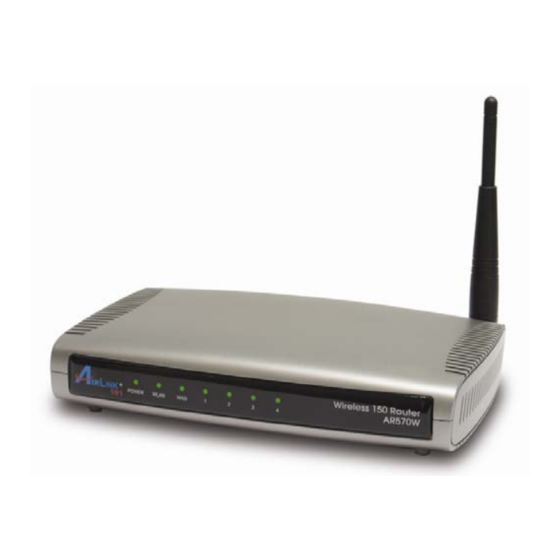

Airlink101 Wireless 150 Router Quick Installation Manual
  1. Manuals
  2. Brands
  3. Airlink101 Manuals
  4. Network Router
  5. Wireless 150 Router
  6. Quick installation manual

Airlink101 Wireless 150 Router Quick Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

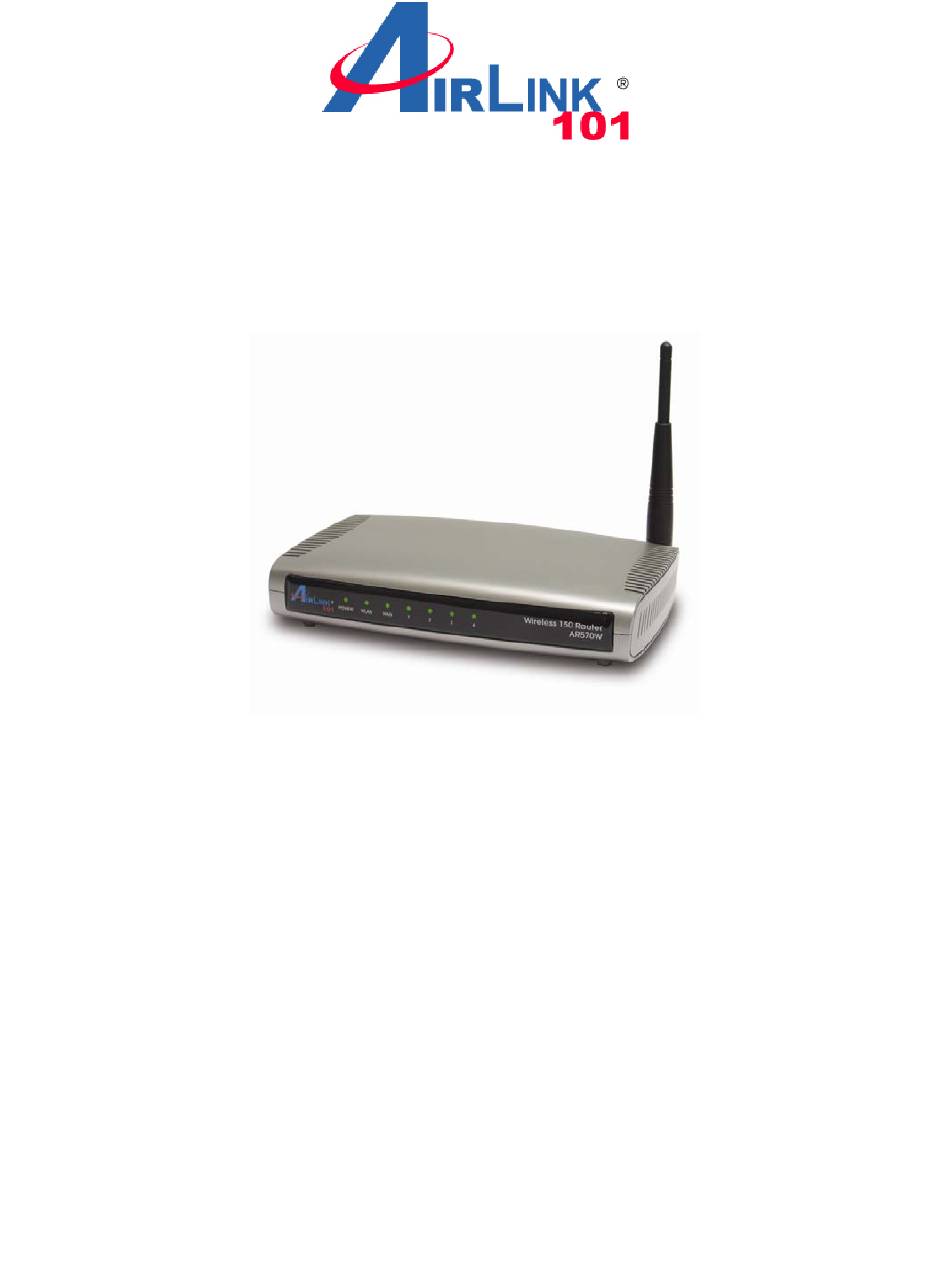

Quick Installation Guide
Wireless 150 Router
Model # AR570W
Ver. 1A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wireless 150 Router and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Airlink101 Wireless 150 Router

Summary of Contents for Airlink101 Wireless 150 Router

  • Page 1 Quick Installation Guide Wireless 150 Router Model # AR570W Ver. 1A...

  • Page 2: Connecting The Router

    4 times faster than Wireless G. It is recommended to use with AirLink101® Wireless N or Wireless 150 adapters to reach the best performance. Best of all, Wireless 150 Router works with IEEE 802.11 b/g/n network devices, which ensures compatibility with your existing network products.
  • Page 3 Step 1 Connect one end of a network cable to the WAN port of the router and connect the other end of the cable to the DSL/Cable modem. Power on the modem. Cable/DSL Modem Step 2 With another network cable, connect one end of the cable to your computer’s Ethernet port and the other end to one of the LAN ports on the router.
  • Page 4 Step 5 Make sure POWER, WAN, WLAN, and the LAN port that the computer is connected to are lit. If not, try the above steps again. LED Indicators: Light Description Status POWER Router is powered on. WPS setup is in progress. WLAN Wireless network is switched off.

  • Page 5: Configuring The Router

    Section 2 Configuring the Router Step 1 Open the web browser (Internet Explorer or Mozilla Firefox) from the computer that is wired to the Router, type 192.168.2.1 in the Address bar and press Enter. Step 2 Enter admin for both the username and password fields and click...
  • Page 6 Step 3 Click Setup Wizard on the left menu. Step 4 Configure the Time Zone Settings of the Router. You can click on Copy Time from PC. Enable Daylight Saving if it is applicable in your country. Click NEXT. Step 5 Select WAN type by which Internet service you are using.
  • Page 7 Cable Click on Dynamic IP if you are connecting to Internet through a cable modem. When the Dynamic IP settings appear below, click Clone MAC and click NEXT. For DSL users, your Internet type is either Dynamic IP or PPPoE. If you are not sure which one you have, it is suggested to select PPPoE for your WAN type, and if you cannot connect to the Internet after the Setup Wizard finished, go through the Setup Wizard again and select Dynamic IP.
  • Page 8 Click on PPPoE for your WAN type. Enter your user name and password provided by your ISP. Click NEXT. Note: Depending on the ISP, you may need to include the domain name with your username. Example: username@sbcglobal.net Option 2: Dynamic IP Settings Click on Dynamic IP for your WAN type.
  • Page 9 Step 6 Keep the default LAN IP and DHCP server settings or modify as needed. Click NEXT.
  • Page 10 Step 7 Keep the default SSID (wireless network name) or change it to a desired name, so you can always recognize your wireless network with it. Click NEXT. Step 8 Set up Wireless Security for your router. WPA2(Mixed) is the most secured encryption mode for general users. WEP is the most common encryption but the least secured.
  • Page 11 WPA Unicast Cipher Suite: Select WPA2(Mixed) Pre-Shared Key Format: Select Passphrase Pre-shared Key: Enter a key between 8 to 63 characters (alphanumeric, case sensitive). This is the security key for your wireless network Click OK to save the settings. Please refer to the User’s Manual in the provided CD for other security mode settings.
  • Page 12 Step 10 Click OK, you will go back to the Status page with valid IP address assigned by you ISP (or configured by yourself if you use Static IP) in WAN Status section. If each field has valid numbers or IP address being assigned, the router is connected to the Internet.

  • Page 13: Connecting To The Router Wirelessly

    Section 3 Connecting to the Router Wirelessly If you can connect to Internet from your computer that is wired to the Router, you can now set up wireless connection between computer(s) and the Router. If you wish to use wireless on a certain computer, you can now remove the network cable connecting your computer to the router.
  • Page 14 Step 2 Click on the wireless network you want to connect to and click Connect. Step 3 Enter the Security key you configured for the Router (see Step 8 in Section 2). Click Connect.
  • Page 15 Protected Setup™) as well. If not, you will need to set up the wireless security manually and you can skip this section. In the instructions below, we are going to use the Airlink101 WLAN Monitor utility comes with the AWLL6077, Airlink101 Wireless N adapter as an...
  • Page 16 Step 1 Go to the computer with Airlink101 Wireless N adapter, AWLL6077 connected. Step 2 Push and hold the Easy Setup Button on the Adapter until you see the following window pops up on the computer monitor. You will see this window pops up on the monitor:...
  • Page 17 Step 3 Within the following 2 minutes, push the Easy Setup Button on the Router. The WLAN LED on the Router will stay solid green instead of blinking. Step 4 The Router will now start to synchronize the security settings with the wireless adapter.

  • Page 18: Troubleshooting

    Verify that the Internet IP Address, Subnet Mask, and Default Gateway have valid numbers assigned to them (instead of all 0’s). Section 6 Technical Support E-mail: support@airlink101.com Toll Free: 1-888-746-3238 Website: www.airlink101.com *Theoretical maximum wireless signal rate derived from IEEE standard 802.11 specifications. Actual data throughput will vary.
