Summary of Contents for ThyssenKrupp TW130
- Page 1 ThyssenKrupp Aufzugswerke A company of ThyssenKrupp Elevator Operating Manual Machine TW130...
- Page 3 These operating instructions may – even in extract form – only be reprinted or otherwise copied with the express written approval of THYSSENKRUPP AUFZUGSWERKE GmbH. All copying, distribution or saving in any form on data storage media which is not authorised by THYSSENKRUPP AUFZUGSWERKE GmbH constitutes a copyright infringement and will result in prosecution.
- Page 4 Machine TW 130 PAGE 1. Safety 1.1 Explanation of symbols used 1.2 General safety information 2. Transport and storage 3. Product description 3.1 Description of TW130 3.2 Functional description 3.3 Technical data 3.4 Dimensions 3.5 Lubrication 3.6 Nameplate 3.7 Motors 3.8 Motor data ThyssenKrupp motors...
- Page 5 PERATING ANUAL 8. Special versions (optional) 8.1 Special versions 8.2 SA3 Brake monitoring circuit 8.2.1 Variant for ThyssenKrupp TCM control 8.2.2 Variant for third-party 9. Annex 9.1 Starting torque – Strength 9.2 Blocking clamp Manufacturer's instructions for encoder Product information for Wachendorf encoder...
- Page 6 Disregard can lead to damages, hazards or failures. Inspection This symbol draws attention to the proper inspection sequence. These inspection notices must be observed in any case. Disregard can lead to injury to persons or damage to property. ThyssenKrupp Aufzugswerke GmbH...
- Page 7 Organizational measures The owner or the installer must provide the necessary personal protective gear. All existing safety devices must be checked regularly in accordance with the maintenance plan. ThyssenKrupp Aufzugswerke GmbH...
- Page 8 See to it that all information concerning safety and hazards is always visibly and legibly made available on the machine. Use as intended TW130 is designed in accordance with the state of the art and the generally accepted safety regulations. TW130 shall only Be used for its intended purpose ...
- Page 9 catastrophes caused by outside influences and Act of God. Constructional modifications of machine TW130 TW130 is adjusted at the factory and delivered filled with oil and ready for operation. Attention : prior to starting operation, check whether the gear is properly oiled and the oil level approx.
- Page 10 RANSPORT TORAGE Transport and storage Packing: The TW130 is delivered wrapped in foil on a special pallet. Transport: Machine and frame must be perfectly horizontal and the safety precautions observed. The machine must be perfectly horizontal or vertical (depending on the mounting position).
- Page 11 After receipt of goods make sure that there is no damage caused during transport. Information Immediately document the damage noticed (drawing, photograph, description of damage). Immediately send the respective documents to THYSSENKRUPP AUFZUGSWERKE GmbH. Unpacking Information Dispose packing material in accordance with the environmental standards or make it available for further use.
-
Page 12: Table Of Contents

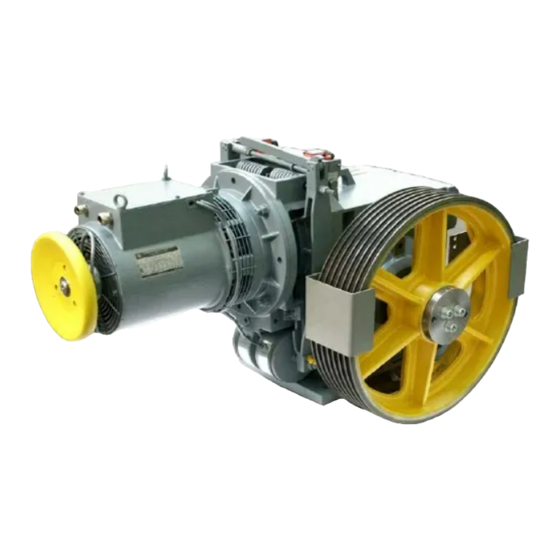

3. P PERATING ANUAL RODUCT ESCRIPTION Description of machine TW130 Fig. 1 TW130 with motor positioned horizontally and traction sheave on the right Pos. Designation Pos. Designation Handwinding wheel Traction sheave Motor Rope guard cover Motor terminal box Disk at drive shaft... -
Page 13: Fig. 2
3. P PERATING ANUAL RODUCT ESCRIPTION Fig. 2 TW130 shown with optional emergency braking device NBS Pos. Designation: Cover for emergency braking device Closing cap filling / ventilation hole Brake shoe Motor flange Motor ventilation hole for self-ventilation Cable penetration motor terminals... -
Page 14: Traction Sheave On The Right
3. P PERATING ANUAL RODUCT ESCRIPTION TW130 with motor positioned vertically and traction sheave on the right Fig. 3 Fig. 4 ThyssenKrupp Aufzugswerke GmbH... -
Page 15: Pos. Designation
Ventilation / oil filling hole Lifting magnet for brake release Oil gauge glass Screw connection surface Rope guard Traction sheave fastening Traction sheave Self-ventilation for motor cooling Air flow exit Motor terminal box Brake release lever Gear housing ThyssenKrupp Aufzugswerke GmbH... - Page 16 3. P PERATING ANUAL RODUCT ESCRIPTION Variants: TW130 is available in the following designs: Motor positioned horizontally or vertically Traction sheave mounted on the right or left (seen from motor to gear) Motors with different driving power and designs ...
- Page 17 RODUCT ESCRIPTION Functional description Machine TW130 has a single-stage worm gear with flanged-on three phase motor. A flexible coupling integrated in the brake disk is used as motor - worm shaft connection. The drive shaft is driven by the worm wheel. At the shaft end an overhung traction sheave is attached.
- Page 18 The ambient temperature at the site of location must comply with the standard requirements for machine rooms (humidity, temperature) and thus be maintained between +5° and +40° C (in accordance with EN81). The relative humidity of air shall not exceed 70%. ThyssenKrupp Aufzugswerke GmbH...
- Page 19 3. P PERATING ANUAL RODUCT ESCRIPTION Technical data Gear ratio of TW130: 52:1; 42:1; 35:1; 45:2; 43:3 Distance between axles: 191 mm Cirumferential backlash: 0.02 ° – 0.06 ° Permissible radial load on traction sheave shaft: Standard version max. 77 kN SA4/SA9 max.
-
Page 20: Brake Test Switch (Optional)
Length of connecting line Type test marking Without (not necessary) Note: the brake release magnets of the dual-circuit external shoe brake are series-connected. The tabular values are to be considered as total connection values for series-connection. ThyssenKrupp Aufzugswerke GmbH...
