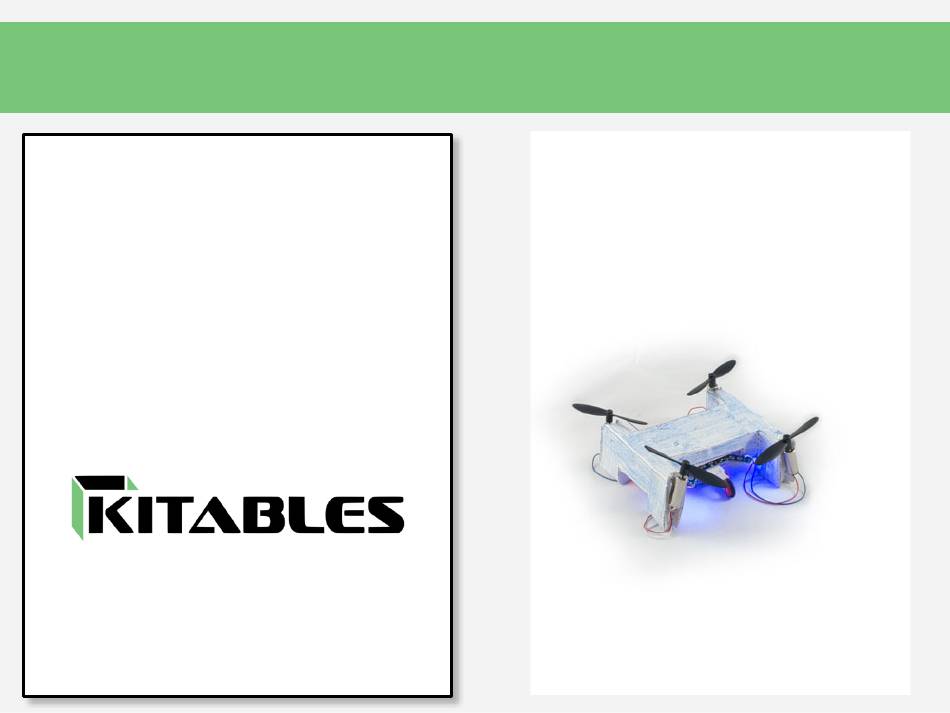

- Page 1 MINI PAPER DRONE kit instructions...
-
Page 2: Kit Includes
Mini Paper Drone Kit Instructions Getting Started Kit Includes: 1) Check your parts list. (a) Transmitter (f) 3xAAA Batteries 2) Read through the instructions. (b) Receiver (g) Charging USB 3) Gather your tools. (c) Motor Set (h) Zipties 4) Start charging your LiPo battery. - Page 3 Mini Paper Drone Kit Instructions Design Frame Cut Out Frame Using scissors or a precision blade Start by coloring your paper frame. to cut frame parts along the solid It’s easier when still in one piece. lines.
- Page 4 Mini Paper Drone Kit Instructions Using a straight edge to bend frame components along dashed lines. Dashes represent either a “mountain” or a “valley” fold.
- Page 5 Mini Paper Drone Kit Instructions Tape or glue along flaps. We’ve highlighted the flaps to coordinate with frame parts.
- Page 6 Mini Paper Drone Kit Instructions Charging Battery Get Ready to Solder! Charge battery by plugging JST You will need to solder each of the 4 motors (c) connector from Lipo battery to JST/USB to the receiver board (b). Motor location on the...
- Page 7 Mini Paper Drone Kit Instructions You may receive a blue or a green Use a helping hand to hold the receiver receiver board. They both pair with your board while you solder. Start with the controller and work with your motors. The wire on the board facing away from you green board has a longer battery wire.
- Page 8 Mini Paper Drone Kit Instructions Solder one motor (black and white wires) to the Solder another motor (blue and red wires) to upper right motor location on the board. You the upper left location on the board. You will will see a positive (M+) and negative (M-) see a positive (M+) and negative (M-) terminal.
- Page 9 Mini Paper Drone Kit Instructions Wiring Diagram Use adhesive square or rubber Here is the complete wiring diagram for the bands to secure board to frame. motor locations. The same pattern fits both the blue or green receiver board.
- Page 10 Mini Paper Drone Kit Instructions Secure board to the underside of Secure each motor to the frame in frame with adhesive (glue, double- the concave arm with adhesive sided tape, rubber bands). Electronic (glue, tape). components should face up.
- Page 11 Mini Paper Drone Kit Instructions Add battery with more adhesive or Firmly press propeller down on to motor under rubber bands. spike. It should sit snugly against the motor. There are 2 different propeller blade directions and they are DIFFICULT...
- Page 12 Mini Paper Drone Kit Instructions Turning On The end of the battery has a male JST type connector that fits with the 1. Plug in your battery to your female JST type connector on the receiver board. receiver board. They fit together as 2.
-
Page 13: Operation
Mini Paper Drone Kit Instructions Sensitivity 2 Modes: Low (40%), High (100%) Press power supply indicators until you hear a “di” = low mode Press power supply until you hear a “di, di” = high mode Rolling Operation Only if needed... - Page 14 Mini Paper Drone Kit Instructions You have now completed a Kitables Kit! If you have questions, check out our FAQ Kitables.co or email us at info@kitables.co...
