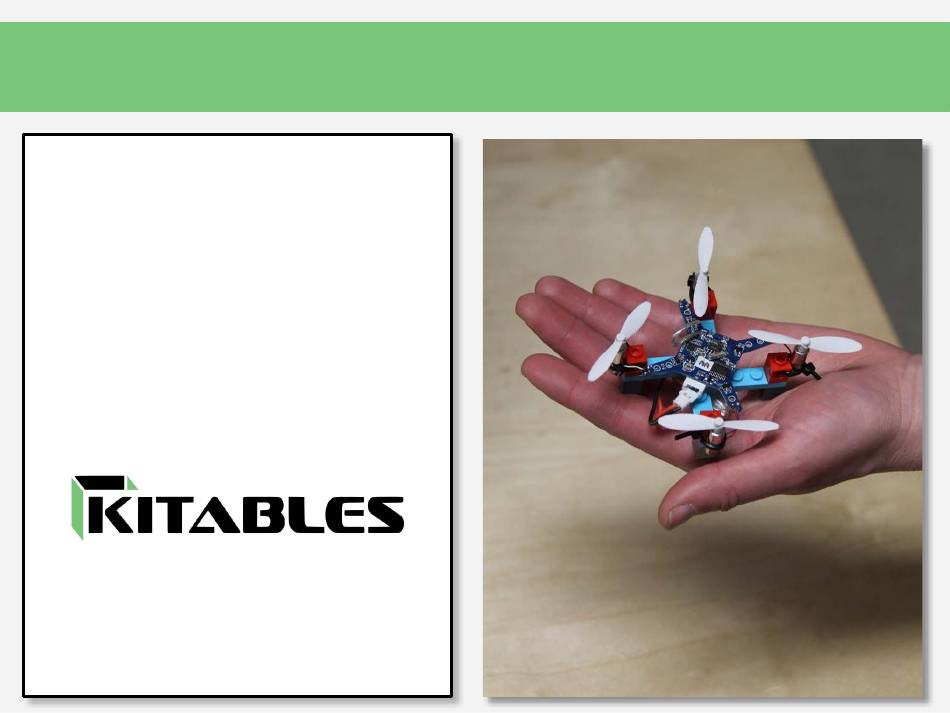

- Page 1 MINI LEGO DRONE kit instructions...
-
Page 2: Kit Includes
Mini Lego Drone Kit Instructions Getting Started Kit Includes: 1) Check your parts list. (a) Transmitter (f) Lego pack 2) Read through the instructions. (b) Receiver (g) 3xAAA Batteries 3) Gather your tools. (c) Motor Set (h) Charging USB 4) Start charging your LiPo battery. - Page 3 Mini Lego Drone Kit Instructions Build Frame Start by building the Lego frame. We’ve given you a few choices for the frame structure. Either using 1x4 or 1x6 plates. Lighter (1x4) will equal longer flying time, larger (1x6) will equal more stable flying.
- Page 4 Mini Lego Drone Kit Instructions...
- Page 5 Mini Lego Drone Kit Instructions Get Ready to Solder! You’ll find a variety of Lego colors in You will need to solder each of the 4 motors (c) your pack. We’ve designed this drone to the receiver board (b). Motor location on the...
- Page 6 Mini Lego Drone Kit Instructions You may receive a blue or a green Use a helping hand to hold the receiver receiver board. They both pair with your board while you solder. Start with the controller and work with your motors. The wire on the board facing away from you green board has a longer battery wire.
- Page 7 Mini Lego Drone Kit Instructions Solder one motor (black and white wires) to the Solder another motor (blue and red wires) to upper right motor location on the board. You the upper left location on the board. You will will see a positive (M+) and negative (M-) see a positive (M+) and negative (M-) terminal.
- Page 8 Wiring Diagram Secure receiver board (b) to top of Lego frame with 2 rubber bands (or some Here is the complete wiring diagram for the double-sided adhesive). Angle it so motors motor locations. The same pattern fits both the blue or green receiver board. point along each arm.
- Page 9 Mini Lego Drone Kit Instructions Charging Battery Secure the battery to the bottom of the Charge battery by plugging JST Lego frame with rubber bands (or some connector from Lipo battery to JST/USB double-sided adhesive) used for the board cable (of note, your USB charger may not have a “cable”...
- Page 10 Mini Lego Drone Kit Instructions Secure each motor to the Lego frame arm with a zip tie as shown. Do this 4 times for each motor on each arm. Trim zip tie tail 1x4 frame 1x6 frame...
- Page 11 Mini Lego Drone Kit Instructions Firmly press propeller down on to motor The end of the battery has a male JST spike. It should sit snugly against the type connector that fits with the female motor. There are two different propeller...
- Page 12 Mini Lego Drone Kit Instructions Turning On 1. Plug in your battery (e) to your receiver board (b). 2. Set on a level surface to ensure internal accelerometer is level. 3. Turn on controller. You will hear a “beep” when the controller and receiver are paired.
-
Page 13: Operation
Mini Drone Kit Instructions Remote Control Sensitivity 2 Modes: Low (40%), High (100%) Press power supply indicators until you hear a “di” = low mode Press power supply until you hear a “di, di” = high mode Rolling Operation Calibrate... - Page 14 Mini Drone Kit Instructions You have now completed a Kitables Kit! If you have questions, check out our FAQ Kitables.co or email us at info@kitables.co...
