Summary of Contents for AREBOS AR-HE-SLR03

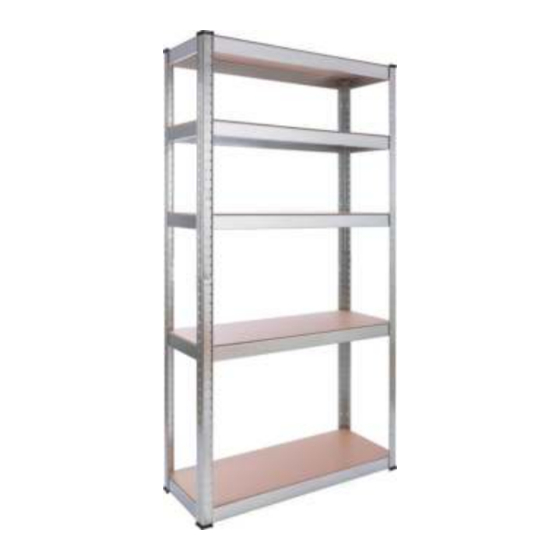

- Page 1 User’s Manual – A S Heavy Duty Shelf 350 kg REBO Heavy Duty Shelf 350 kg AR-HE-SLR03 Please follow all security measures in this user´s manual to ensure a secure use. Thank you for trusting in AREBOS.
- Page 2 User’s Manual – A S Heavy Duty Shelf 350 kg REBO List of contents 1. Safety Instructions ..........3 2. Technical Specifications ......... 3 3. Assembly ............... 3 3.1 Before Assembly ............. 3 3.2 Parts................4 3.3 Installation ..............4 4.
- Page 3 If the connector tabs of the shelf cross pieces should bend on assembly, they can be bent back into their original position with the aid of a flat head screwdriver. 2. Technical Specifications Model AR-HE-SLR03 Dimensions 31.5 x 11.8 x 66.9 in (80 x 30 x 170 cm) Load capacity total...
- Page 4 User’s Manual – A S Heavy Duty Shelf 350 kg REBO 3.2 Parts 3.3 Installation • Assemble the first shelf support as shown in diagram. For this fix two of the girders C and D at the corner pieces (B). •...
- Page 5 User’s Manual – A S Heavy Duty Shelf 350 kg REBO...
- Page 6 User’s Manual – A S Heavy Duty Shelf 350 kg REBO 4. Disposal Instruction 4.1 Disposal of the packaging • Please make reference to the guidelines and standards for appropriate disposal of the packaging valid in your region. In part, the package may consist of plastic bags - watch this respect, with special care to ensure that this is not out of the reach of children.
- Page 7 User’s Manual – A S Heavy Duty Shelf 350 kg REBO Imprint Name of the product: Arebos Heavy Duty Shelf 350kg Model Nr.: AR-HE-SLR03 Art. Nr.: 4260551583629 If this product is modified without our consent, it loses the right to any warranty.
