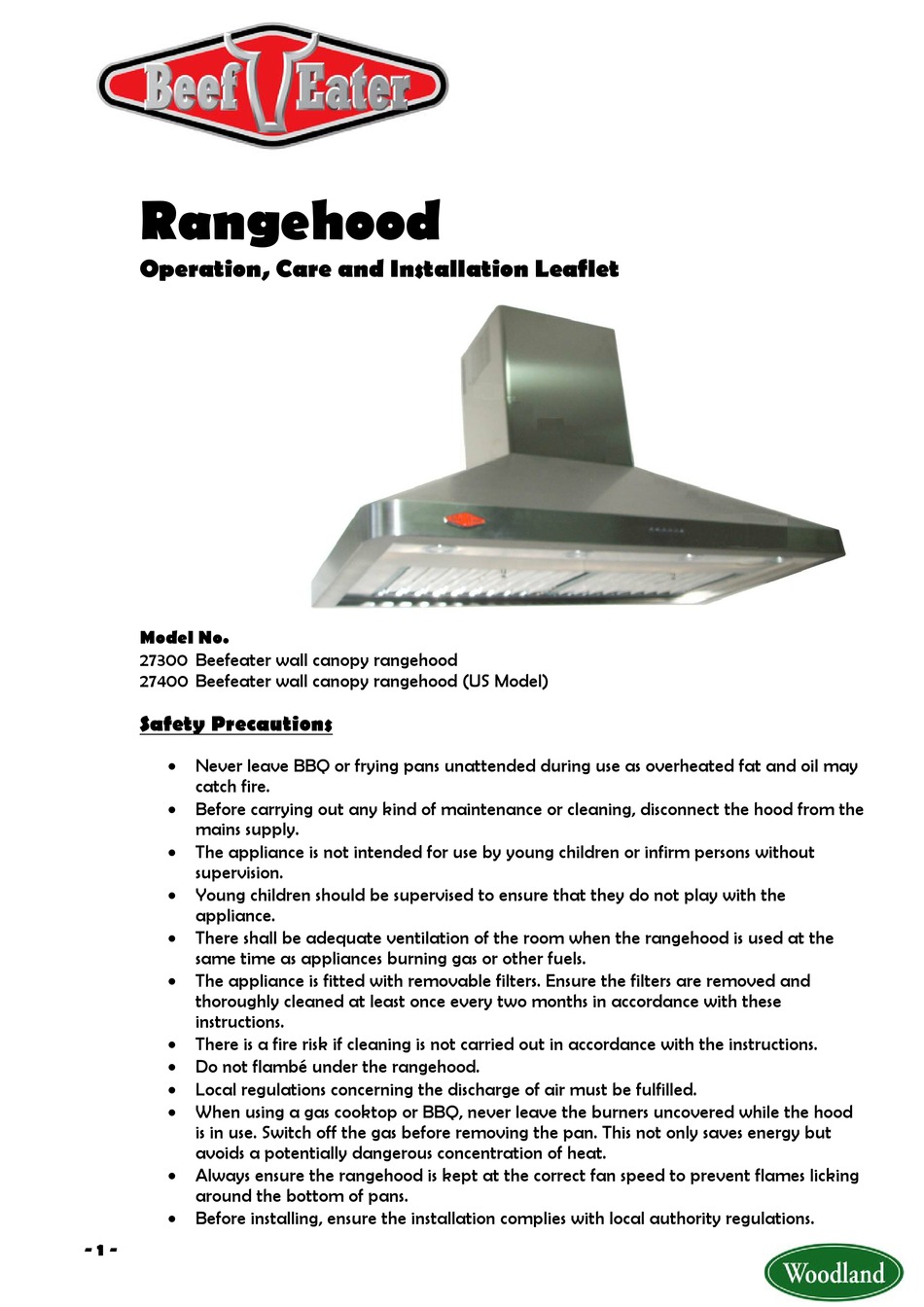

Rangehood
Operation, Care and Installation Leaflet
Model No.
27300 Beefeater wall canopy rangehood
27400 Beefeater wall canopy rangehood (US Model)
Never leave BBQ or frying pans unattended during use as overheated fat and oil may
catch fire.
Before carrying out any kind of maintenance or cleaning, disconnect the hood from the
mains supply.
The appliance is not intended for use by young children or infirm persons without
supervision.
Young children should be supervised to ensure that they do not play with the
appliance.
There shall be adequate ventilation of the room when the rangehood is used at the
same time as appliances burning gas or other fuels.
The appliance is fitted with removable filters. Ensure the filters are removed and
thoroughly cleaned at least once every two months in accordance with these
instructions.
There is a fire risk if cleaning is not carried out in accordance with the instructions.
Do not flambé under the rangehood.
Local regulations concerning the discharge of air must be fulfilled.
When using a gas cooktop or BBQ, never leave the burners uncovered while the hood
is in use. Switch off the gas before removing the pan. This not only saves energy but
avoids a potentially dangerous concentration of heat.
Always ensure the rangehood is kept at the correct fan speed to prevent flames licking
around the bottom of pans.
Before installing, ensure the installation complies with local authority regulations.
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BeefEater 27300
Summary of Contents for BeefEater 27300
- Page 1 Rangehood Operation, Care and Installation Leaflet Model No. 27300 Beefeater wall canopy rangehood 27400 Beefeater wall canopy rangehood (US Model) Safety Precautions Never leave BBQ or frying pans unattended during use as overheated fat and oil may catch fire.
- Page 2 Basic Operation Your rangehood has buttons on the front of the rangehood for easy operation. To Turn on the Light Turn the light on and off using the button marked with a light symbol. To Operate the Extraction Fan Select on of three speeds from the numbered buttons. 01.
- Page 3 Basic Maintenance Cleaning the Outer Surfaces Use a damp cloth and mild liquid household cleaner. Do not use abrasive cleaners or scourers as these will damage the surface. Commercial stainless steel cleaning products are available for more difficult staining. Cleaning the Metal Filters The metal filters in this rangehood are dishwasher safe.
- Page 4 This section applies only if your rangehood has been installed to recirculate vapours back into the room. Beefeater has available optional charcoal filters to further purge cooking oils and odours from the exhaust. These filters need to be replaced approximately every 2 months for normal usage.
- Page 5 Installation Instructions Safety Precautions This rangehood has been designed to be wall-mounted above a BBQ or cooking hob. It can work either by ducting system (discharging exhaust to the outside air) or by recirculation (where exhaust vapours are returned to the room). Before starting the installation, consideration should be given to how the installation is to be carried out, ensuring the following:...
- Page 6 Screw the Mounting Bracket to the Wall Screw the wall bracket to the three holes drilled in the previous step. The top two holes of the bracket are to lock the rangehood into position once it is in place. Hook the Rangehood onto the Wall Bracket The rangehood should sit squarely onto the wall bracket.
- Page 7 The diverter needs to be situated near the ceiling so that exhaust vapours are directed through the vents in the upper length of decorative chimney. A length of rigid ducting will be required here. Beefeater recommends using activated carbon filters for all recirculated rangehood installations. Electrical Connection The rangehood is equipped with a cord and plug, and can be connected to a nearby power socket.
- Page 8 You will need to ensure the filters are properly in place before finalising and testing installation Carbon Filters Beefeater have activated charcoal filters available to further clean the cooking vapours before being recirculated back into the room. If these are required, you may order them directly from Beefeater.
