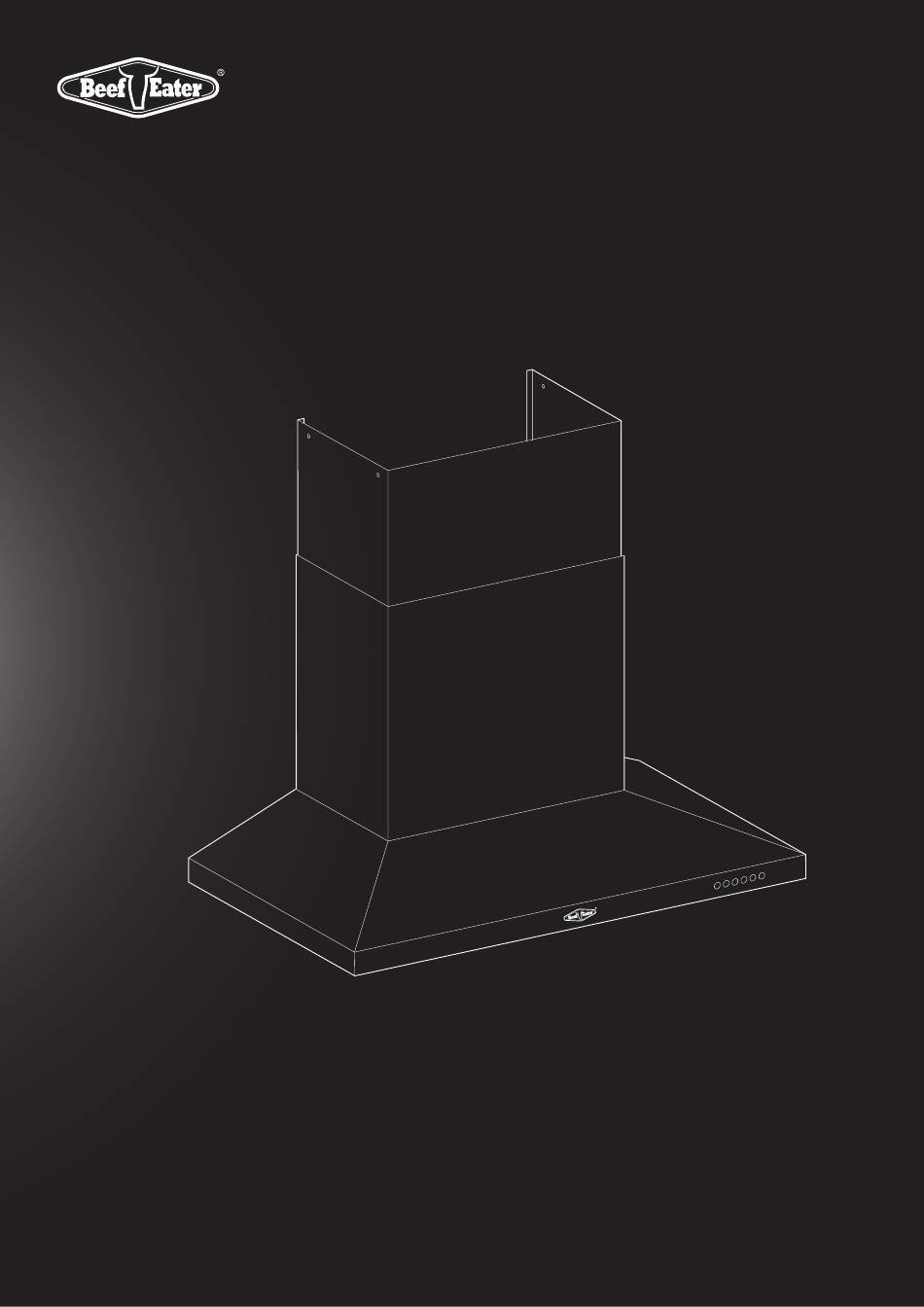

- Page 1 RANGEHOOD Assembly and Operating Instructions BRC214SA AUSTRALIA / NEW ZEALAND...
-
Page 2: Table Of Contents
CONGRATULATIONS CONTENTS Thank you for purchasing a Beefeater cooker Important safety instructions ............3 hood. You’ve chosen a product that brings Product description ..............4 with it decades of professional experience and Cooker hood installation .............. 5 innovation. Ingenious and stylish, it has been Using the cooker hood .............. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This manual explains the proper use of your new Beefeater ELECTRICAL CONNECTION canopy cooker hood. Please read this manual carefully Check that the mains voltage matches with the voltage on before using the product. This manual should be kept in the data plate inside the canopy cooker hood. -
Page 4: Product Description
PRODUCT DESCRIPTION Components list PART Ceiling mount bracket Upper flue cover 1 (427mm) Lower flue cover 1 (500mm) Wall bracket Air outlet with non-return valve Main body and fan housing assembly 2 fans Grease filters Remote controller Technical Specification Additional items required for installation •... -
Page 5: Cooker Hood Installation
COOKER HOOD INSTALLATION Dimensions ø 200 780~1077 1220 MODEL WIDTH HEIGHT DEPTH WEIGHT BRC214SA 1200mm 780~1077mm 730mm 50.2kg COOKER HOOD INSTALLATION... - Page 6 COOKER HOOD INSTALLATION Using a spirit level mark a vertical centre line on the * If the instructions of the cooker specifies a greater distance than the minimum height stated, then that wall where the cooker hood is to be positioned, and shall be the minimum height for the installation a horizontal line at the hood base position.
- Page 7 COOKER HOOD INSTALLATION Install flue cover wall mounting brackets with suitable Use cable ties or suitable duct tape to secure flexible fixings. Install suitable screws for cooker hood pipe to the duct outlet. mounting points (to support a total weight of 55kg) ø...
- Page 8 Circuit connection for gas solenoid valve: Ensure locking tab of lower flue cover is bent before installing covers. Solenoid valve Power supply for solenoid valve 10. Slide telescopic flue cover to upper position and fix with screws provided. Wiring from rangehood Insert power cord to power outlet.
-
Page 9: Using The Cooker Hood
USING THE COOKER HOOD Control operation 1 Lamp on/off 4 Speed 2 2 Delay end 5 Speed 3 3 Speed 1 6 Speed 4 (maximum) Speeds Speed 1: Suitable for light frying and light barbecuing. You can also use the remote controller to control the cooker hood. -
Page 10: Maintenance And Cleaning
MAINTENANCE AND CLEANING 2. Pull down the filter lock level and then pull the filter WARNING! assembly down and out of the hood. Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure the cooker hood is switched off at the wall socket and the plug removed. -
Page 11: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM REMEDY The cooker hood will not start Check that cooker hood is connected to an electrical supply. Check that a fan speed has been selected. The cooker hood is not working Check that fan speed is high enough. Check that the grease filters are clean. -
Page 12: Typical Installations Showing Accessory Applications
TYPICAL INSTALLATIONS SHOWING ACCESSORY APPLICATIONS ROOF COWL ACCESSORY Some installations may require a vertical discharge cowl. FLUE (extension may be required, depending on installation) FLUE (extension may be required, depending on installation) 90˚ ELBOW ACCESSORY WALL VENT TYPICAL INSTALLATIONS... -
Page 13: Accessories
ACCESSORIES (200mm) PART NUMBER DESCRIPTION AR200FJ 200mm Flue joiner AR200E 200mm 90 Elbow AR200WV 200mm Wall vent AR200WC 200mm Worm drive clamp AR200FD 200mm Semi rigid flexible flue (0.7m min & 3.0m max length) AR200F 200mm Flue (length 1200mm) AR200RC 200mm Roof cowl AR630FS Upper flue cover extension (1200mm) -
Page 14: Notes
NOTES NOTES... -
Page 15: Warranty
(vi) incomplete or improper installation; Competition and Consumer Act 2010; the Appliance; (d) ‘BeefEater’ is the brand controlled by Electrolux Home Products Pty (vii) incorrect, improper or inappropriate operation; (b) ‘Appliance’ means any Electrolux product purchased by you and In addition, Electrolux is not liable under this warranty if: Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762... - Page 16 0800 225 088 customercare@electrolux.co.nz email: web: beefeaterbbq.com Beefeater. We are part of the Electrolux Family. To add a touch of professional inspiration to your home, visit electrolux.com.au © 2018 Electrolux Home Products Pty Ltd ABN 51 004 762 341 BMAN_Rangehood_BRC214SA_Feb18...
