Summary of Contents for Parker Sea Recovery Aquamatic

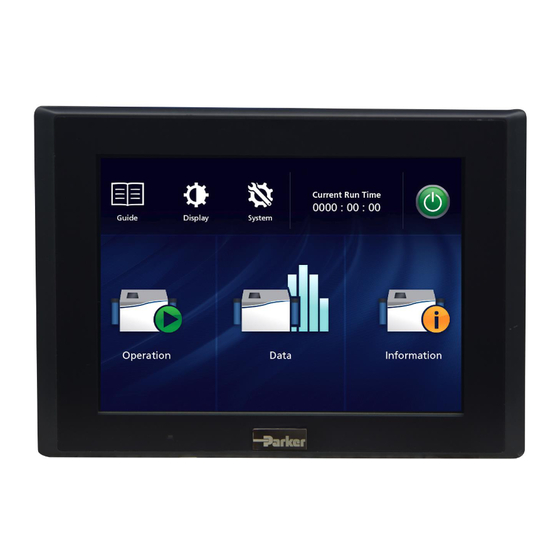

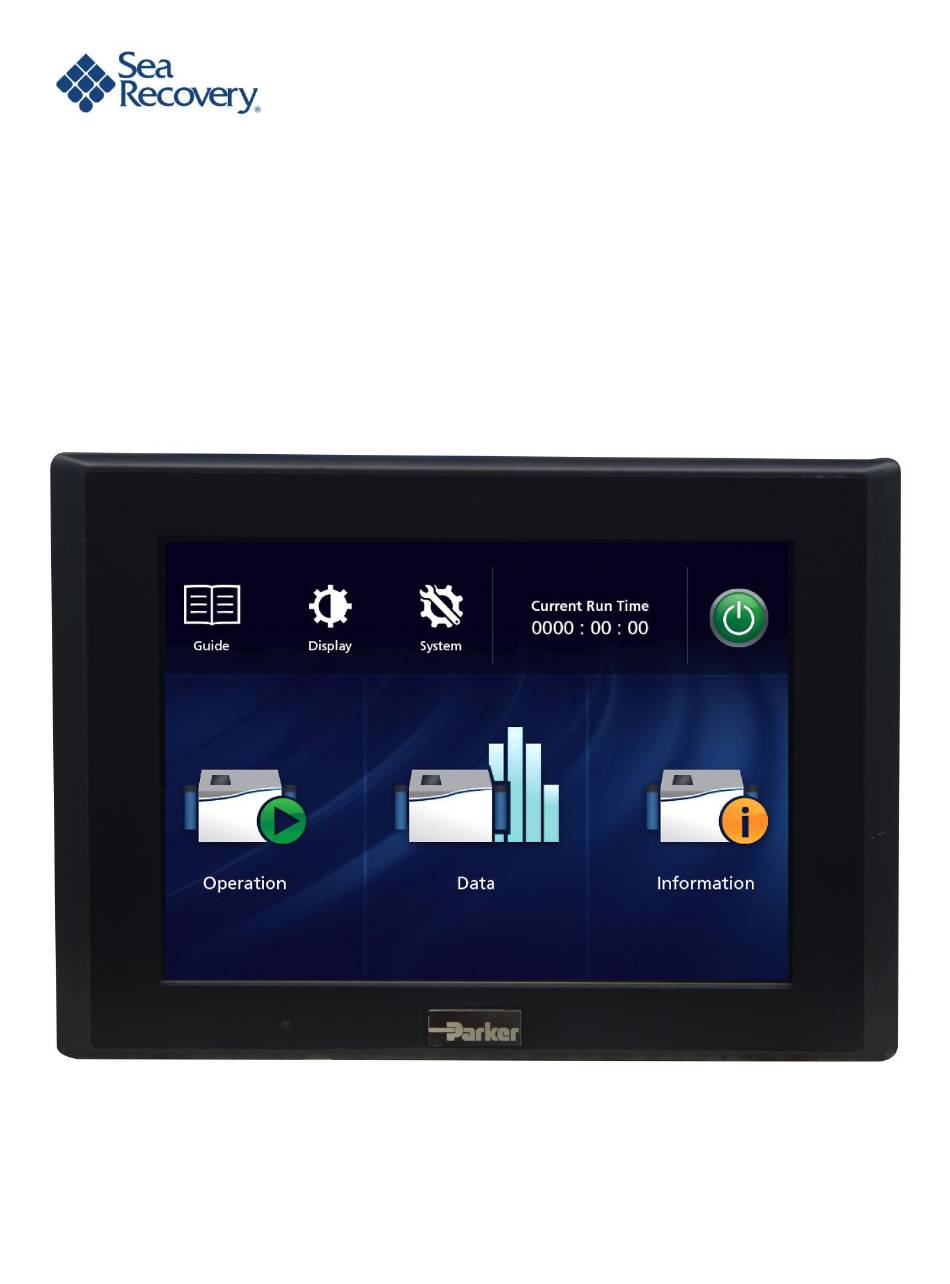

- Page 1 Aquamatic, Aquamatic XL & AquaWhisper DX Control System Quick Start & Trouble Shooting Guide PN: 90012015-Q REV | Release: 10/17/2017...
-
Page 2: Table Of Contents
Table of Contents 1.0 Commissioning 2.0 Display Settings 3.0 Manual Operation 4.0 Automatic Operations 5.0 Accessing Your Various Display Screens 6.0 Accessing System Fault & Warning Log 7.0 Accessing High Pressure Pump Hour Meter 8.0 Setting System Clock 9.0 Setting System Run Timers 10.0 Setting System Salinity 11.0 Setting Fresh Water Flush 12.0 System Fault Error Messages... -
Page 3: Commissioning
1.0 System Commissioning The Aquamatic, Aquamatic XL and AquaWhisper desalination system controller comes loaded with a special utility tool designed to aid the dealer in the commissioning of the system. This utility can be used to set a limited number of options within the controller, and is accessed in the following manner. NOTE: Your system should not be running when attempting to enter dealer commissioning mode. - Page 4 4. Log in using your dealer user name and password in the area shown below NOTE: Password is case sensitive 5. Press System Configuration shown below 6. Select or Enter in SYSTEM TYPE, SYSTEM FREQUENCY, SYSTEM SIZE, and CURRENT TIME. Aqua Matic Aqua Whisper DX Aqua Matic XL...
- Page 5 Press here to set Press here to system options navigate through system functions 7. Press 'System Option' tab. 8. Select option applicable to your system. System Tank Level Control System UV Sterilizer System Fresh Water Flush System Emergency Stop 9. Press 'Communications' tab 10.
- Page 6 11. Press system 'Output Tests' tab CAUTION: This page is meant to test individual function test of components power and motor rotation prior to running the system. SINCE SYSTEM IS NOT PRIMED WITH WATER DO NOT TRY TO RUN SYSTEM COMPONENT FOR LONG PERIODS OR DAMAGE WILL ACCURE. 12.
-
Page 7: Display Settings
13. Press System Health Tab Note: This tab will show a complete overview of the current system health along with any external sensors connected. A 'Fault!!' indicator will appear if a problem is detected. High speed flow meters cannot be tested automatically, but the output values of these sensors can be viewed here and should display a value when pumps are operated. - Page 8 Press here Press here 4. Press Units to set desired Units. 5. Press Brightness to set desired brightness level. Press here Press here Press here and slide left or right To return to the 'Main Menu' screen simply press on the 'Home' button, as shown above.
-
Page 9: Manual Operation
3.0 Manual Operation The Aquamatic, Aquamatic XL and AquaWhisper DX desalination system controller provides two possible methods of operation; these are manual mode and automatic mode. In manual mode, the controller requires that the operator activate the relative pumps by pressing on the required pump operation icons. If the user attempts to operate a pump when it is determined by the control system as unsafe to do so, the controller will not allow such an action and will in some cases raise a warning message. - Page 10 Manual Stop Booster Pump (Shown When Running) Control (Available but not active) Product Valve Control HP Pump (Not currently available) Control UV System (Not currently available) Control System Pressure (Shown if installed) (Not currently available) Control (Not currently available) 4. Press Booster Pump icon. NOTE: If starting system for the first time, allow time for the system to be primed before starting HP Pump.
- Page 11 Manual Stop (Shown When Running) Failure Warning Message NOTE: If the booster pump has been activated, and no conditions prohibiting operation of the high- pressure pump exist, the controller will make the 'Start HP Pump' button available, as shown below: Press HP Pump icon.
- Page 12 System Pressure Control (Only 'increase' available) NOTE: Once system pressures have exceeded the minimum allowable, the 'Decrease' button will also be made available. System Pressure Control (Both buttons available) NOTE: Once the maximum pressure available, the 'Increase' button will no longer be made available. System Pressure Control (Only 'Decrease' available)
- Page 13 NOTE: It may take several minutes for UV Sterilizer to become active. The system must sense good potable water for the icon to activate. UV System Control (Shown if installed) (Available but not active) 8. Press the Product Valve Icon to activate the Diversion valve. NOTE: Once the UV system has completed its warm up cycle or once the controller has detected potable water, the control system will make the 'Start|Stop Product Valve' button available.
-
Page 14: Automatic Operations
Press to return to manual operation screen 4.0 Automatic Operation Automatic startup operation allows for virtually hands free startup of the Aquamatic, Aquamatic XL or AquaWhisper DX system, and all associated equipment. This automatic startup operation can also be carried out remotely via the system remote control display (if installed). NOTE: Before attempting automatic start up, it is important to check that all system feed and reject valves are in the correct position. - Page 15 NOTE: If the control system is unable to successfully calibrate the pressure control regulator, an error message will be displayed, and automatic startup will be aborted. An example of this error message is shown below: NOTE: There will be a system priming delay of approximately 25 second once boost pump has turned on to when the HP Pump turns on.
- Page 16 Detected system failure description Press here to accept failure message 5. To Stop the system from running press the Stop icon or the Auto Start/Stop icon. Auto Start/Stop shortcut (available on any screen) Press Here The system will start shutting down in the sequence below ...
-
Page 17: Accessing Your Various Display Screens
For Aqua Whisper DX system, after successful deactivation of the high pressure pump, the system will begin a 10 second countdown, once this countdown has elapsed the booster pump will be de- activated. Now automatic shutdown operations have completed. If the system is not re-started within 30 seconds, the system will begin a fresh water flushing cycle. - Page 18 3. To get to any of the 3 screens (Pressure, Flow, or Water Quality) press the area in the boxes below. See Notice Other Live Data Other Live Data Other Live Data 4. Pressing the arrow button in the top left hand corner of the water quality screen two times will return you to the main menu screen as shown below:...
-
Page 20: Accessing System Fault & Warning Log
6.0 Accessing System Fault & Warning Log 1. Press Information Icon Press here Press Message tab. 3. Press the 'Fault Log' or 'Warning Log' area, as shown on the below. Pressing the arrow button in the top left hand corner on the screen to exit. -
Page 21: Accessing High Pressure Pump Hour Meter
7.0 Accessing High Pressure Pump Hour Meter The Aquamatic, Aquamatic XL, and AquaWhisper DX desalination system controller constantly records your high pressure pumps operational hours. To access the high-pressure pump hours display press on the 'Current Run Time' area, available on most screens. System live data... - Page 22 2. The high-pressure pump hours display screen also contains additional information Total operation Current hours of unit operation timer Estimated hours remaining before pump service System live data required Estimated hours remaining before pump oil change required The high-pressure pump hour display provides two maintenance life timers, these being pump life, and oil life.
-
Page 23: Setting System Clock
8.0 Setting System Clock 1. Press system settings icon. 2. Press Clock. Press here Press here 3. Choose your time format. 4. Press on Set Time enter in the correct time. 5. Press Set for 2 seconds to set time. Press here to Current time is select 12 or... -
Page 24: Setting System Run Timers
9.0 Setting System Run Timers 1. Press system settings icon. 2. Press Run Time. Press here Press here Startup Setting Area 3. Press HP Pump Delay to change default setting for the HP pump time delay. Press here... - Page 25 HP Pump Delay Time This delay timer controls the startup delay applied to the high-pressure pump during system activation. The default delay time is 10 seconds, but if your application has the booster pump located some distance away from the main unit, a longer delay may be required to allow the feed water to reach the high-pressure pump.
- Page 26 Water Production This controls the amount of water produced by the water maker. Once the produced water equals the amount programmed, the water maker will shut down. When the user re-starts the water maker, it will run until the produced amount of water equals the value stated. Production range is from 1 gallon to 4000 gallons.
- Page 27 Fresh Water Flush This controls the sleep time between system fresh water flush cycles and the duration of the fresh water flush. Fresh Water Flush Setting Area 7. Press Fresh Water Flush Frequency to change the default number of days between fresh water flushing.
-
Page 28: Setting System Salinity
10.0 Setting System Salinity The Aquamatic, Aquamatic XL and AquaWhisper desalination system controller allows you to configure your desired production water quality using two methods. The primary method used is by the simple movement left or right of the salinity bar or entering a value. 1. -
Page 29: Setting Fresh Water Flush
11.0 Setting Fresh Water Flush The Aquamatic, Aquamatic XL and AquaWhisper desalination system controller allows you to configure your desired fresh water flush program settings in two areas. The first area is in 'Runtime Settings', as discussed previously. However, the same setting can also be adjusted in the dedicated 'FWF Settings' tab, this tab also gives information about the current FWF system status, including the number of days until the next flushing cycle will take place. - Page 30 Fresh Water Flush Cycle Duration This sets the fresh water flushing time. In most applications, a fresh water flushing time of 10 minutes is adequate to displace all sea water from the system. However, this cycle duration can be changed if desired. The Fresh Water Flush duration range is from 3 minutes to 30 minutes. 8.
-
Page 31: System Fault Error Messages
12.0 System Fault Error Messages The Aquamatic, Aquamatic XL and AquaWhisper DX control system contains fault log message center. During operation, if a dangerous condition exists, or a critical monitoring component fails which would result in the control systems inability to accurately detect a dangerous condition. The detected condition or failure is deemed as a ‘Critical Error’. - Page 32 The booster pump outlet pressure transducer sensor is not reporting values as expected. The transducer could be unplugged, a wiring fault may exist, or the sensor Booster outlet sensor fault itself may have failed. The fault must be fixed and detected.
- Page 33 The brine water flow meter is no longer sending signals into the controller. The sensor could be unplugged, a wiring fault may exist, or the sensor itself may have Brine flow sensor fault detected. failed. Automatic operation is not available. The sensor Possible sensor failure.
- Page 34 During normal operation, in manual and automatic mode, the system exceeding maximum pressure allowed. A fault has occurred and the system will activate an emergency shutdown to protect the water maker and ship equipment. Re-start the system, if back HP pump outlet exceeded pressure regulator initialization completes correctly maximum permissible pressure.
- Page 35 In Parker for assistance. emergencies, it is possible to reset the by-pass operation timer. Please contact Parker further help The system was started in either manual mode or the system is an AquaWhisper DX. Once the HP pump is...
-
Page 36: System Warning Messages
The system can user. only operate in this state for a limited time. Consult Parker for additional information The operator has entered the emergency override screen and activated the emergency by-pass of the HP pump inlet sensor has been set high-pressure pump inlet pressure sensor. - Page 37 Brine flow sensor has been set to system brine flow sensor. The system can still function by-pass by user. in this mode but only for a limited time. Consult Parker for additional information. The operator has activated the emergency by-pass of...
- Page 38 Emergency operation system. Operation can continue until the maximum mode active. preset time has elapsed (50hrs). Contact Parker for additional information The vessel potable water storage tank reports being full, and the system has been stopped to avoid Tank level control detected overflowing of this tank.
