Operating Instructions

Power Up and Boot Sequence

Simultaneously press and hold the AUDIO and FREQ
buttons until the counter passes 3 and the boot up se-
quence is initiated. As the unit turns on, the Modulation
LEDs and PWR (power) LED all glow red, then green,
and then revert to normal operation.
Modulation
LEDs
PWR LED
The LCD displays a boot up sequence which consists
of four screens:
Company Name:
Frequency Block (bXX)
and Firmware Version (rX.X):
Compatibility Mode:
Audio:

Power Down

Initial Power Off
Timer Screen
When the counter reaches 0, the unit turns off.
Note: If the AUDIO and FREQ buttons are
released before the LCD goes blank at the
end of the countdown, the unit will not turn off.
Instead, it will stay energized and the display will
return to the previous screen.

Automatic Power Restore

The firmware will remember the power on/off state
and the settings when batteries reach their end of life
or are removed. When fresh batteries are installed,
the unit will reboot and return to the previous settings
without the need to press any buttons. This only works
when the unit is fully on and transmitting.
NOTE: Automatic power restore does not work
when the transmitter is in the Standby Mode.
Rio Rancho, NM

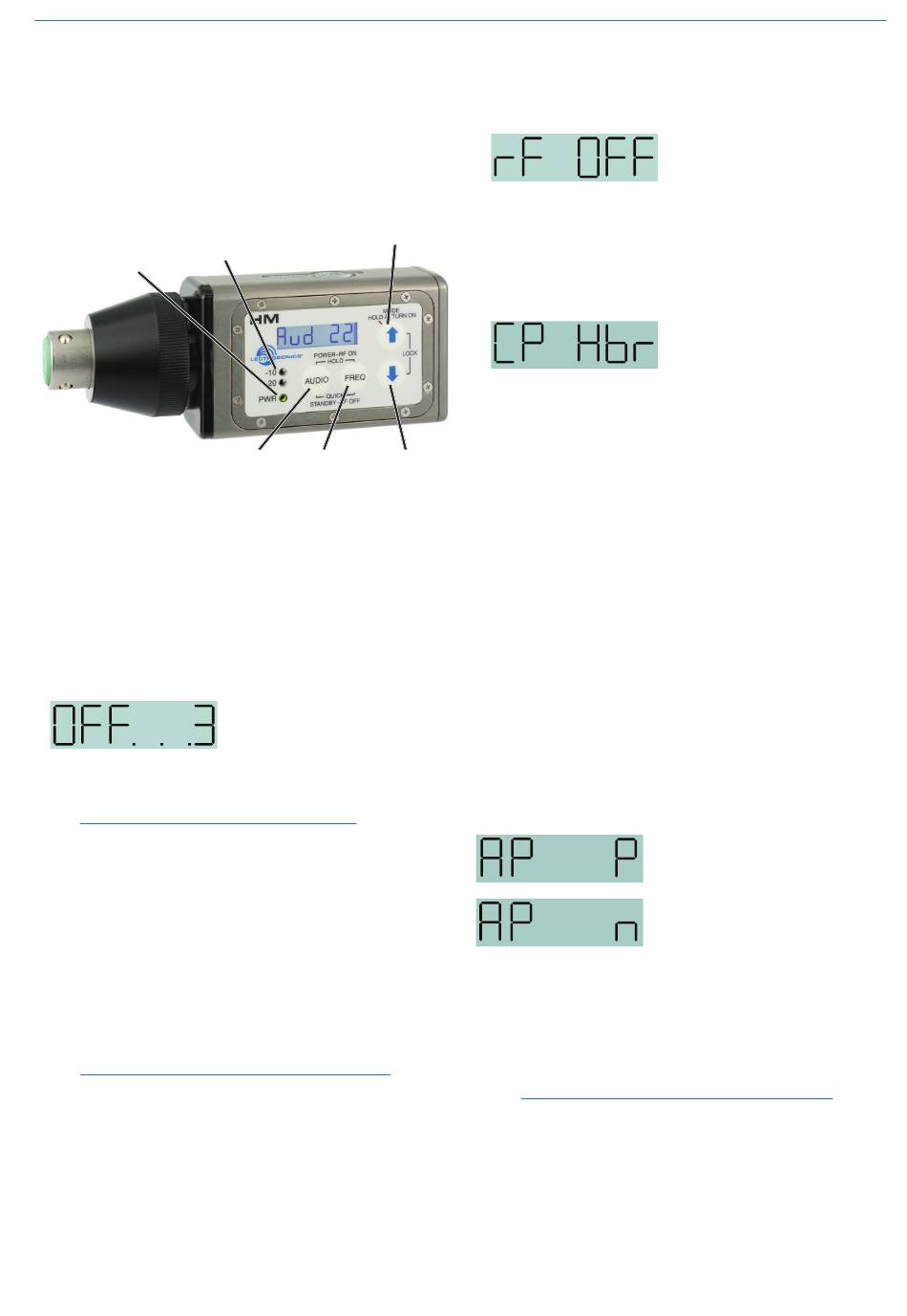

UP Arrow
AUDIO FREQ DOWN Arrow
Button
Button
Lectro
b21r1.1 (typ)
CP Hbr (typ)
Aud 22 (typ)
Simultaneously press and
hold the AUDIO and FREQ
buttons while observing that
the word OFF appears in the
LCD along with a counter.
Digital Hybrid

Standby Mode

frequency or audio input level without transmitting a
signal. Quickly press and release both the AUDIO and
FREQ buttons simultaneously to enter and exit this
mode. The characters rF OFF will appear on the LCD
until a button is pressed.

Selecting the Compatibility Mode

Digital Hybrid Wireless
®
Compatibility Mode
1) Set the receiver audio output to minimum.
2) From a power off condition, hold down the trans-
mitter UP arrow button, then simultaneously press
the AUDIO and FREQ buttons.
3) The LCD will display the current Compatibility
Mode. Use the UP or DOWN arrow buttons to set
the Compatibility Mode to match the correspond-
ing receiver.
The following Compatibility Modes are available:
• Digital Hybrid mode:
• IFB Series mode:
4) Pressing the AUDIO or FREQ exits into the
Standby Mode (see above). To power off from any
of the screens, press the AUDIO and FREQ but-
tons simultaneously.
Note: The RF output of the transmitter is turned off while
making these selections to avoid interfering with other wire-
less equipment nearby.

Selecting the Audio Polarity

Audio Polarity can be
reversed as needed
from the setup screen
(audio polarity) setup screen. Use the UP and DOWN
arrows to select the desired polarity. The character P
denotes "positive" polarity and the character n de-
notes "negative" polarity.
NOTE: The audio polarity can also be reversed
at the output of most Lectrosonics receivers.
® Plug-On Transmitter
The Standby Mode allows you
to verify or change the
transmitter's operating
The HM/E01 will work with
E01 Series wireless and IFB
receivers. To select the mode,
enter the setup screens with
the following procedure.
CP Hbr
CP IFb
(Firmware rev. 1.5 and up)
Hold the UP arrow in and
press the AUDIO and FREQ
buttons simultaneously to enter
the setup mode. The display
will first enter the CP (compat-
ibility mode) setup screen.
Press either the AUDIO or
FREQ button to enter the AP
7
