Summary of Contents for CAN CU 7000

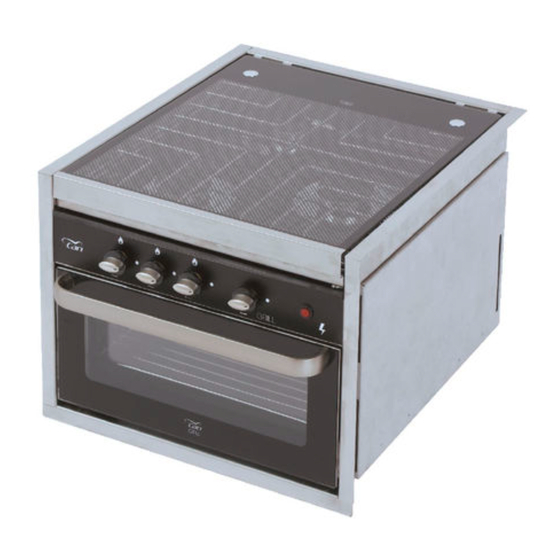

- Page 1 INSTRUCTION BOOKLET CU 7000 BUILT IN GAS COOKER WITH MINIGRILL INSTALLATION MAINTENANCE...
- Page 2 CAN S.r.l. Via Nazionale 65, 25080 Puegnago del Garda – (BS) ITALY www.cansrl.com info@cansrl.com tel. +39 0365 555909 fax. +39 0365 651822 CAN Srl – CU 7000 – ENGLISH – Rev 1/2018...
- Page 3 Fig. X () These data refer to an element in a figure CAN S.r.l., as the manufacturer, reserves the right to make changes to its products and to this manual which it deems necessary without being obliged to provide advance notification.
-
Page 4: Table Of Contents
LONG PERIODS OF INACTIVITY ....................36 DISPOSAL ON DECOMMISSIONING.................... 36 AFTER SALES SUPPORT ........................37 PROCEDURE IN THE EVENT OF A MALFUNCTION ..............37 SPARE PARTS ..........................38 SPARE PARTS ..........................38 NOTES ............................39 CAN Srl – CU 7000 – ENGLISH – Rev 1/2018... -
Page 5: Equipment And Content Of Packaging
Inside the packaging, there is the installation, use and maintenance manual (Fig. 3) and a mounting kit (Fig. 4) including the screws and any accessories for installation of the product on kitchen furniture. Fig. 1 Fig. 3 Fig. 4 Fig. 2 CAN Srl – CU 7000 – ENGLISH – Rev 1/2018... -
Page 6: Labelling - Ce Marking
PRODUCT RANGE MODEL CE CERTIFICATION SERIAL NO. DESCRIPTION OF THE WORKING PRESSURE - CERTIFICATION PARAMETERS - COUNTRIES POWER AND TOTAL CONSUMPTION BARCODE - PRODUCTION SERIAL NO. DATE OF MANUFACTURE CE MARK CAN Srl – CU 7000 – ENGLISH – Rev 1/2018... -
Page 7: Technical Data Sheet - Product Data
Button and generator 12 V / DC IGN ONLY VERY LOW VOLTAGE CONNECTION POWER SUPPLY: BUTANE (I3+) G30 (28-30 mbar) PROPANE(I3+) G31 (37 mbar) BUTANE-PROPANE (I3B/P) G30-G31 (30 mbar) Fig. 6 CAN Srl – CU 7000 – ENGLISH – Rev 1/2018... - Page 8 72.50 g/h SEMI-RAPID 1.75 kW 0.55 kW 0.65 mm 0.36 mm 127.50 g/h GRILL 1.70 kW 0.90 kW 0.65 mm 0.44 mm 125.50 g/h TOTALE 6.20 kW 2.50 kW 453.00 g/h CAN Srl – CU 7000 – ENGLISH – Rev 1/2018...
-
Page 9: Installation
(safety shoes, gloves, etc.) CONTROL AND MAINTENANCE After opening the packaging, remove the appliance and having removed all the packaging and possible protective film, check there are no obvious anomalies: if CAN Srl – CU 7000 – ENGLISH – Rev 1/2018... -
Page 10: Disposal Of Packaging
The appliances can only be assembled on furniture whose material is resistant to heat. The work counter must be fitted in a perfectly horizontal position and perpendicular to all the surrounding vertical panelling. - Page 11 DISTANCE MINIMUM VALUE 50 mm 37 mm 20 mm 524 mm 55 mm 80 mm 650 mm (minimum distance between the work counter/installation of the kitchen and the press above) CAN Srl – CU 7000 – ENGLISH – Rev 1/2018...
-
Page 12: Switch On And Electrical Connection
CAN Srl – CU 7000 – ENGLISH – Rev 1/2018... - Page 13 FORBIDDEN - NEVER CONNECT THE APPLIANCE TO MAINS WITH VOLTAGE OVER 12V AND IN ALTERNATING CURRENT. A similar connection would cause irreversible damage to the appliance and pose a significant danger to the user's life. CAN Srl – CU 7000 – ENGLISH – Rev 1/2018...
-
Page 14: Gas Connection
All installation and connection operations must be performed only by qualified technical staff. CAN Srl – CU 7000 – ENGLISH – Rev 1/2018... - Page 15 FORBIDDEN - NEVER USE OPEN FLAMES BEFORE PASSING THE INSPECTION TEST! IF THE OUTCOME OF THE TEST IS SATISFACTORY, you can proceed to switch on all the burners (consult page 24) to check the flame is stable and regular. CAN Srl – CU 7000 – ENGLISH – Rev 1/2018...
- Page 16 Check the nozzles are suitable for the type of gas used. Check compatibility and correct calibration of the pressure regulator if present. Check supply tube (tube obstructed, tube bent/crushed, tube excessively long, unsuitable tube, etc...). CAN Srl – CU 7000 – ENGLISH – Rev 1/2018...
-
Page 17: Appliance Fitting
Arrange the appliance over the fitting hole by pushing it against the top. Block the appliance with the fastening kit screws supplied with the product. Fig. 9 For non-standard manufactures, the fastening system is customised. CAN Srl – CU 7000 – ENGLISH – Rev 1/2018... -
Page 18: Use
(e.g. extractor hood). ATTENTION - The appliance is equipped with a glass cover to protect and decorate the hob. The glass covers can break if heated with a direct flame or if placed in immediate contact with very high sources of heat. - Page 19 DANGER OF FIRE - Never position heat-sensitive or inflammable objects (pot holders, curtains, bottles of alcohol, etc...) near the appliance. The area near the appliance can be very hot, pay attention to positioning of electricity sockets, other electrical appliances, electrical cables, tubing and any other heat-sensitive or inflammable material in this space.
-
Page 20: Specific Warnings For Cooking
ATTENTION - Ensure the cooking containers rest correctly on the grate without wobbling. The containers must have an adequate diameter for the burner chosen and must not protrude from the grate. The CAN Srl – CU 7000 – ENGLISH – Rev 1/2018... -
Page 21: Before Starting
BEFORE STARTING KNOW THE APPLIANCE (the images have a purely indicative value) Fig. 10 CAN Srl – CU 7000 – ENGLISH – Rev 1/2018... - Page 22 CAN Srl – CU 7000 – ENGLISH – Rev 1/2018...
- Page 23 GRILL COMPARTMENT INNER GRILL GRILL COMPARTMENT INNER DRIPPING PAN GAS MAIN RAMP TERMINAL 12V GENERATOR CONNECTION CABLES EYELETS FOR COMBUSTIVE AND COOLING AIR CIRCULATION STEEL SIDE FRAMES GAS TAPS ADJUSTMENT KNOB CAN Srl – CU 7000 – ENGLISH – Rev 1/2018...
- Page 24 (Fig. 11). (the images have a purely indicative value) Fig. 11 CAN Srl – CU 7000 – ENGLISH – Rev 1/2018...
- Page 25 DETAIL A – TYPICAL GAS TAP FOR HOB BURNER Fig. 12 DETAIL B - GAS TAP FOR GRILL BURNER Fig. 13 RUBINETTO GRILL MAX (90°) RUBINETTO GRILL MIN (160°) RUBINETTO GRILL CHIUSO (0°) CAN Srl – CU 7000 – ENGLISH – Rev 1/2018...
-
Page 26: Use Of Appliance
(e.g. liquid overflows from the pan), the thermocouple will cool in a few seconds and this blocks the gas exiting the nozzle, preventing the premises being saturated with unburned gas. CAN Srl – CU 7000 – ENGLISH – Rev 1/2018... - Page 27 THERMOCOUPLE FOR FAST-ON MAGNET TAP CLIP FOR CANDLE CANDLE FOR BURN. IGNITION L 350 COVER 055 BURN 2 SERIES AUX PERFORATED AND ENAMELLED GAS RING FOR BURNER 2nd SR AUX CAN Srl – CU 7000 – ENGLISH – Rev 1/2018...
- Page 28 FLAME ADJUSTMENT 4) Check the flame is regular and stable. Then, turn the knob to the desired position (MIN or MAX). You can position the knob in the intermediate position, between the maximum and minimum, but NOT between the maximum and “closed” position (0° angle) (Fig. 12). If the flame is irregular, check the correct positioning of the gas rings and the caps.
- Page 29 When the appliance is working, humidity, heat and combustion products will be released into the environment. It is therefore fundamental for the premises to be adequately ventilated. For example, ventilation can take place via: 1) natural openings (e.g. windows, etc.…) CAN Srl – CU 7000 – ENGLISH – Rev 1/2018...
- Page 30 - The burners won’t stay on. - The burners go out when the kitchen doors move. - The gas valves are difficult to rotate. If the appliance is not working, contact the authorised local dealer. CAN Srl – CU 7000 – ENGLISH – Rev 1/2018...
-
Page 31: Description And Use Of The Oven And Grill
BICONIC ADAPRTOR FOR BOWL NUT FOR PARABOLA FASTENING PIN REFLECTIVE PARABOLA BRF L300 BOWL FOR OVEN BURNER WAVE GUIDE TUBE OVEN AND GRILL BURNER CANDLE FASTENING SPRING INJECTOR 0.80 FOR GRILL BURNER CAN Srl – CU 7000 – ENGLISH – Rev 1/2018... - Page 32 9) Close the door again until it comes in contact with the previously removed extractable deflector. The oven grill compartment will therefore remain partially open when the appliance is on. SWITCHING OFF THE GRILL BURNER CAN Srl – CU 7000 – ENGLISH – Rev 1/2018...
-
Page 33: Accessories
Only use saucepan, pans and accessories expressly designed for this use, made from materials resistant to high temperatures and suitable for contact with food. ACCESSORIES No accessories are planned for this type of product. CAN Srl – CU 7000 – ENGLISH – Rev 1/2018... -
Page 34: Maintenance
If some particular acidic substances (e.g. vinegar, lemon juice, etc..) remain for long periods on the appliance, they could damage the surface creating unsightly stains which would not however prejudice functionality of the appliance. CAN Srl – CU 7000 – ENGLISH – Rev 1/2018... -
Page 35: Routine Maintenance
Gas rings, caps, grates: after the components have cooled, remove them from their compartment and wash them with hot water and detergent for plates. Stubborn dirt on cast iron components can be removed using a slightly abrasive sponge and a greaser, taking care not to damage the enamelled parts. -
Page 36: Long Periods Of Inactivity
If the product is found in a country other than Italy, you must comply with legislation in force for your country. The equipment can be decommissioned for disposal by removing the electrical power cables. -
Page 37: After Sales Support
AFTER SALES SUPPORT CAN Srl assures you of its maximum collaboration and support if technical problems should arise or of any other nature on each of its products. For any information or support request, contact your nearest dealer or contact the manufacturer. -
Page 38: Spare Parts
SPARE PARTS The user or installation technician can find in this booklet the list of all components of the hob subject to wear and replacement of parts and original spare parts. (see pages 20-21) ATTENTION –... -
Page 39: Notes
