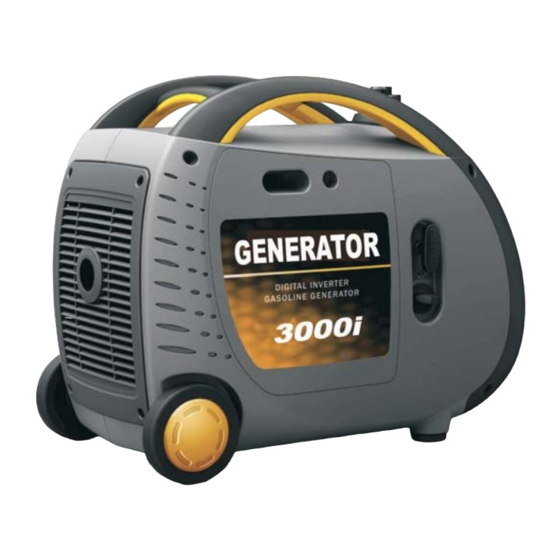

ERMA 3000i Owner's Manual

Digital inverter generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

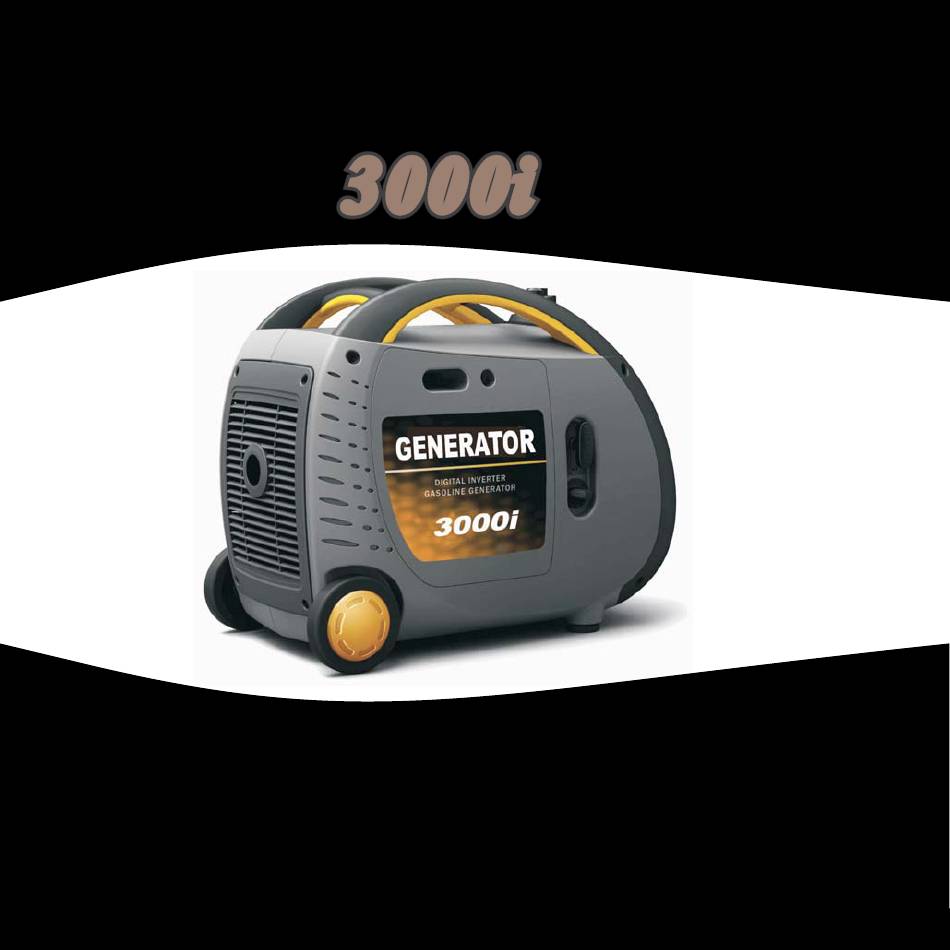

OWNER'S MANUAL
DIGITAL INVERTER
GENERATOR
3000i
4-STROKE ENGINE
PLEASE BE SURE TO READ THIS MANUAL
BEFORE STARTING YOUR GENERATOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3000i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ERMA 3000i

Summary of Contents for ERMA 3000i

  • Page 1 OWNER'S MANUAL DIGITAL INVERTER GENERATOR 3000i 4-STROKE ENGINE PLEASE BE SURE TO READ THIS MANUAL BEFORE STARTING YOUR GENERATOR...
  • Page 2 PREFACE Thank you for purchasing a generator. This manual cover operation and maintenance of the generator. Reserves the right to make changes at anytime without notice and without taking any obligation. This publication can’t be reproduced without written permission. Pay special attention to the following works: If a problem should arises or if you have any questions about them, consult an authorized dealer.

  • Page 3: Table Of Contents

    CONTENTS Introduction Environmental protection Scope of product Description of symbols Specifications General safety instructions for power tools Risk of electrocution and fire Risk of fire Risk of injury and property damage when transporting generator Risk from lifting Risk of unsafe operation Risk of breathing –...
  • Page 4 AC Applications DC Applications Generator maintenance Storage/ Transportation Maintenance schedule Spark plugs Engine oil replacement Air filter Spark arrester maintenance Cleaning Repairs General inspection Troubleshooting...

  • Page 5: Introduction

    1、Introduction Your new product will more than satisfy your expectations. It has been manufactured under stringent Quality Standards to meet superior performance criteria. You will find your new item easy and safe to operate, and, with proper care, it will give you many years of dependable service.

  • Page 6: Specifications

    3800rpm (With SMART throttle switch OFF) Cooling system Forced air Ignition system Full transistor Oil capacity 0.5L Fuel tank capacity 4.8L Generator Model 3000i Rated voltage (V) Rated Frequency (Hz) AC output Rated ampere (A) 10.9 10.4 10.0 21.8 20.0 Rated output (KVA) Max output (KVA) Only for charging 12V automotive batteries.

  • Page 7: General Safety Instructions For Power Tools

    6、General safety instructions for power tools To use this product properly, you must observe the safety regulations, the assembly instructions and the operating instructions to be found in this Manual. All persons who use and service the machine have to be acquainted with this Manual and must be informed about its potential hazards.
  • Page 8 9. Secure the work piece. Use clamps or a vice to hold the work piece. It is safer than using your hand and frees both hands to operate the tool. 10. Do not overreach. Keep your footing secure and balanced at all times. 11.

  • Page 9: Risk Of Electrocution And Fire

    7、Risk of electrocution and fire Hazard What could happen How to prevent it Improper storage of Extension cord can come into contact with hot engine parts Remove extension cord from the generator extension cord. resulting in damage. Using a damaged extension cord can result in and store separately away from generator.

  • Page 10: Risk Of Fire

    8、Risk of fire Hazard What could happen How to prevent it Attempting to fill the Coming in contact can ignite fuel and fuel vapors with hot Turn engine off and allow it to cool before adding fuel to fuel tank while the components such as the muffler, engine exhaust gases, or the tank.

  • Page 11: Risk Of Injury And Property Damage When Transporting Generator

    9、Risk of injury and property damage when transporting generator Hazard What could happen How to prevent it Fire, Fuel or oil can leak or spill and could result in The generator is equipped with a fuel drain screw; adjust the screw to the off inhalation, fire or breathing hazard, serious injury or position before transporting to avoid fuel leaks.

  • Page 12: Risk Of Unsafe Operation

    11、Risk of unsafe operation Hazard What could happen How to prevent it Operation of generator All sources of energy include the Review and understand all of the operating instructions and warnings in this in careless manner. potential for injury. Unsafe operation or manual.

  • Page 13: Risk Of Breathing - Inhalation Hazard

    12、Risk of breathing – inhalation hazard Hazard What could happen How to prevent it Gasoline engines produce toxic carbon Breathing exhaust fumes will Operate generator in clean, dry, well-ventilated area. Never monoxide exhaust fumes. cause serious injury or death. operate unit in enclosed areas such as garages, basements, storage, sheds, or in any location occupied by humans or animals.

  • Page 14: Additional Safety Rules For Generators

    14、Additional safety rules for generator ●ERMA generator is designed to give safe and dependable service if operated according to instructions. Read and understand the Owner’s Manual before operating the generator. Failure to do so could result in personal injury or equipment damage.
  • Page 15 ●The muffler becomes very hot during operation and remains hot for a while after stopping the engine Be careful not to touch the muffler while it is hot. Let the engine cool before storing the generator indoors. The engine exhaust system will be heated during operation and remain hot immediately after stopping the engine.
  • Page 16 ●Always make a pre-operation inspection before you start the engine. You may prevent accident or equipment damage. ●Place the generator at least 1m(3ft) away from buildings or other equipment during operation. ●Operate the generator on a level surface. If the generator is tiled, fuel spillage may result. ●Know how to stop the generator quickly and understand operation of all the controls.

  • Page 17: Unpacking

    15、Unpacking Due to modern mass production techniques, it is unlikely that your ERMA Power Tool is faulty or that a part is missing. If you find anything wrong, do not operate the tool until the parts have been replaced or the fault has been rectified.

  • Page 18: Know Your Product

    17、Know your product (1) ENGINE SWITCH (7) FUEL DRAIN HOSE1 (2) STARTER GRIP (8) FUEL DRAIN HOSE2 (3) MAINTENANCE COVER SCREW (9) FUEL TANK CAP (4) CHOKE LEVER (10) Panel assy. (5) FRONT SIDE MAINTENANCE COVER (11) FRONT HAND (6) MUFFLER (12) SPARK PLUG MAINTENANCE COVER (13)WHEEL...
  • Page 20 (14) DC Circuit protector (15) DC SOCKET (16)SMART THROTTLE SWITCH (17) OIL ALERT INDICATOR LIGHT (18)OVERLOAD INDICATOR LIGHT (19) OUTPUT INDICATOR LIGHT (20) AC SOCKET (21) EARTH (22) FUEL DRAIN SCREW (23)AIR CLEANER SCREW (24)AIR CLEANER COVER (25) OIL FILLER CAP...
  • Page 21 Smart throttle Engine speed is kept at idle automatically when the electrical appliance is disconnected and it returns to the proper speed to power of the electrical load when electrical appliance is connected. This position is recommended to minimize the fuel consumption while in operation. NOTE.

  • Page 22: Pre-Operation Check

    18、Pre-operation check Be sure to check the generator on a level surface with the engine doesn’t work. ① Check the engine oil level. 1. Loosen the 2-maintenance cover screw (3) and remove the front side maintenance cover. (Fig.A) 2. Remove the oil filler cap by rotating the cap anti-clockwise and inspect to see the oil level (Fig.B).
  • Page 23 ② Check the fuel level. 1. Make sure the generator is turned off, by rotating the engine switch (7) to the ‘off’ position (Fig.D ). 2. Check the fuel by a visual check. Remove the fuel cap and fuel filter screen reviewing the fuel level (Fig.E).

  • Page 24: Starting The Engine

    Note. If the fuel drain screw (21) is not tight fuel will be visibly leaking from the fuel drain hose (8). • Be careful not to admit dust, dirt, water or other foreign objects into the fuel. • Wipe off spilt fuel thoroughly before starting engine. •...
  • Page 25 To start a cold engine move the choke lever to the start position. In order to restart a warm engine, leave the choke lever in the run position (Fig.I). Slowly pull the recoil starter until you feel it engage and then pull it briskly. Return the recoil starter gently and slowly to the original position by hand (Fig.J).

  • Page 26: Stopping The Engine

    20、Stop the engine 1. Before stopping, ensure that no electrical apparatus is connected to the generator. 2. Turn the engine switch (7) to the ‘off’ position (Fig.L). 3. Turn the fuel (2) vent lever to the ‘off’ position (Fig.M). Connecting apparatus to the generator Please note that it is not recommended to run the unit over its max output of 2800W for more than a maximum of 20 minutes.

  • Page 27: Ac Applications

    21、AC Applications 1. Start the engine. Make sure the green output indicator light (18) comes on (it may take up to 3 seconds). Allow the motor to run for a couple of minutes to warm up prior to connecting any apparatus to the generator. 2.

  • Page 28: Dc Applications

    WARNING. Prior to connecting any appliance to the generator, check the rating label of the appliance. The generator is rated at 2400W so if the appliance being connected is higher than 2400W, the protective cut out may switch the generator off to prevent over load damage to the generator.
  • Page 29 5. For a fully charged battery, the specific gravity range shall be within 1.26 to 1.28. It is recommended to be checked and confirmed every hour. 6. Start the generator. Make sure the green output indicator light (18) comes on. Allow the motor to run for a couple of minutes to warm up prior to connecting any apparatus to the generator.

  • Page 30: Generator Maintenance

    • If electrolyte gets on your skin, flush with water. • If electrolyte gets in your eyes, flush with water for at least 15 minutes and call a physician immediately. • Electrolyte is poisonous. If swallowed, drink large quantities of water or milk and follow with milk of magnesia or vegetable oil and call a physician.
  • Page 31 vehicle for many hours, high temperature inside the vehicle could cause fuel to vaporize resulting in a possible explosion. ■Do not drive on a rough road for an extended period with the generator on board. If you must transport the generator on board. If you must transport the generator on a rough road, drain the fuel from the generator beforehand.
  • Page 32 4. Remove the spark plug and pour about a tablespoon of clean engine oil into thecylinder. Crank the engine several revolutions to distribute the oil, then reinstall thespark plug. 5. Slowly pull the starter grip until resistance is felt. At this point, the piston is coming up on its compression stroke and both the intake and exhaust valves are closed.

  • Page 33: Maintenance Schedule

    25、Maintenance schedule Every 3 Every 6 Every Each First month Item Remarks months months Year or or 10Hrs or 50Hrs or 100Hrs 300Hrs Check ● Engine oil Change ● ● Check ● Air cleaner Clean ●(2) Spark plug Clean-adjust ● Spark arrester Clean ●...

  • Page 34: Spark Plugs

    26、Spark plugs 1 .emove spark plug maintenance cover (11) from the generator housing (FigT). 2.Remove the spark plug lead (Fig.U). 3.Remove any dirt from around the spark plug base. 4.With the spark plug wrench provided remove the spark plug (Fig.V). 5.Visually inspect the spark plug.

  • Page 35: Engine Oil Replacement

    27、Engine oil replacement 1. Place the generator on a level surface and warm up the engine for several minutes. Then stop the engine. 2. Loosen the side maintenance cover screw (3) and remove the side maintenance cover. 3. Remove the oil filler cap (24). 4.
  • Page 36 ALWAYS keep the filter clean at all times. (Fig.Y). 1. Remove the side maintenance cover (5). 2. Loosen the air cleaner filter cove screw, and remove the air cleaner filter cove. (Fig.Z). 3. Proceed to remove the air filter by pulling it out towards you. 4.

  • Page 37: Spark Arrester Maintenance

    29、SPARK ARRESTER MAINTENANCE(Equipped type only) In a dry or wooded area, it is recommendable to use the product with a spark arrester. Some areas require the use of a spark arrester. Please check your local laws and regulations before operating your product. The spark arrester must be cleaned regularly to keep it functioning as designed.

  • Page 38: Cleaning

    30、Cleaning 1. Keep your machine clean. The outside of the machine can be cleaned using a damp soft cloth with a mild detergent if required. Never use water to clean the generator as it may cause damage to internal parts. 2.

  • Page 39: Troubleshooting

    33、Troubleshooting Trouble Possible cause Suggested remedy Engine will 1. Low on fuel or oil content 1. Add fuel or oil not start 2. Ignition switch in “Off” position 2. Turn to “ON” position 3. Faulty spark plug 3. Replace spark plug 4.
  • Page 40 Troubleshooting cont. Generator 1. Has the choke been elevated to the Run 1. Check to make sure that the choke has been running elevated to the run position. If not elevate the position rough choke to the run position 2. Has the generator got old fuel in it, that has 2.
  • Page 41 Generator 1. Generator may have fallen over 1. Check to make sure that the generator is in it’s correct stops upright position. If not take corrective action to put it in the upright position 2. Generator may have ran out of oil 2.
  • Page 42 OWNER'S MANUAL DIGITAL INVERTER GENERATOR Movement state(short handle) Movement state(long handle) 4-STROKE ENGINE GENERATOR...
