EleMake S110BBL-F Instruction Manual

Smart door lock
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

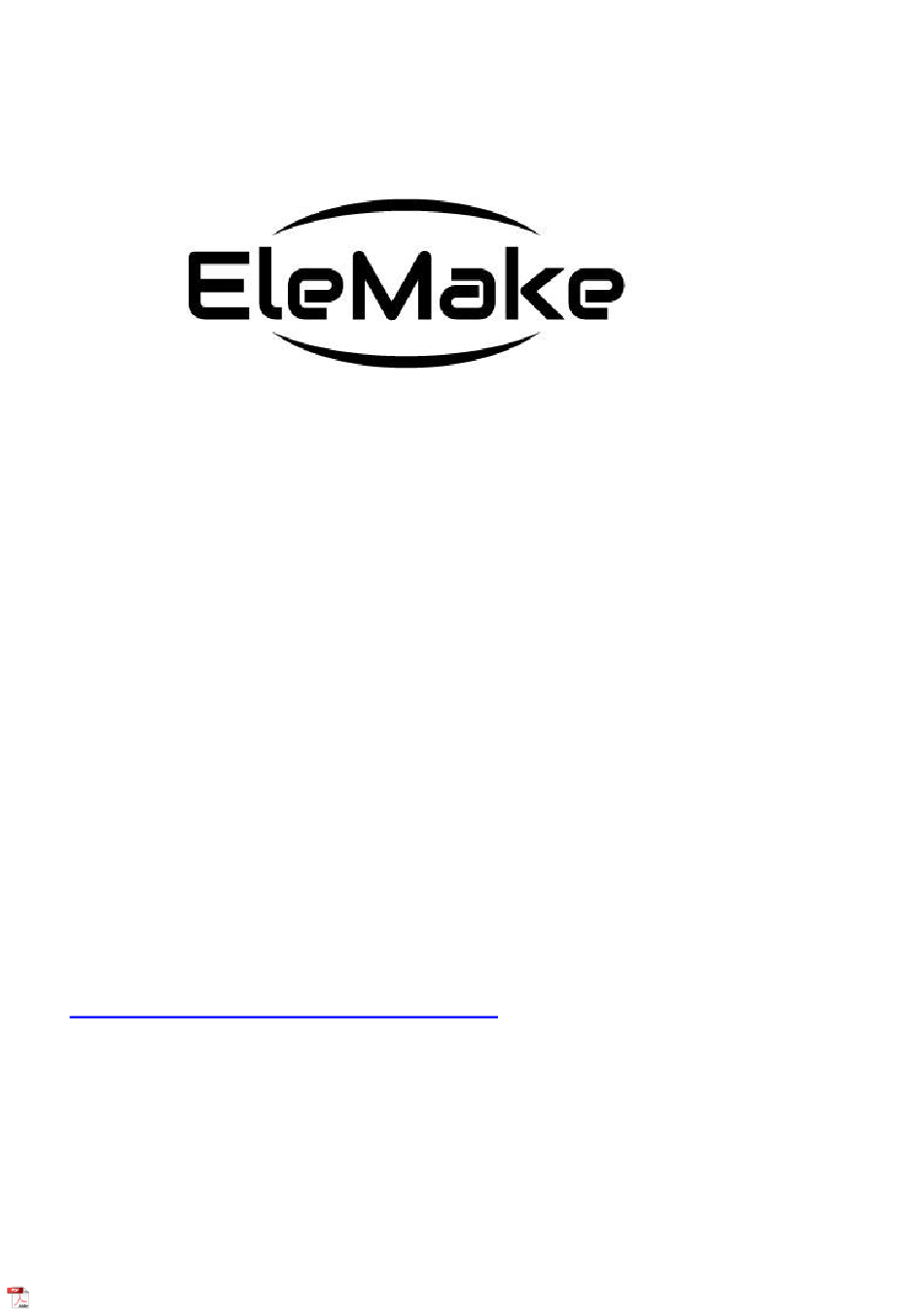

Smart Door Lock
S110BBL-F
FOR CUSTOMER SERVICE PLEASE CALL:
(800)-315-9607
WWW.ELEMAKELOCKS.COM
Elemake keeps on working hard to provide customers top-grade
quality hardware at affordable price. Gracing customers' doors
with stylish designs and excellent craftsmanship since 1976,
Elemake is always dedicated to making your life more safe and
stylish.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S110BBL-F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EleMake S110BBL-F

Summary of Contents for EleMake S110BBL-F

  • Page 1 FOR CUSTOMER SERVICE PLEASE CALL: (800)-315-9607 WWW.ELEMAKELOCKS.COM Elemake keeps on working hard to provide customers top-grade quality hardware at affordable price. Gracing customers’ doors with stylish designs and excellent craftsmanship since 1976, Elemake is always dedicated to making your life more safe and stylish.
  • Page 2 All of ELEMAKE ITD series keyless deadbolt products come with a 5 years’ warranty. NOTE TO INSTALLER Watching the videos are highly recommended, the video will help the customer to understand the installation and functions more easily.
  • Page 3 Initial Password: 123456...

  • Page 4: Table Of Contents

    ……..…………………………………………….………….7-8 4. Setting up..................4 4.1 Steps to setup ..............4 4.2 Add members ..............4 4.3 Connect to Wifi ..............4 5. How to use the Elemake touchscreen deadbolt 3.2.1 Basic Functions(Local Operation) …………….……………9-10 3.2.2 Internet Functions…………………………………………..11-13 5. Trouble shooting................4 6. Quality Policy………………………………………………………………………….20...

  • Page 5: Warnings

    1. WARNINGS FCC: Class B Equipment Series ITD series deadbolt has been tested and found to comply with the limits for a Class B digital device---Part 15 of the FCC Rules. These limits are purposed to provide protection against harmful interference in a residential environment.
  • Page 6 2. RESET DEADBOLT TO FACTORY DEFAULT The following procedure clears all the setting of the deadbolt, and returns the deadbolt to default – deleting all user password/fingerprint/card. 2.1 RESET METHOD 1( see Figure A-1 to Figure A-4) Remove the batteries and wait for 20 seconds, Figure A-1 Hold down the reset button...
  • Page 7 Install the batteries into the inside escutcheon Figure A-3 Hold down the reset button 10-30s till voice says “reset success” Figure A-4 2.2 RESET METHOD 2( see Figure B-1) This method is only for the family member who already get the password/fingerprint enrolled(Please must keep the door opened when doing the reset)
  • Page 8 Touch the screen with the back of hand to activate the deadbolt,and input 888 , The voice will remind family member to input the enrolled password or touch the fingerprint for validation. After validation, the deadbolt will be reset till the voice says ”Reset success”...

  • Page 9: Installation

    3. INSTALLATION IMPORTANT THINGS INSTALLER NEED TO KNOW PRIOR TO INSTALLATION Initial password “123456” Bolt Direction Please make sure the bolt is installed in correct direction according to ”up” mark on the bolt. (see Figure C1) Figure C-1 The bolt must be in a retracted (unlocked) position when installing the lockset.
  • Page 10 Thumb turn on inside escutcheon need to be turned to different position for right handed door or left handed door in inside escutcheon installation. (see Figure C-5) Horizontal Position Vertical Position For Right Handed For Right Handed Door Door Figure C-5 Before installing the batteries, test the mechanical operation of the lock by using Both thumb turn and the key.
  • Page 11 Figure C-6 After the installation, connect the deadbolt to Smartlife APP, choose the correct setting for door direction(setting>motor rotation direction>clockwise unlock/counterclockwise unlock) (see Figure C-7) Figure C-7 Choose COUNTERCLOCKWISE for RIGHT HANDED DOOR Choose CLOCKWISE for LEFT HANDED DOOR...

  • Page 12: Step 1

    h. Assembly drawing(See Figure C-8) Figure C-8 3.1 STEP 1----DEFINE THE RIGHT HANDED OR LEFT HANDED DOOR. To Ensure Proper Lock Handing and for an explanation of how to determine your lock handing, please read this important note. (see Figure D-1)

  • Page 13: Step 2

    Figure 3I Inside Right –Handed Left-Handed Door Door Outside Figure D-1 3.2 STEP 2----COMPONENTS AND TOOLS (1) Components Included in the box(see Figure E-1)---- User’s manual Outside Escutcheon Bolt Strike Plate Screw Pack (see below) Keys Door Position Sensor(For automatic relocking--optional) PARTS ILLUSTRATIONS...

  • Page 14: Step 3

    Figure E-1 (2) Tools Needed 2-1/8" (54mm) hole saw 1" (26mm) boring bit Wood screw drill bit Chisel & hammer 3.3 STEP 3----PREPARE DEADBOLT FOR INSTALLATION (1) Inside Escutcheon and back cover(see Figure F-1)
  • Page 15 Use a pin to press down the button to slide up the battery cover to take off the batteries Figure F-1 (2) Mount Plate(See Figure F-2) This circled position is the wire slot which will allow the cable from the outside escutcheon to go through in installation Figure F-2 (3)Bolt(See Figure F-3)
  • Page 16 Press small black button on underside of bolt and pull to extend to 2-3/4" backset position. Figure F-3 (4) Outside escutcheon The outside escutcheon (with gasket) remains assembled(see Figure F-4). Figure F-4 3.4 STEP 4----INSTALL DEADBOLT & Door Position Sensor (1) Install bolt in door.(see Figure G-4, Figure G-5, Figure G-6) NOTE: THE BOLT MUST BE IN A RETRACTED (UNLOCKED) POSITION PRIOR TO INSTALLING THE LOCKSET.(see Figure G-5)
  • Page 17 Use 25mm wood screw to secure the bolt onto the door. Make sure the bolt stay upward Figure G-4 The bolt must be retracted prior to installation Figure G-5 The spindle need to be in vertical position in installation...
  • Page 18 Install strike on the door frame, making sure to allow for the bolt to be centered in the strike. Figure G-6 (2) Install outside escutcheon(see Figure H-1, Figure H-2, Figure H-3, Figure H-4) NOTE: Cable goes UNDER the bolt（See Figure H-2） Cable from outside escutcheon should go though the right side slot of the mount bracket（See Figure H-4）...
  • Page 19 Figure H-2 The cable need to go under the bolt in installation Holding the outside escutcheon flush to the door, position the inside mounting plate by first routing the cable and connector through the mounting plate's wire slot on the side Insert the mounting plate “tongue”...
  • Page 20 Figure H-4 Cable from outside escutcheon should go though the right side slot of the mount bracket (3) Route cable(see Figures I-1 and Figure I-2, Figure I-3). (a) Attach cable assembly to the inside escutcheon printed circuit board (PCB) by lining up notches on top of cable connector to slots on PCB connector (Figure 3K).
  • Page 21 Door Position Sensor Outside Escutcheon Connector/cable Cable/Connector Figure I-2 Figure I-3 (4) Install inside escutcheon and door position sensor(For automatic relocking) （see Figure J-1, Figure J-2, Figure J-3, Figure J-4 Figure J-5 ,Figure J-6, Figure J-7） IMPORTANT: Before installing the batteries, test the mechanical operation of the lock by using both thumb turn and the key.
  • Page 22 For right handed or left handed door, the thumb turn need to be put in different position prior to installation. And please make sure the bolt is retracted for installation. Figure J-2 Vertical Position For Horizontal Position Right Handed Door For Left Handed Door The length of the spindle can be cut to adapt to the...
  • Page 23 For user need automatic relocking function------- Install the door position sensor on the side of the door, another part(magnet) need to be installed opposite to the door position sensor. The center of the door position sensor and the magnet need to be aligned in same line. If user want to use manual relocking, just don’t install the door position sensor.
  • Page 24 Insert four (4) AA alkaline batteries. The lock keypad will be lighted up. When activating the lock for the first time, please set the rotation direction of the lock Slide on the battery cover till a “click”. Figure J-6 IMPORTANT: CHOOSE MOTOR ROTATION DIRECTION After the above installation steps, connect the deadbolt to Smartlife APP (see 4.1---(1) and 4.1---(2) ), choose the correct setting for right handed or left handed door (see Figure J-7)
  • Page 25 Choose COUNTERCLOCKWISE for RIGHT HANDED DOOR Choose CLOCKWISE for LEFT HANDED DOOR Figure J-7...

  • Page 26: Setting Up

    (b) Touch the screen with back of your hand to activate the deadbolt.(See Figure L-1) (c) Enter the Smartlife app, it automatically find the lock, or you can click” add the device “to search the deadbolt. Then will see the device with Elemake logo. .(See Figure L-2)
  • Page 27 (d) Click the deadbolt’s logo to connect the deadbolt, Name the deadbolt and save. .(See Figure L-3) Figure L-1 Figure L-2...
  • Page 28 Figure L-3 (e) If successfully connected the Smartlife app with the deadbolt. The opening button on the screen will turn to green colored . User can use the mobile phone to unlock the deadbolt via the Bluetooth. (See Figure L-4) Figure L-4 (3) Step 3--Enroll the fingerprint/password/card for unlocking(See Figure M-1)

  • Page 29: Add Members

    Figure M-1 (4) 4.2 Add member(See Figure N-1) (a) At the home page of the deadbolt, click “add member” (b) Choose member type Family member(administrators)----- the family member with fully authorized, be able to control and use all devices Other member----with the limited authority by the family member(administrator).
  • Page 30 Figure N-1...

  • Page 31: Connect To Wifi

    Figure N-1 4.3 Connect WIFI (Optional) (See Figure O-1, Figure O-2) (a)Elemake Internet Wireless Communication Diagram(See Figure O-1) Tuya Core Wifi Gateway Internet Mobile Phonoe Figure O-1...
  • Page 32 (b) Setup the Tuya Wifi gateway. (optional)(any wifi gateway with Tuya gateway IC) --If user want to use the internet functions. (See Figure O-2) Figure O-2...

  • Page 33: Basic Functions(Local Operation)

    5. HOW TO USE THE DEADBOLT NOTE: For most of the functions, user can follow the steps in the app to easily learn how to use the smart deadbolt with common sense, for specific operation, also can refer to below detailed instructions. 5.1 Basic Functions (1) Password unlocking(See Figure P-1) (a) Touch the screen with the back of your hand or fingers to activate...
  • Page 34 (1) Fingerprint unlocking(See Figure P-2) Put the finger on the fingerprint reader. Deadbolt will be automatically unlocked. Figure P-2 (2) Key unlocking (See Figure P-3) Remove the lid with the suction tool, use the key to unlock. Figure P-3...
  • Page 35 (3) RF card unlocking (See Figure P-1) Put the RF card to the middle of the escutcheon, user can hear the “beep”, then deadbolt will be automatically unlocked. 5.1.6 Bluetooth Remote Unlocking with Mobilephone APP. Turn on the bluetooth of the celluar phone. (4) Temporary Password: Off-line One time temporary password unlocking...
  • Page 36 Off-line reusable temporary password unlocking (5) Temporary power to outside escutcheon(See Figure P-4) If user did not change the battery timely, when battery is drained, user still can temporarely supply the power to the lock with power bank and Type C charging line from the bottom of outside escutcheon. Figure P-3 (6) Lock the door/Relock(See Figure P-5, Figure P-6) a.
  • Page 37 sensor. b. If user want to use the manual locking/relocking, When door is closed, user touch the “lock”, deadbolt will lock. (See Figure P-6) Figure P-6 (7) Battery level monitoring(real time) (See Figure P-7) User can easily read the percentage of the battery level when turn on the Tuya smart APP and enter the lock page.
  • Page 38 (8) Record of deadbolt unlocking history(See Figure P-8) Enter the lock’s page, click the “opening record” at the page bottom, user can see all unlocking records with the family member information. Figure P-8 (9) Choose Languages(See Figure P-9) There are 2 languages options. English Spanish Figure P-9...

  • Page 39: Internet Functions

    5.2 INTERNET FUNCTIONS (1) Separated WIFI design, No Power consumption to battery for WIFI application. (See Figure Q-1) If customer want to use Internet functions, user can purchase the Tuya Wifi gateway from us, separated WIFI bridge (110V wall plug) avoids the high power consumption of the WIFI to use the battery energy, will not consume the battery power in deadbolt.
  • Page 40 If the user already connected the deadbolt to Tuya Wifi gateway, the long distance unlocking function will work where ever you are located as long as there is Internet.. Figure Q-3 (4) Go home alert/door abnormal alert. (See Figure Q-4) Click “smart linkage”...
  • Page 41 Figure Q-5 (6) Smart Home Can be use a with Tuya/SmartHome as a related items which can be a part of the smart home system. (See Figure Q-6) Figure Q-6...

  • Page 42: Trouble Shooting

    Return/replacement Policy If you want to return/replace the goods for any reason, please contact us directly for return/replacement. In this way, EleMake will be able to pay for the returning shipping cost to avoid loss to any customers. What if the product is out of return/replacement window, the warranty has...
  • Page 43 LIMITED WARRANTY LIMITED WARRANTY OF THE LOCK PRODUCTS With seller warrant to the original purchaser only, that the lock products will be free from defects in material or workmanship for a period of two ( 5) years from the date of purchase. 1years for the products, if the tool i s used for professional use.
  • Page 44 There must also be a description of the problem in order to help our repairs department diagnose and fix the issue. Repairs will be made an d the product will be returned and shipped back to the purchaser at no c harge.
  • Page 45 A, AND FROM COUNTRY TO COUNTRY. THIS LIMITED WARRANTY APPLIES ONLY TO PORTABLE ELECTRI C TOOLS, BENCH POWER TOOLS, OUTDOOR POWER EQUIPMEN T, AND PNEUMATIC TOOLS SOLD WITHIN THE UNITED STATES O F AMERICA, AND CANADA. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT US CUSTOMER SUPPORT LINE...
  • Page 46 EleMake Lock Products. Online customer service---- Facebook #:csservice168@163.com Skype #: customerservice@products Email-address: customerservice@elemakelocks.com Customer service center address: 5448 Apex Peakway, 197 Apex, NC 27502 For Customer Service please call: (800)315-9607...
  • Page 48 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
