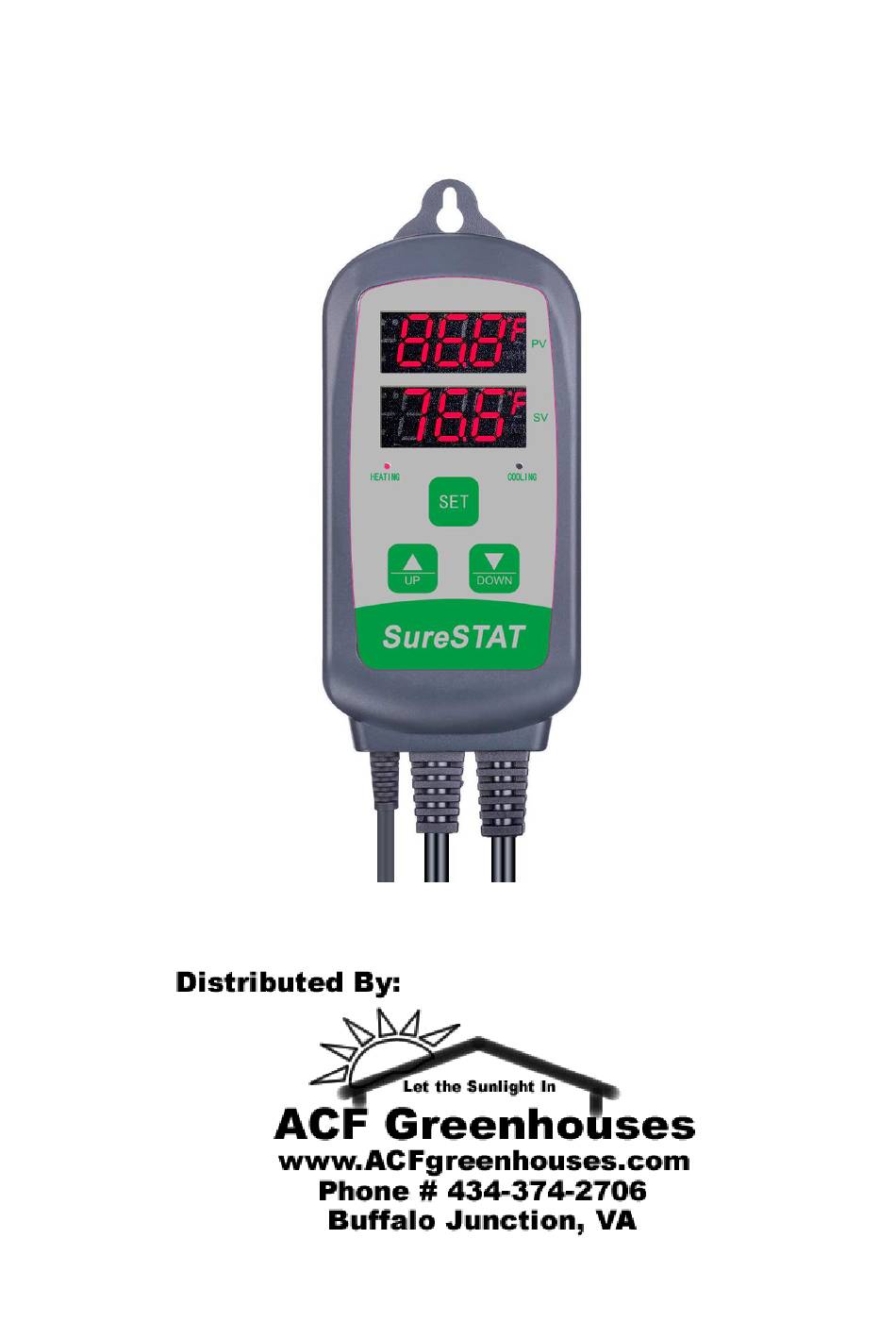

- Page 1 SureStat DT10 Thermostat User Manual Copyright © ACF Greenhouses All rights reserved. No part of this document may be reproduced without prior written permission.
-
Page 2: Table Of Contents
DT10 User Manual Contents 1. Overview ......................3 What BHK-300 can do? ..................3 Key features....................... 3 2. Specification ......................4 3. Key Instruction..................... 5 4. Key Operation Instruction ..................6 4.1 Enquiry Set Point ..................6 4.2 How to Set Parameters .................. 6 4.3 Setup Flow Chart ................... -
Page 3: Overview
Fahrenheit. With its 1800 watt capacity, can handle most any 120 volt appliance. The DT10 is designed with compressor delay protection for refrigeration, high and low temperature alarm and sensor fault alarm. Functions such as temperature calibration, separately set differential for refrigeration and heating, enable more accurate temperature control. -
Page 4: Specification
DT10 User Manual 2. Specification Temperature Control Range -50~99 °C / -50~210 ° F Temperature Resolution 0.1 ° C / 0.1° F Temperature Accuracy ±1°C (-50 ~ 70°C) / ±1°F (-50 ~ 160° F) Temperature Control Mode On/Off Control, Heating and Cooling... -
Page 5: Key Instruction
DT10 User Manual 3. Keys Instruction 1. PV: Process Value. under running mode, display current measured temperature; under setting mode, display menu code. 2. SV: Setting Value. under running mode, display setting temperature; under setting mode, display setting value. 3. Cooling indicator: when the light is on, start refrigeration; when the light is flickering, the compressor is under delay protection. -
Page 6: Key Operation Instruction
DT10 User Manual 4. Key Operation Instructions 4.1 Enquiry Set Point When the controller is working, short press the “UP” key for one time, heating differential (HD) will be displayed; short press the “ DOWN ” key for one time, then the cooling differential (CD) will be displayed. -
Page 7: Menu Instruction
DT10 User Manual 5. Menu Instruction When the temperature is displayed in Centigrade Menu code Function Setting range Default setting Remarks -50～99.9℃ Temperature Set Value 25℃ 0.3～15℃ Heating Differential Value 2.0℃ 0.3～15℃ Cooling Differential Value 2.0℃ -50～99.9℃ Alarm High Limit 90℃... -
Page 8: Temperature Control Range Setting (Ts, Hd, Cd)
DT10 User Manual 5.1 Temperature Control Range Setting (TS, HD, CD) When the controller is working normally, the LED displays current measured temperature (PV), and will automatically identify and switch between refrigeration and heating working modes. When the measured temperature PV ≥ TS (temperature you set) + CD (cooling differential value), system enters refrigeration status, the cool indicator will be on, and refrigeration relay starts to work;... -
Page 9: Temperature Calibration (Ca)
DT10 User Manual 5.4 Temperature Calibration (CA) If there is deviation between measured temperature and actual temperature, use temperature calibration function to align the measured temperature and actual temperature. 5.5 Display in Fahrenheit or Centigrade unit (CF) Customers can set the temperature display in Fahrenheit or Centigrade according to their own habit.
