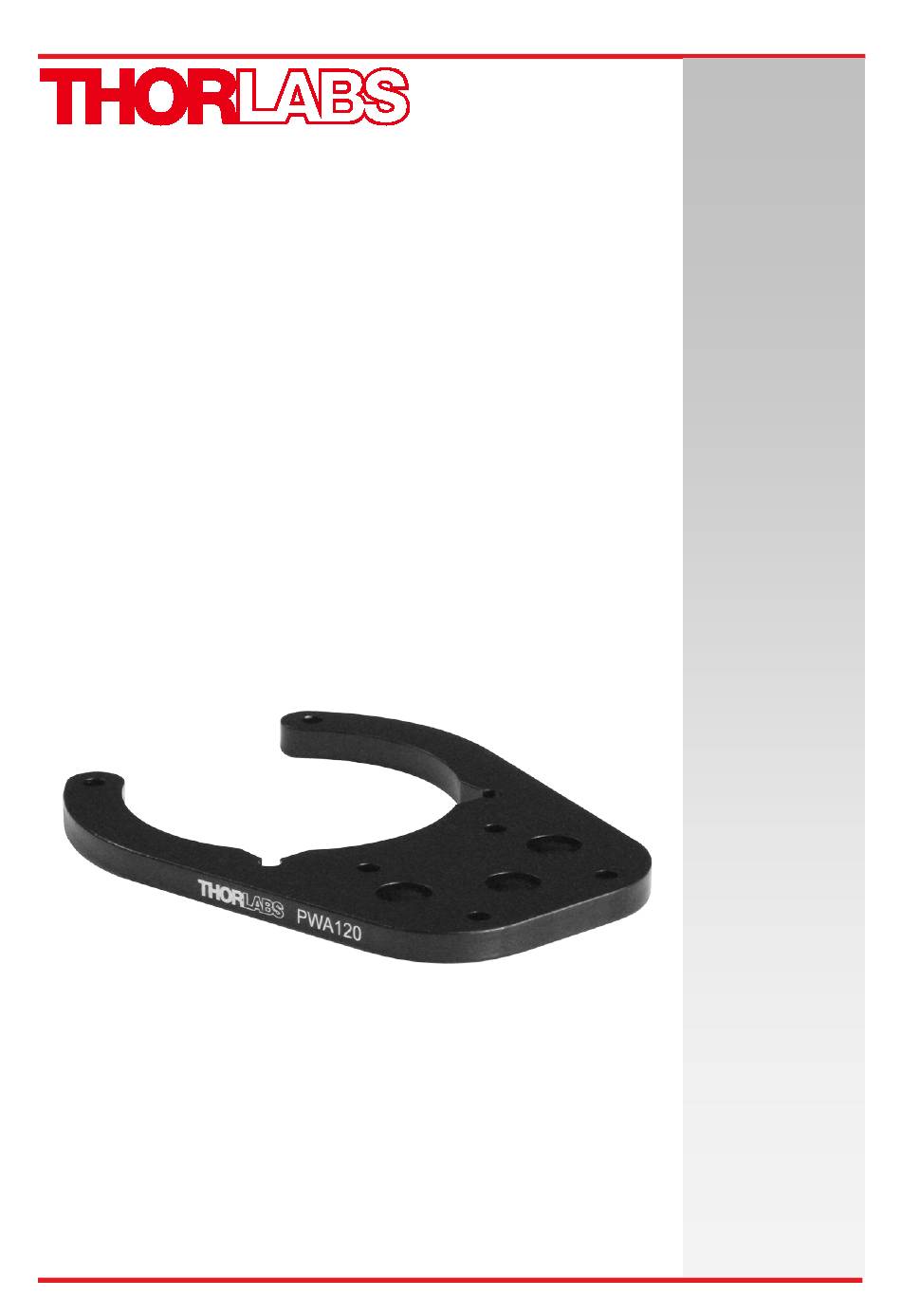

- Page 1 PWA120 Ø1.5" Accessory Adapter for Breadboard Frames Installation Manual Original Instructions HA0415T...
-
Page 2: Table Of Contents
2.4. Fitting to a PFH Series Heavy Duty Passive Mount Frame ........5 2.5. Installing a 1.5” Post ....................6 2.6. Installing Two 1.5” Posts and a Shelf ..............7 2.7. Installing Other Accessories ..................8 Thorlabs Worldwide Contacts ..................9 Chapter 3 HA0415T... -
Page 3: Chapter 1 Safety
PWA120 Adapter Plate for 1.5” Post Accessories Chapter 1: Safety Chapter 1 Safety For the continuing safety of the operators of this equipment, and the protection of the equipment itself, the operator should take note of the Warnings, Cautions and Notes throughout this handbook and, where visible, on the product itself. -
Page 4: Chapter 2 Installation
M5 Stubby Ball End Hex Wrench 2.1.1. Load Capacity Once installed, each PWA120 adapter plate can accommodate up to 40 kg (88 lbs) of vertical load. Warning Do not exceed the 40 kg (88 lbs) maximum vertical load capacity for each adapter plate. -
Page 5: Fitting To A Pfr Series Rigid Mount Frame
PWA120 Adapter Plate for 1.5” Post Accessories Chapter 2: Installation 2.2. Fitting to a PFR Series Rigid Mount Frame Slide the adapter into place over the mount. Align the four outer holes on frame top plate with the holes in the adapter plate. The adapter plate can be rotated 90 degrees if a different orientation is required. -
Page 6: Fitting To A Pfp Series Standard Passive Mount Frame
PWA120 Adapter Plate for 1.5” Post Accessories Chapter 2: Installation 2.3. Fitting to a PFP Series Standard Passive Mount Frame Slide the adapter into place over the body of the passive mount. Align the four outer holes on frame top plate with the holes in the adapter plate. The adapter plate can be rotated 90 degrees if a different orientation is required. -
Page 7: Fitting To A Pfh Series Heavy Duty Passive Mount Frame
PWA120 Adapter Plate for 1.5” Post Accessories Chapter 2: Installation 2.4. Fitting to a PFH Series Heavy Duty Passive Mount Frame Remove and discard the screws from the passive mount, but leave the mount in place. Slide the adapter into place over the body of the passive mount. -
Page 8: Installing A 1.5" Post
PWA120 Adapter Plate for 1.5” Post Accessories Chapter 2: Installation 2.5. Installing a 1.5” Post If fitted, remove and discard the long M16 bolt from the base of the 1.5” post but retain the washers. Align the post with one of the three post holes on the adapter plate (central hole recommended). -
Page 9: Installing Two 1.5" Posts And A Shelf
PWA120 Adapter Plate for 1.5” Post Accessories Chapter 2: Installation 2.6. Installing Two 1.5” Posts and a Shelf Breadboard frames with a length or width of 900 mm or 1200 mm are compatible with the overhead shelves (PSY221, PSY223, PSY222 and PSY224). This configuration requires 2 posts and 2 adapters. -
Page 10: Installing Other Accessories
PWA120 Adapter Plate for 1.5” Post Accessories Chapter 2: Installation 2.7. Installing Other Accessories Caution: To avoid a risk of tipping the frame… Do not push/pull laterally on the posts as this may cause the table frame to tip over. -
Page 11: Chapter 3 Thorlabs Worldwide Contacts
Contact Thorlabs for more information. Waste treatment is your own responsibility. “End of life” units must be returned to Thorlabs or handed to a company specializing in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. - Page 12 www.thorlabs.com...
