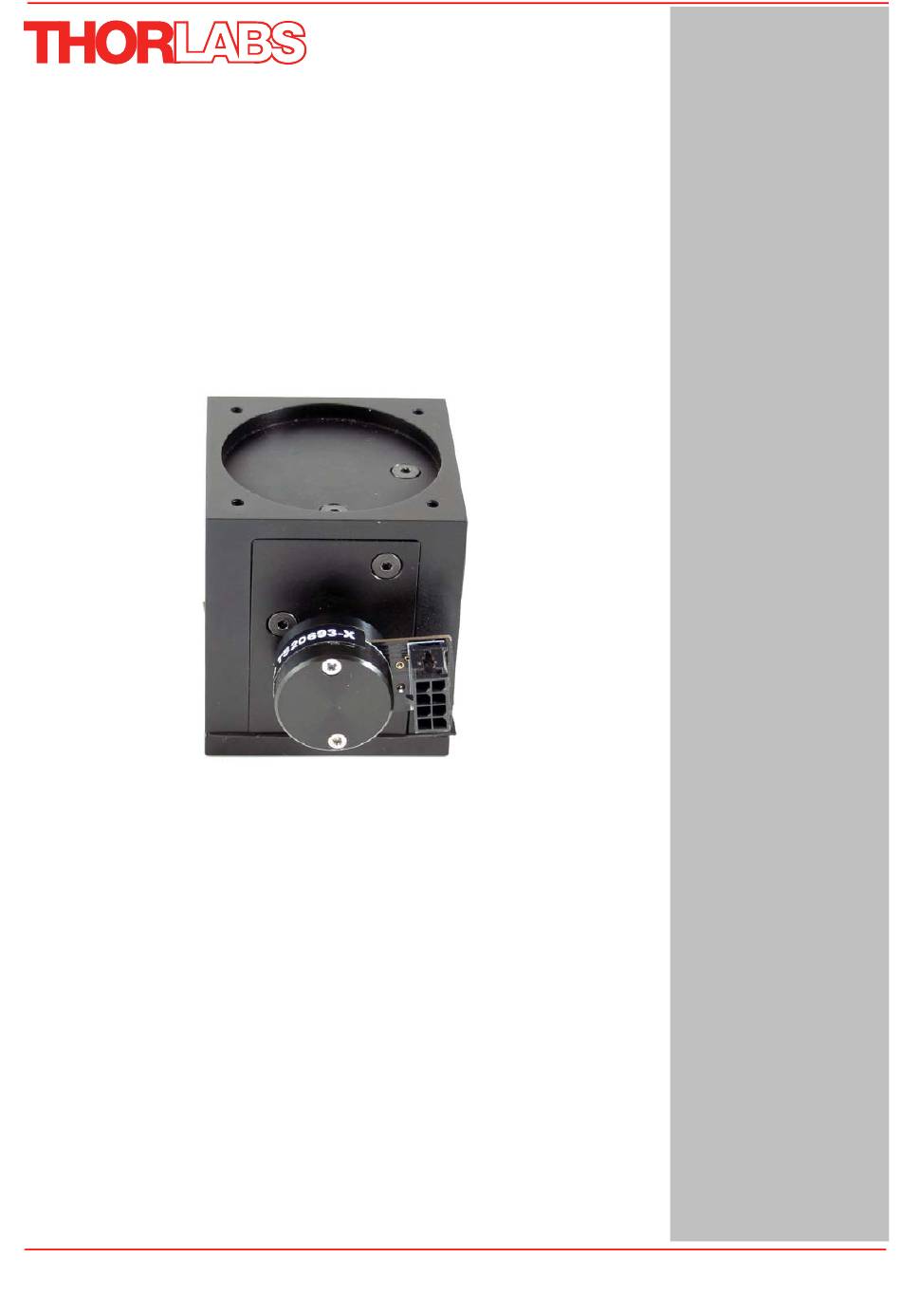

- Page 1 GCM001 Galvo Cage System Adapter Original Instructions HA0212T...
- Page 2 GCM001 Galvo Cage System Adapter Contents Chaper 1 Safety ............................1 1.1 Safety Information ......................1 Chaper 2 Installation ..........................2 Chaper 3 Thorlabs Worldwide Contacts ....................5 Page 0 19830-D02...
-
Page 3: Chapter 1 Safety
Chapter 1 Safety Chapter 1 Safety 1.1 Safety Information For the continuing safety of the operators of this equipment, and the protection of the equipment itself, the operator should take note of the Warnings, Cautions and Notes throughout this handbook and, where visible, on the product itself. The following safety symbols may be used throughout the handbook and on the equipment itself. -
Page 4: Chapter 2 Installation
GCM001 Galvo Cage System Adapter Chapter 2 Installation 1) Unpack the cage system adapter and check that all the parts are present. Adapter body with motor clamps fitted Screws Qty 4 Base/cover plate Rubber Gasket Fig. 2.1 Cage System Adapter - Unpacked 2) Loosen the pinch bolts on the existing mount, and remove the motor/mirror assembly, taking care not to touch the mirror surface. - Page 5 Chapter 2 Installation 5) Push the motor into the clamp until the center of the mirror is aligned with the center of the hole in the remaining clamp when viewed from above. Fig. 2.4 Aligning the X-axis Motor 6) Repeat items (4) and (5) for the Y-axis motor. Push the motor into the clamp until the center of the mirror is aligned with the center of the laser exit hole and the X-axis mirror as shown below.
- Page 6 GCM001 Galvo Cage System Adapter 8) Lay the rubber gasket on the open face, then fit the base cover plate. Fig. 2.7 Fitting the Gasket 9) The system is now ready to be mounted into a cage system. Page 4...
-
Page 7: Chapter 3 Thorlabs Worldwide Contacts
Contact Thorlabs for more information. Waste treatment is your own responsibility. "End of life" units must be returned to Thorlabs or handed to a company specializing in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. - Page 8 www.thorlabs.com...
