Raycon The Work Speaker RBS980 Manual

INTRODUCTION

Before using your product, we strongly encourage you to fully read through this user guide. You can also visit our support center at www.rayconglobal.com/support. This web page has more specific guidelines and helpful videos for you to navigate your product. For best performance, charge fully before first use.

Pairing ID: The Work Speaker

UNIT AT A GLANCE

1. Power On/Off/Play/Pause
2. Audio Source Switch
3. Volume Down/Previous
4. Answer/End Call/Sound Profiles
5. Volume Up/Next
6. Mute
7. AUX Out Port/Reset Button
8. Charging Port

FEATURES AT A GLANCE

FOUR OMNIDIRECTIONAL MICS
A great idea can come from anywhere in the room, that's why the Work Speaker features an omnidirectional mic setup.

SMART VOICE ENHANCEMENT
Nothing derails a conversation like "excuse me, can you repeat that?" So we designed the Work Speaker with Smart Voice Enhancement.

VOICE DIRECTION INDICATOR
The Work Speaker has a Voice Direction Indicator, so you know exactly where everyone is coming from.

CONVENIENT CONTROLS WITH MUTE BUTTON
The Work Speaker works hard and works smart with convenient controls and a mute button.

THREE SOUND PROFILES
Control what you hear with Three Unique Sound Profiles.

8 HOURS OF PLAYTIME
With 8 hours of playtime, the Work Speaker is with you until the job is done.

CHARGING YOUR DEVICE

1. Use a standard 5V/1-3A charger, PC or power bank to charge this device.

2. While charging, the blue LED indicator will stay on. After fully charging, the LED indicator will turn off. Charge time should be 2 hours.


QUICK START GUIDE

1. Hold " " for about 3 seconds to power on. The Speaker will enter pairing mode automatically.

2. From the source device, go to Bluetooth settings and ensure Bluetooth is on. Search for "The Work Speaker" and select it to pair.

3. Enjoy your Raycon Work Speaker!

FUNCTIONS

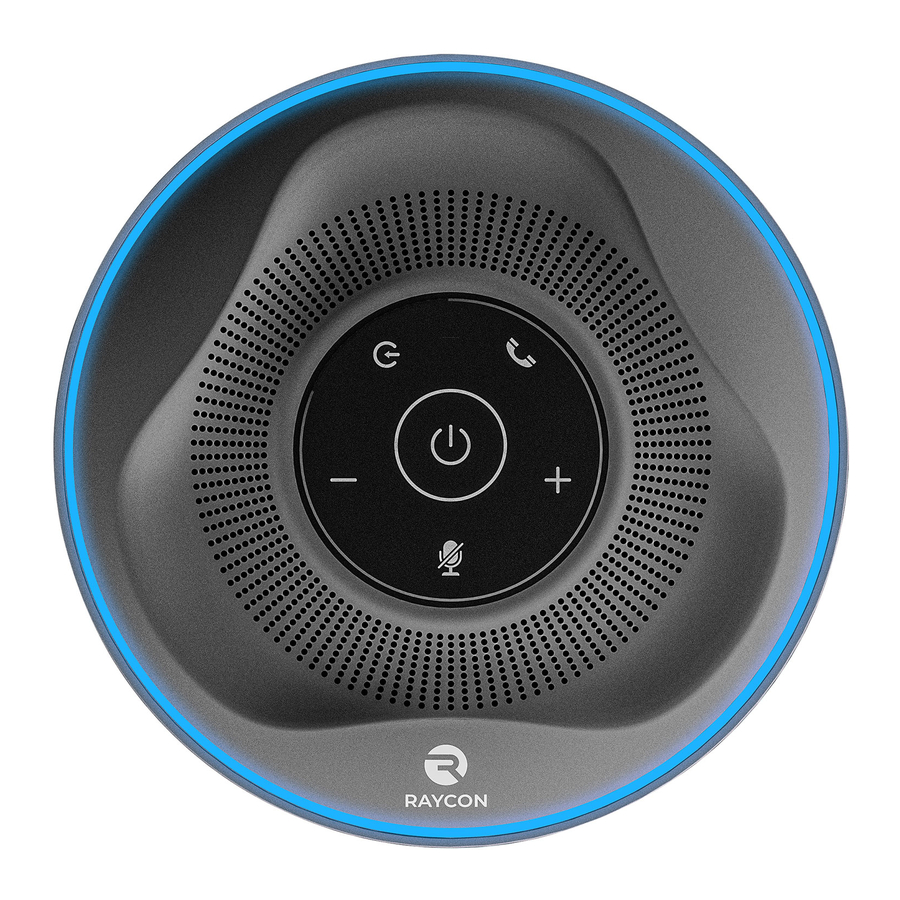

CONTROL PANEL TOP VIEW

MEDIA PLAYER CONTROL

		Volume Up	Press
		Next	Hold for 1.5 Sec
		Volume Down	Press
		Previous	Hold for 1.5 Sec

PHONE CALL CONTROL

		Answer/End Call	Press
		Reject Call	Hold for 1.5 Sec
		Redial	Press 2 Times
		Mute/Unmute Microphone	Press
		Toggle between Audio Inputs	Press
		Disconnect Paired Devices	Hold for 1.5 Sec

LED LIGHTS

Hold " " and " " for 2 seconds to turn off/on the LED lights.

LED ON

LED OFF

AUX-OUT MODE

Connect your Work Speaker to an external speaker with AUX Mode. The speaker will automatically switch to AUX Mode when a compatible device is connected using the audio cable.

While speaker is in AUX Mode, the speaker will be muted automatically, and all sound will go through the connected external speaker. Disconnect audio cable to exit AUX Mode.

USB MODE

1. Using the supplied USB Cable, connect the speaker to your PC.

2. The speaker will switch to USB Mode automatically. If not, press " " to toggle to USB Mode.

3. When connected successfully, the LED light will be blue. Enjoy your Raycon Work Speaker with USB Mode!

4. If no sound is coming from the speaker, go to your computer's audio settings and ensure "The Work Speaker" is selected as the input and output device.


SOUND PROFILES

Your sound, your way! As our sound profiles were crafted by artists and producers at the top of the industry, you're in good hands.

RESET FUNCTION

If the speaker does not turn off or respond, the speaker can be reset by inserting a small round pin into the Aux Port to press the button inside. Please be gentle when inserting pin.

SAFETY GUIDELINES

• Be wary of any edges, uneven surfaces, and metal parts, including on accessories and product packaging, to prevent any possible injury or damage.
• Listen to music at a proper volume to avoid damaging your hearing and speaker.
• Do not store in high temperatures, such as in a hot vehicle or in direct sunlight.
• Store in cool and dry area.
• Do not drop or cause undue impact to the speaker.
• Do not modify, repair, or dismantle the product on your own.
• Do not expose speaker and any of its supplied parts to liquid such as rain for prolonged periods of time. Please see IPX-Rating for more guidelines.
• Do not expose the speaker to water while charging, as doing so may result in damage to the speaker or the power source.
• When cleaning this speaker, use a soft dry cloth. For more severe stains, dampen the cloth with water only. Anything else increases the chance of dissolving the paint or damaging the plastic.

FAQ & ADDITIONAL RESOURCES

Visit: www.rayconglobal.com/support.

SUPPORT

If your device is not functioning correctly, please visit www.rayconglobal.com/support for customer support, and we will be more than happy to help you.

LIMITED WARRANTY

Visit: www.rayconglobal.com/warranty.

SPECIFICATIONS

• Model Number: RBS980
• RDID: D980-21E-Q321
• Bluetooth Version: V5.0
• Speaker Size: 3.5 inch x 2
• Power Output: 3W, 4Ω
• Bluetooth Pairing Name: The Work Speaker
• Battery Capacity: 3.7V, 2600mAh
• Play time: 8 Hours
• Frequency Response: 80Hz-12kHz
• Dimension: 390 x 137 x 175mm
• Bluetooth Range: Up to 10 Meters

FCC WARNING

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure statement. The device can be used in portable exposure condition without restriction.

IC Caution:

Radio Standards Specification RSS-Gen, issue 5

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

FCC ID: 2AZOV-RBS980
IC: 27185-RBS980
