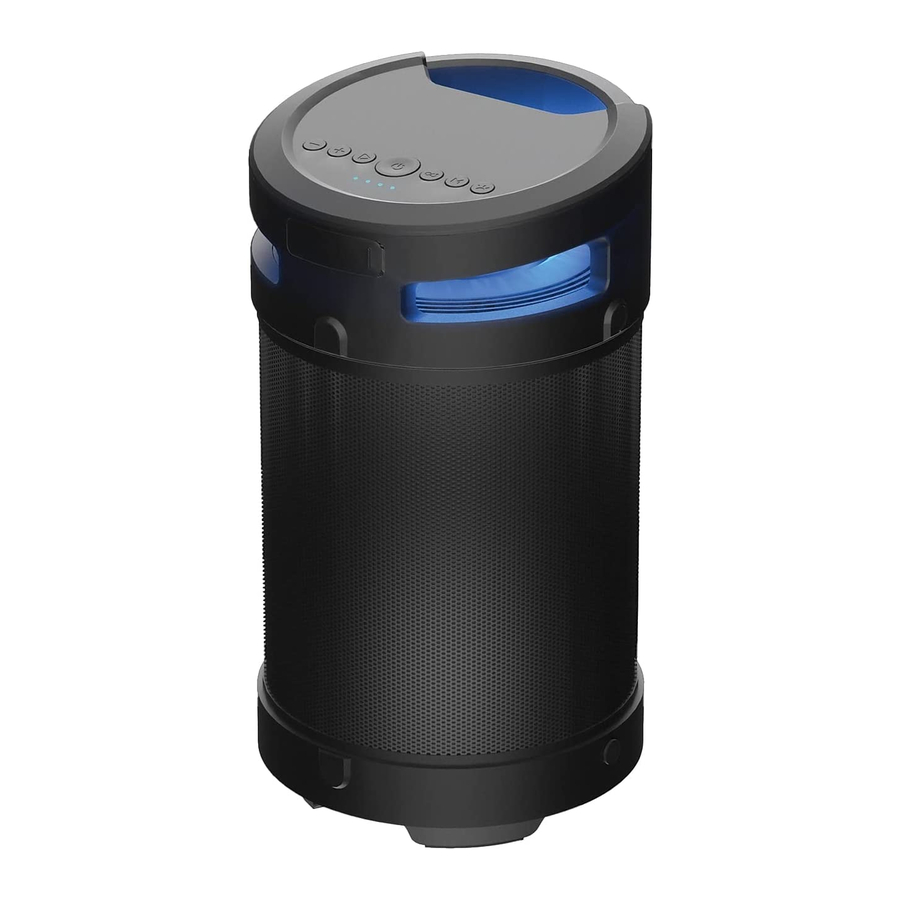

Raycon The Power Speaker RBS950 Manual

INTRODUCTION

Before using your product, we strongly encourage you to fully read through this user guide. You can also visit our support center at www.rayconglobal.com/support.

This web page has more specific guidelines and helpful videos for you to navigate your product.

For best performance, charge fully before first use.

Pairing ID: The Power Speaker

UNIT AT A GLANCE

1. Previous Song / Volume Down
2. Next Song / Volume Up
3. Play / Pause
4. Power On / Off
5. Multi-link
6. Mode
7. Light Control / Sound Profiles
8. Wired Mic Port
9. Charging Port
10. AUX In
11. USB Port

PACKAGE CONTENTS

• 1 x Raycon Power Speaker
• 1 x Charging Cable
• 1 x Audio Cable
• 1 x User Manual

FEATURES AT A GLANCE

360° OMNI-DIRECTIONAL AUDIO

With 360 degree sound you're completely surrounded by your soundtrack.

IPX5 WATER RESISTANCE

The Power Speaker goes hard and stays solid. With IPX5 Water Resistance it's as durable as it is incredible.

MULTI-LINK MODE

Multi-link mode gives you the ability to link multiple speakers together via Bluetooth to create soundscapes that fill your space.

THREE SOUND PROFILES

The Power Speaker enables you to select from 3 distinct sound profiles that match your mood or create a new one.

6 HRS OF WIRELESS PLAY TIME

The Power Speaker runs loud for 6 hours. That's 360 incredible minutes of crystal clear sound that moves you.

FOUR AUDIO MODES (FM, USB, AUX, BLUETOOTH)

Listen your way with four audio modes including FM, USB, AUX, Bluetooth. No matter the source the Power Speaker has got you covered.

WIRED MIC PORT

With the Power Speaker, you're not just listening to mind-blowing sound, you're creating it. Spit bars, let your voice be heard or belt it out a tune by plugging your wired mic right in.

CHARGING YOUR DEVICE

1. Use a standard 5V/1-2A charger or a PC to charge this device. Do NOT use a power bank.

2. Charge time should be 5-8 hours. While charging, the 4 LEDs will blink in sequence.

3. After fully charging, all 4 LED lights will stay on.


NOTE: Adjust volume to medium level when charging to avoid chance of high current passage through speaker.

QUICK START GUIDE

1. Hold " " for about 3 seconds to power on. Speaker will enter pairing mode automatically.

2. From the source device, go to Bluetooth settings and ensure Bluetooth is on. Search for "The Power Speaker" and select it to pair.

3. Enjoy your Raycon Power Speaker!

FUNCTIONS

CONTROL PANEL TOP VIEW

Previous Song - Hold 1.5 seconds	Next Song - Hold 1.5 seconds	Play/Pause - Press
Volume Down - Press	Volume Up - Press

MULTI-LINK MODE

Pair two Power Speakers together with Multi-link Mode.

1. Power on both speakers and ensure they are not connected to any Bluetooth device.

2. On one speaker, press " " to begin pairing. A voice prompt will be audible once speakers are successfully paired.

3. From the source device, go to Bluetooth settings and ensure Bluetooth is on. Search for "The Power Speaker" and select it to pair.

4. Enjoy your Raycon Power Speakers with Multi-link Mode! Press "" to unpair speakers.


Note: Once two Raycon Power Speakers have been paired once using Multi-link Mode, they will automatically pair every time they are turned on within range of each other unless they are unpaired using step 4.

PLAYING MUSIC FROM USB DRIVE

You can also play music using a USB Drive. Note that if your Raycon Power Speaker is in Bluetooth Mode, inserting a USB Drive will automatically disconnect Bluetooth, and switch the speaker to USB Mode. To return to Bluetooth Mode, press " " until Bluetooth Mode is selected.

1. Hold " " for about 3 seconds to power on.

2. Insert a USB Drive into USB port. The speaker will play the stored music automatically.


AUX-IN MODE

To enjoy music from your MP3/MP4 player or other compatible device, use the supplied audio cable to connect from Line Out port on the device to the Aux In port on your Raycon Power Speaker.

The speaker will automatically switch to AUX Mode when a compatible device is connected using the audio cable.

While speaker is in AUX Mode, all media functions are controlled from the connected device.

FM RADIO MODE

1. Hold " " for about 3 seconds to power on.

2. Press " " until FM Mode is selected.

3. Hold " " for about 1.5 seconds to scan for FM channels

4. Hold " / " for about 1.5 seconds to toggle between stored channels.


SOUND PROFILES

Listen the way you want! Hold " " for 1.5 seconds to toggles between sound profiles.

MICROPHONE

You can connect your wired mic (not included) directly to your Power Speaker. Ensure the speaker is powered on, plug your microphone into the 1/4" Wired Mic Port, and enjoy.

• Do not use or store this in extreme temperatures.
• Store in cool and dry area and keep away from anything that generates heat, such as radiators, stoves, etc.
• Listen to music at a proper volume to avoid damaging your hearing and speaker.
• When cleaning this speaker, use a soft dry cloth. For more severe stains, dampen the cloth with water only. Anything else increases the chance of dissolving the paint or damaging the plastic.

FAQ & ADDITIONAL RESOURCES

Visit: www.rayconglobal.com/support. Select your product to find additional resources on how to operate your product, including helpful tips and videos.

SUPPORT

If your device is not functioning correctly, please visit www.rayconglobal.com/support for customer support, and we will be more than happy to help.

LIMITED WARRANTY

For more information and instructions on how to get warranty service, visit www.rayconglobal.com/warranty.

SPECIFICATIONS

• Model: RBS950
• Pairing Name: The Power Speaker
• RDID: D950-21E-Q321
• Bluetooth Version: V4.2+BR
• Charging Time: about 5 Hours
• Support Profile: A2DP/AVRCP
• Speaker Size: 2.5 inch x 4 + 5.25 inch
• Speaker Power: 74W
• Battery Capacity: 4400mAh
• Play time: about 6 Hours
• Frequency Response: 80Hz-15kHz
• Product size: 215(L) x 215(W) x 387 (H) mm
• Bluetooth Operating Range: ≤ 10m

FCC WARNING

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure statement. The device can be used in portable exposure condition without restriction

IC Caution:

Radio Standards Specification RSS-Gen, issue 5

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

RF exposure statement:

The equipment complies with IC Radiation exposure limit set forth for uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

FCC ID: 2AZOV-RBS950
IC: 27185-RBS950
