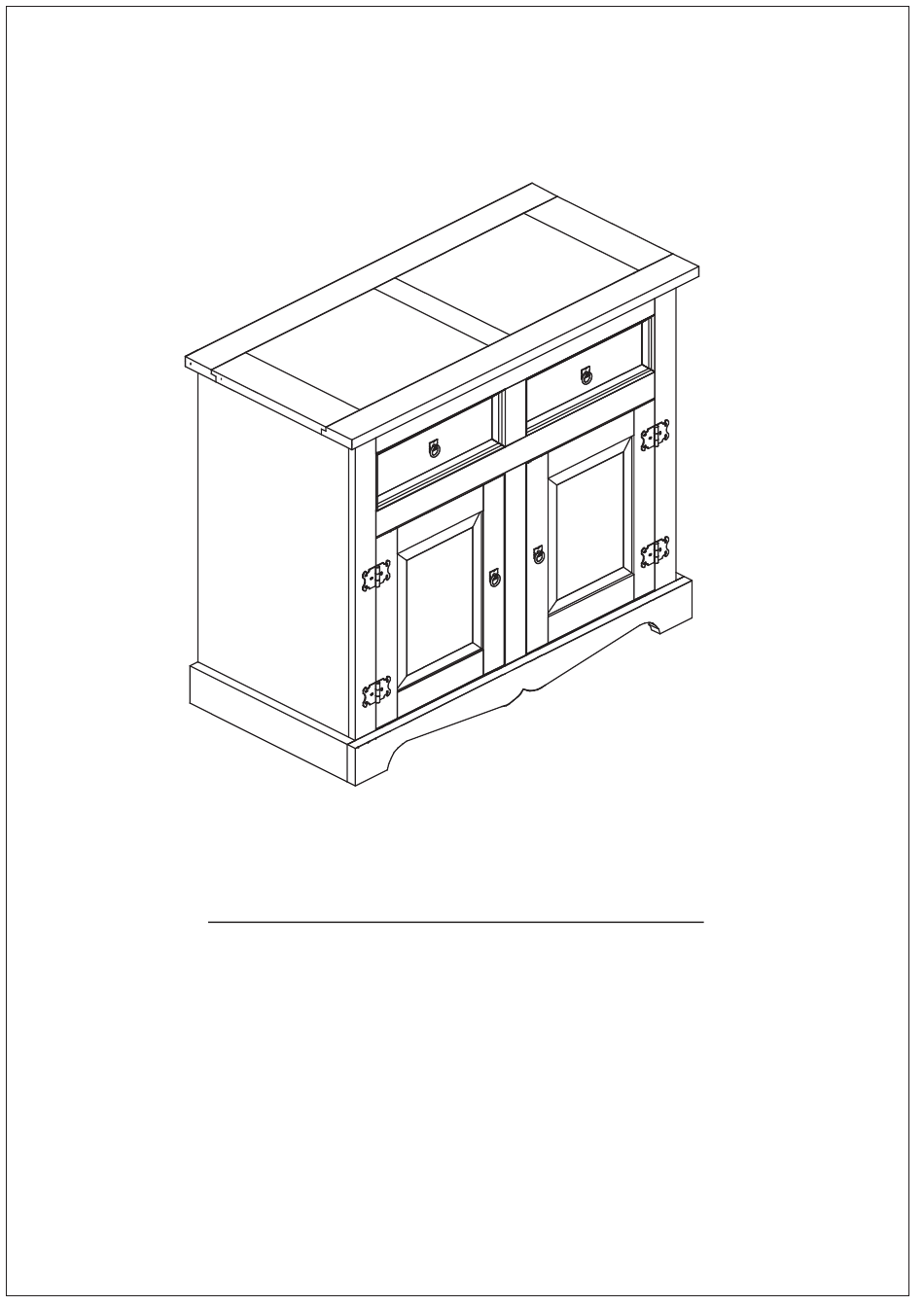

PAGE 1 - MODEL # 6252SF-AB-KD-U
ASSEMBLY INSTRUCTIONS
BUFFET 2 DOORS + 2 DRAWERS
MODEL # 6252-SF-AB-KD-U
WE ARE HERE TO HELP!
LINON HOME DECOR PRODUCTS, INC.
TOLL FREE NUMBER 1.800.262.1852
TEL: (516) 699-1000
FAX: (516) 699-1001
e-mail: customersupport@linon.com
WE TRY TO INSURE THAT YOUR FURNITURE ARRIVES IN EXCELLENT CONDITIONS.OUR
SERVICE REPRESENTATIVES ARE READY TO HELP YOU WITH QUICK SERVICE.PLEASE
CALL IF A PART IS DAMAGED OR MISSING. PLEASE CALL PRIOR TO RETURNING THE
ITEM TO THE STORE. OUR OFFICE IS OPEM 9 AM TO 5 PM EASTERN STANDARD TIME.
IMPORTANT:
PLEASE READ ALL INSTRUCTIONS IN THIS BOOKLET BEFORE STARTING ASSEMBLY.
MADE IN BRAZIL
FOR LINON HOME DECOR PRODUCTS, INC.
BY RS3/114
05/03
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Linon 6252SF-AB-KD-U
Summary of Contents for Linon 6252SF-AB-KD-U
- Page 1 PAGE 1 - MODEL # 6252SF-AB-KD-U ASSEMBLY INSTRUCTIONS BUFFET 2 DOORS + 2 DRAWERS MODEL # 6252-SF-AB-KD-U WE ARE HERE TO HELP! LINON HOME DECOR PRODUCTS, INC. TOLL FREE NUMBER 1.800.262.1852 TEL: (516) 699-1000 FAX: (516) 699-1001 e-mail: customersupport@linon.com WE TRY TO INSURE THAT YOUR FURNITURE ARRIVES IN EXCELLENT CONDITIONS.OUR SERVICE REPRESENTATIVES ARE READY TO HELP YOU WITH QUICK SERVICE.PLEASE...
-
Page 2: Hardware Identification
PAGE 2 HARDWARE PACKAGE COUNT. OPEN HARDWARE PACKAGE ON A FLAT SURFACE COVERED WITH NEWSPAPER. COUNT EACH PIECE OF HARDWARE TO MATCH THE QUANTITY NUMBER IN THE HARDWARE LIST COLUMN. CALL CUSTOMER SERVICE IF ANY PARTS ARE MISSING. FOLLOW THE LETTER IDENTIFICATION WHEN READING THE ASSEMBLY DRAWING “A”... -
Page 3: Parts Identification
PAGE 3 PARTS IDENTIFICATION 1. RIGHT SIDE PANEL 2. LEFT SIDE PANEL 3. RIGHT FRONT RAIL 4. LEFT FRONT RAIL 5. UPPER RAIL 6. CENTRAL RAIL 7. UPPPER DIVISION 8. LOWER RAIL 9. LOWER DIVISION 10. BASE PANEL 11. ADJUSTABLE SHELF 12. - Page 4 PAGE 4 STEP 1) 1.1 INSERT (12) WOODEN DOWELS (A) TO RIGHT SIDE PANEL #1, LEFT SIDE PANEL #2 AND BASE PANEL #10 USING THE PRE-DRILLED HOLES AS A GUIDE, AS SHOWN ON FIGURE 1. 1.2 FIX (2) “L” METAL BRACKETS (G) TO RIGHT SIDE PANEL #1 AND LEFT SIDE PANEL #2 USING (2) SCREWS (E), A PHILLIPS HEAD SCREWDRIVER (NOT PROVIDED) AND THE PRE-DRILLED HOLES AS GUIDE, AS SHOWN ON FIGURE 1.
- Page 5 PAGE 5 STEP 3) 3.1 FIX (4) HINGES (J) TO DOOR #15 (2x) USING (12) SCREWS (E), A PHILLIPS HEAD SCREWDRIVER ( NOT PROVIDED) AND THE PRE-DRILLED HOLES AS A GUIDE, AS SHOWN ON FIGURE 3 AND DETAIL. 3.2 FIX (2) KNOBS (K) TO DOOR #15 (2x) USING (2) WASHERS (M), (2) SCREWS (L), A SPANNER KEY (NOT PROVIDED) AND THE PRE-DRILLED HOLES AS GUIDE, AS SHOWN ON FIGURE 3.
- Page 6 PAGE 6 STEP 5) 5.1 JOIN CENTRAL RAIL #6, UPPER DIVISION #7, LOWER DIVISION #9, UPPER RAIL #5 AND LOWER RAIL #8, USING THE PRE-INSERTED WOODEN DOWELS AND THE PRE-DRILLED HOLES AS A GUIDE, AS SHOWN ON FIGURE 5. 5.2 NOW, ATTACH RIGHT FRONT RAIL #3 AND LEFT FRONT RAIL #4 TO JOINED PIECES #5, #6, #7, #8 AND #9, USING THE WOODEN DOWELS ALREADY INSERTED AND THE PRE-DRILLED HOLES AS GUIDE, AS SHOWN ON FIGURE 5.
- Page 7 PAGE 7 STEP 7) 7.1 FIX THE ASSEMBLED FRONT FRAME TO RIGHT SIDE PANEL #1, LEFT SIDE PANEL #2 AND BASE PANEL #10, USING (03) SCREWS (B), (02) SCREWS (E), A PHILLIPS HEAD SCREWDRIVER (NOT PROVIDED), THE WOODEN DOWELS ALREADY INSERTED, THE “L” METAL BRACKETS ALREADY FIXED TO SIDE PANELS #1 AND #2 AND THE PRE-DRILLED HOLES AS GUIDE, AS SHOWN ON FIGURE 7.
- Page 8 PAGE 8 STEP 9 9.1 ATTACH BACK RAIL #14 TO BASE PANEL #10, USING THE WOODEN DOWELS ALREADY INSERTED AND THE PRE-DRILLED HOLES AS GUIDE, AS SHOWN ON DRAWING. 9.2 ATTACH MIDDLE SLIDING GUIDE #12 TO UPPER DIVISION #7 AND BACK RAIL #14, USING THE WOODEN DOWELS ALREADY INSERTED AND THE PRE-DRILLED HOLES AS GUIDE.AFTER THAT FIX IT USING (02) SCREWS (C), A PHILLIPS HEAD SCREWDRIVER (NOT PROVIDED) AND THE PRE-DRILLED HOLES AS GUIDE, AS SHOWN ON FIGURE 9.
- Page 9 PAGE 9 STEP 11) 11.1 INSERT (4) WOODEN DOWELS (A) INTO THE HOLES LOCATED AT INNER PART OF SIDE PANELS #1 AND #2. NOTE: YOU HAVE THREE HEIGH OPTIONS TO POSITION THE ADJUSTABLE SHELF #11. PLEASE CHOOSE THE DESIRE ONE AND INSERT THERE THE WOODEN DOWELS (A). 11.2 INSERT ADJUSTABLE SHELF #11 PLACING IT ON THE PRE-INSERTED WOODEN DOWELS.
- Page 10 PAGE 10 STEP 13) 13.1 FIX BACK PANEL #23 (2x) TO PRE-ASSEMBLED UNIT, USING (20) NAILS (F) AND A HAMMER (NOT PROVIDED), AS SHOWN ON FIGURE 13. ATTENTION: YOU MUST INSTALL ALL NAILS SUPPLIED, IN ORDER TO ENSURE THE STABILITY AND STRENGHT OF THE UNIT. FIGURE 13 STEP 14) 14.1 FIX DOORS #15 TO THE ASSEMBLED UNIT USING (12) SCREWS (E), A PHILLIPS HEAD SCREWDRIVER (NOT...
- Page 11 PAGE 11 STEP 15) 15.1 FIX (2) KNOBS (K) TO DRAWER FRONT PANEL #19 (2x), USING (2) WASHERS (M), (2) SCREWS (L), A SPANNER KEY (NOT PROVIDED) AND THE PRE-DRILLED HOLES AS GUIDE, AS SHOWN ON FIGURE 15. 15.2 FIX DRAWER SIDE PANEL #20 (4x) TO DRAWER FRONT PANEL #19 (2x), USING (08) SCREWS (D), A PHILLIPS HEAD SCREWDRIVER (NOT PROVIDED) AND THE PRE-DRILLED HOLES AS GUIDE, AS SHOWN ON FIGURE 15.
