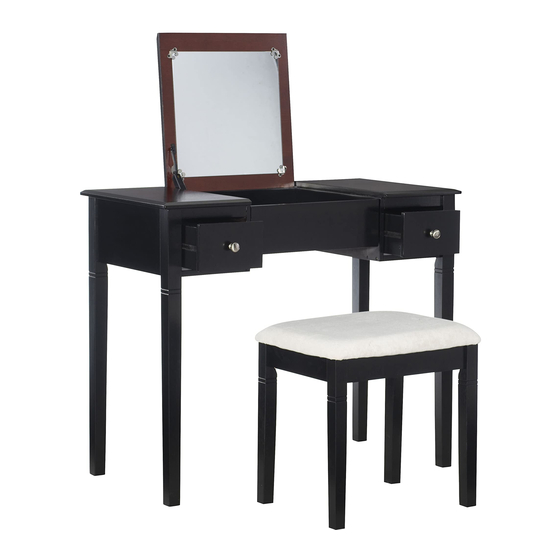

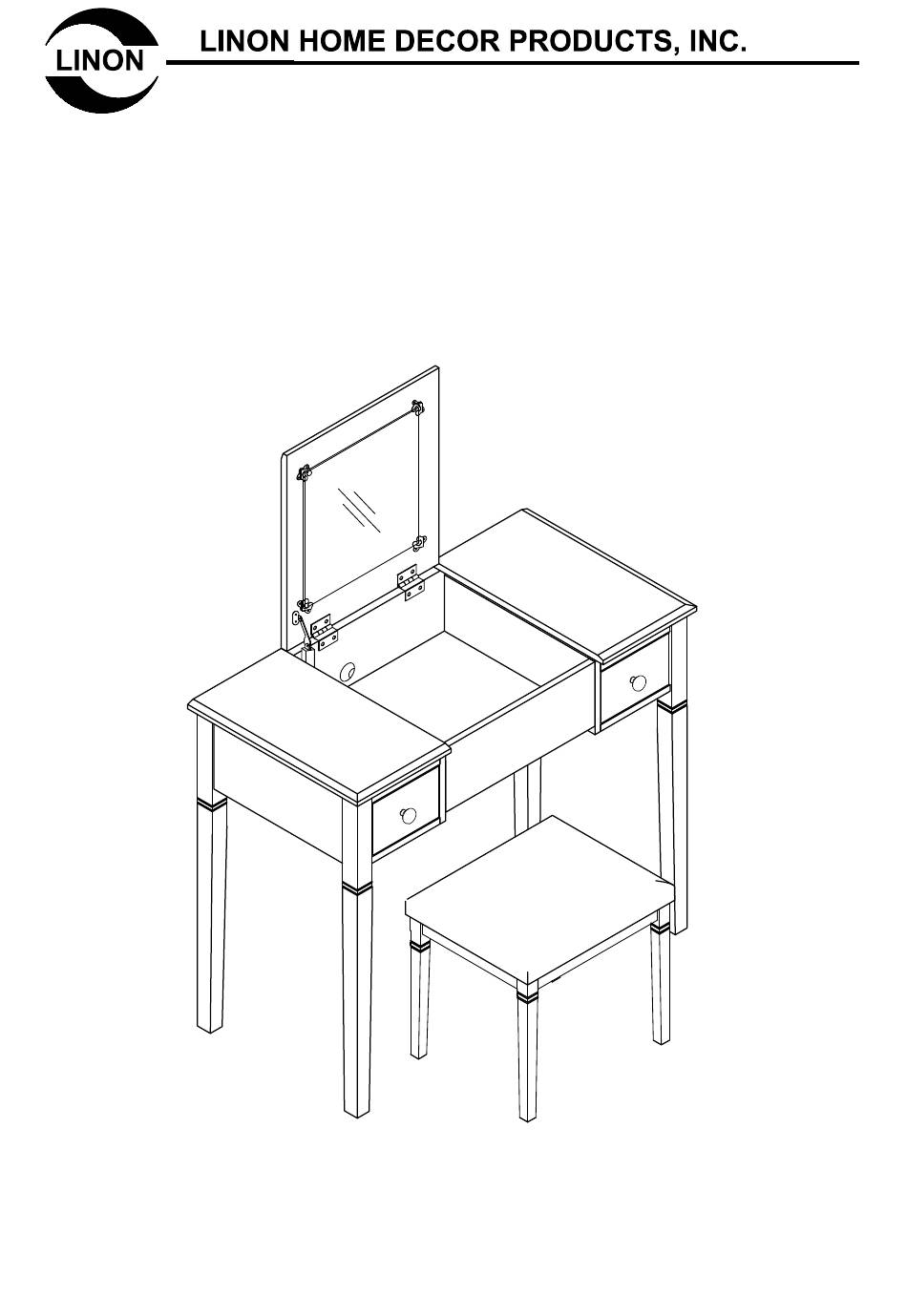

- Page 1 VANITY SET ENSEMBLE DE COIFFEUSE JUEGO DE TOCADOR #64023BLKCHY01KDU HOA-20146...
- Page 2 If you need assistance with assembly or replacement parts, please contact Linon Customer Service, prior to returning the item to the store. Visit our web site www.linon.com if there is an issue with missing hardware and for care instructions on your new purchase.
- Page 3 Mirror / Miroir / Espejo 64023BLKCHY-02-HOA Table - leg / Table - pied / Mesa - pata 64023BLKCHY-03-HOA 64023BLKCHY-04-HOA Stool - frame cushion / Tabouret - siège rembourré / Taburete - asiento acolchado 64023BLKCHY-05-HOA Stool - leg / Tabouret - pied / Taburete - pata 64023BLKCHY-00-HOA 64023BLKCHY-01-HOA Table - Top / Table - Dessus / Mesa - Encimera...
- Page 4 Bolt (Ø1/4"x2-1/2") / Boulon / Perno Bolt (Ø1/4"x2-1/4") / Boulon / Perno Spring washer / Rondelle à ressort / Arandela elástica Flat washer / Rondelle plate / Arandela plana Metal knob / Bouton en métal / Perilla de metal Knob screw (Ø4x20mm)/ Vis pour bouton / Tornillo para perilla Mirror holder / Support de miroir / Sujeta-espejo Pan head screw (Ø3x12mm) / Vis à...
- Page 5 Please pull up plastic stopper to slide out the drawer for leg assembly. Levez la butée en plastique pour glisser le tiroir et assembler le pied. Levante el tope de plástico para deslizar el cajón y ensamblar la pata. - 5 -...
- Page 6 - 6 -...
- Page 7 Tighten the bottom mirror holders. Serrez les supports inférieurs du miroir. Apriete los soportes inferiores del espejo. - 7 -...
- Page 8 COMPLETED ASSEMBLY ASSEMBLAGE TERMINÉ ENSAMBLAJE TERMINADO WEIGHT LIMITS : 275 LBS POIDS LIMITE : 275 LBS LÍMITE DE PESO : 275 LBS - 8 -...
- Page 9 Wall Anchor Short Screw Strap Mounting Bracket Long Screw Ancrages muraux Vis courte Vis longue Support de montage Courroies Anclaje de pared Ménsula de montaje Tornillo corto Tornillo largo Abrazadera de sujeción A (1pc) C (2pcs) B (2pcs) D (2pcs) E (2pcs) PLEASE NOTE: For your safety, to prevent the danger of this unit tipping over, it is important that the wall anchors are properly attached.
- Page 10 - 10 -...
- Page 11 Para pedir piezas de repuesto y consultar las Visit our web site www.linon.com if Rendez-vous sur notre site Web, à instrucciones de cuidado de su mueble there is an isuue with missing www.linon.com, s'il vous manque des recién adquirido, visite nuestro sitio Web, hardware and for care instructions pièces de quincaillerie ou pour obtenir...
