Heritage Bathrooms Caversham KCHFM400 Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation
Guide
Models Covered:
Caversham Furniture
Please keep this booklet for future
reference.
Installer: When you have read these
instructions, please ensure you leave them
with the user.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Caversham KCHFM400 and is the answer not in the manual?

Questions and answers

Related Manuals for Heritage Bathrooms Caversham KCHFM400

Summary of Contents for Heritage Bathrooms Caversham KCHFM400

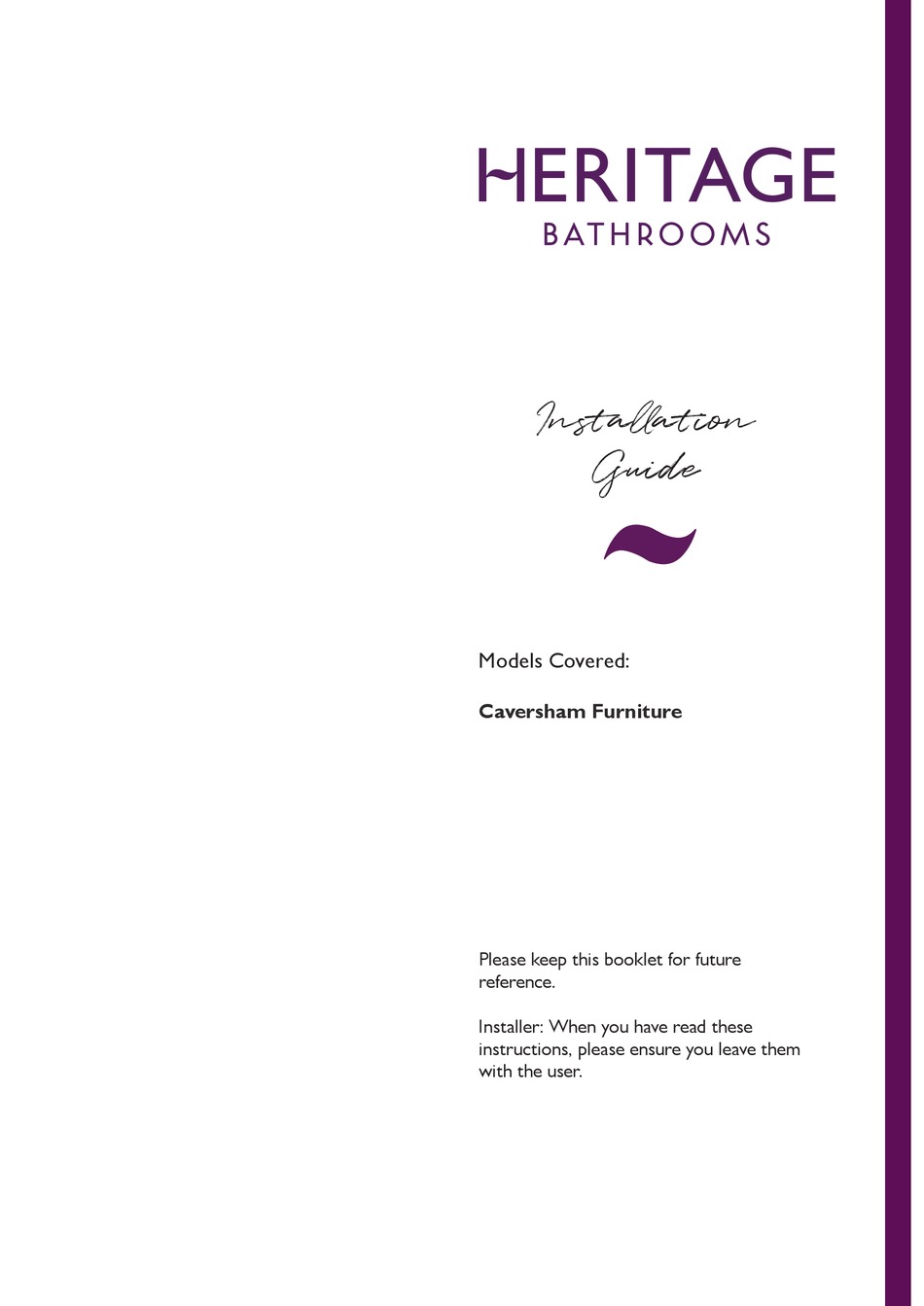

  • Page 1 Installation Guide Models Covered: Caversham Furniture Please keep this booklet for future reference. Installer: When you have read these instructions, please ensure you leave them with the user.

  • Page 2: Table Of Contents

    I N T R O D U C T I O N Thank you for buying a Heritage Product. When you buy a Heritage product, you can be confident that it not only features a beautiful, distinctive, classic design, but that it has also been made to the very highest quality standards.

  • Page 3: Safety Notes

    S A F E T Y N O T E S Please make sure you read these instructions and retain for future use. All products manufactured by Heritage Bathrooms are safe, providing they are installed and used correctly and also receive maintenance when needed.

  • Page 4: Tools Required

    T O O L S R E Q U I R E D I N S TA L L AT I O N - F R E E S TA N D I N G U N I T Freestanding Cloakroom Unit, Dorchester Vanity Unit, Granley Vanity Unit The units shown in these instructions are for illustration purposes only.
  • Page 5 I N S TA L L AT I O N - F R E E S TA N D I N G U N I T Freestanding Cloakroom Unit, Dorchester Vanity Unit, Granley Vanity Unit If you are installing a basin, and your unit comes with regulating screws, we recommend using these to ensure the basin is level once in situ.

  • Page 6: Installation - Mirrored Wall Cabinets

    I N S TA L L AT I O N - W A L L H U N G M I R R O R E D D O O R U N I T S Caversham Double Door Mirror Wall Unit & Caversham Single Door Mirror Wall Unit Safety Notice- All Wall Hung Units must be installed with adequate load bearing screws (not supplied) and used with the supplied wall hung brackets and plates.

  • Page 7: Shelf Positioning

    I N S TA L L AT I O N - W A L L H U N G M I R R O R E D D O O R U N I T S Caversham Double Door Mirror Wall Unit & Caversham Single Door Mirror Wall Unit The wall brackets can be adjusted from the Turn the top adjustment screw to adjust the unit inside of the unit.

  • Page 8: Installation - Tall Boy Units

    I N S TA L L AT I O N - TA L L B O Y U N I T Caversham Freestanding Tall Boy Unit Our Tall Boy units give you the option to fit the door left or right handed, see p9 for full installation guide to fitting our adjustable hinges.

  • Page 9: Fitting Door Hinges

    F I T T I N G D O O R H I N G E S Fit mounting plate on the desired orientation of door, secure on the inside of the carcass using screws (supplied) Fit the hinge onto the door using the supplied screws. To secure the components follow illustration below MOUNTING PLATE...

  • Page 10: Installation - Wc Unit

    I N S TA L L AT I O N - W C U N I T Crucial Dimensions Push Button Hole Before installing ensure plumbing is in place first. If required to aid installation remove required skirting boards before fixing. The WC unit fascia is not pre-cut.

  • Page 11: Installation - Wall Hung Unit

    I N S TA L L AT I O N - W A L L H U N G U N I T Our cloakroom wall hung unit comes pre-fitted with hanging brackets. The unit should be fitted to the wall using the supplied brackets and wall plates. We also give you the option to fit the door left or right-handed.

  • Page 12: Installation - Wall Hung Vanity Unit

    I N S TA L L AT I O N - W A L L H U N G V A N I T Y U N I T Caversham Wall Hung One drawer Vanity Unit & Caversham Wall Hung Two Drawer Vanity Unit The units shown in these instructions are for illustration purposes only.
  • Page 13 I N S TA L L AT I O N - W A L L H U N G V A N I T Y U N I T Caversham Wall Hung One drawer Vanity Unit & Caversham Wall Hung Two Drawer Vanity Unit Determine favoured position of cabinet, remembering to take into account any additional height for your basin/ worktop.

  • Page 14: Installation - Framed Mirror

    I N S TA L L AT I O N - F R A M E D M I R R O R S Mirror can only be hung in portrait position Take measurements from the centres in the pre-fitted brackets and transfer these to the wall, ensuring they are level.

  • Page 15: Door Adjustment

    D O O R A D J U S T M E N T To adjust the doors side to side tighten/loosen screw 1 To adjust the door forwards and backwards tighten/loosen screw 2 To adjust the door up and down adjust screws 3 on the mounting plate.

  • Page 16: Notes

    N O T E S...

  • Page 17: Caring For Your Product

    C A R I N G F O R Y O U R P R O D U C T Your furniture has a high quality finish and should be treated with care to preserve the visible surface. A few tips for preventing defects from forming: Occasionally wipe the surface with a soft damp cloth and dry with a soft dry cloth.
  • Page 18 If you have any queries, our dedicated customer service teams and products experts are available to help. www.heritagebathrooms.com enquire@heritagebathrooms.com 0330 026 8503 Website Email us Call us UK: Heritage Bathrooms, Pooley Hall Drive, Birch Coppice Business Park, Dordon, Tamworth B78 1SG EU: Masco Europe S.à.r.l., 14 Rue Strachen, 6933 Mensdorf, Luxembourg.
