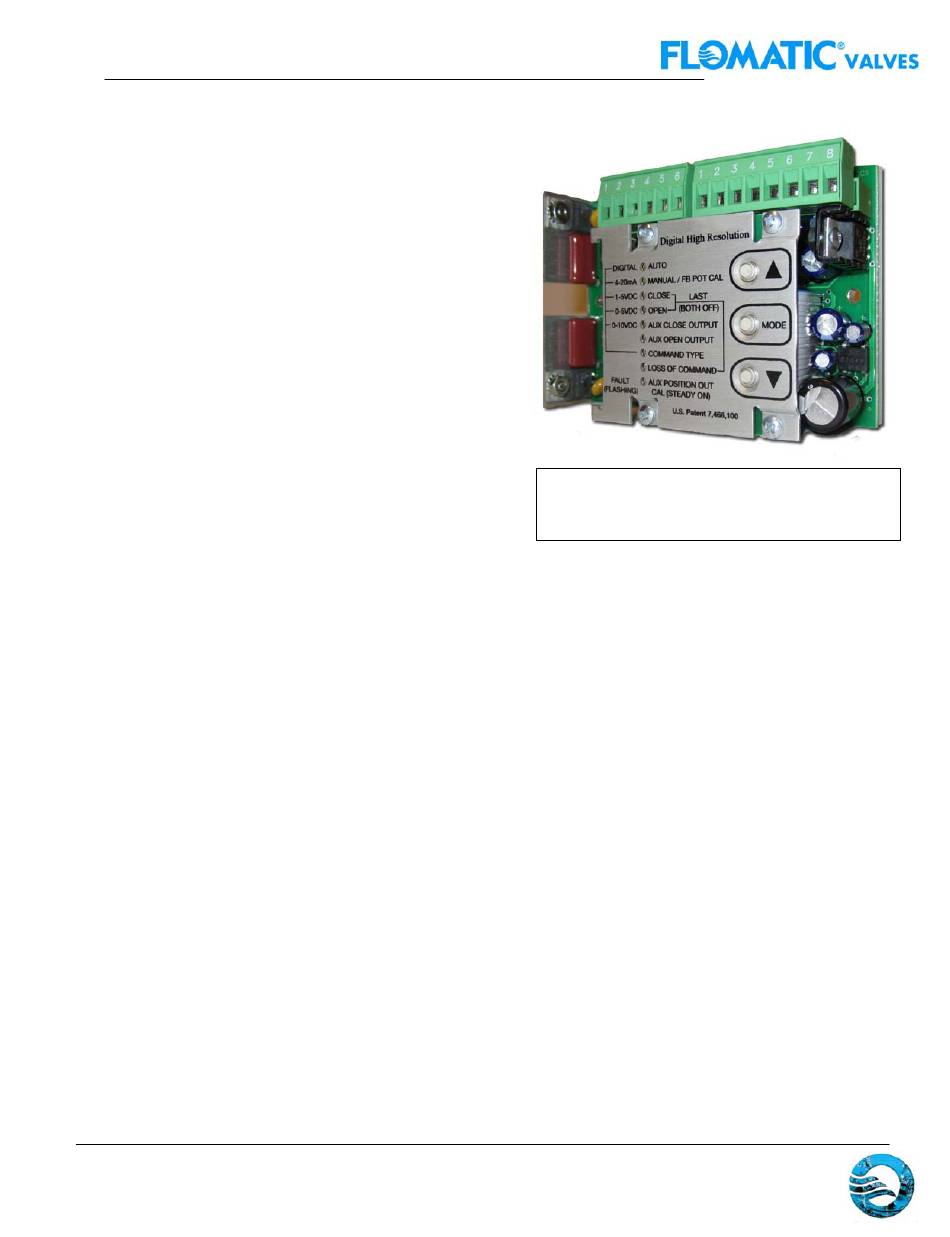

Flomatic Smart Card
Model FDHC-100 (Digital High-Resolution Controller)
Configuration and Operation Manual
The Flomatic FDHC-100 is a high performance
Digital positioner intended to control AC actuators,
providing 450 points of resolution with quarter turn
actuators ranging from 2 sec to 120 sec and rated for
25% duty or more. The FDHC-100 has many automatic
advanced features that will enhance any actuator while
making it easy to install and set up.
The simple three button control is used to configure all
parameters the unit needs for a wide variety of
applications, and allows the
to be easily set for direct or reversing acting without
any rewiring. The unit can be configured for various
command types (4-20mA, 1-5V, 0-5V, 0-10V, or a
digital command) and its default operation upon loss of
command.
Various option modules are easily plugged into the unit,
providing other features such as a position feedback
signal (current or voltage), auxiliary switches, fault relay
contact, or digital communications. A wide range of data is accessible through a digital communications
module, providing additional control or information.
The unit is of single solid construction and is easily mounted with two screws. The FDHC-100 is
interchangeable with the AMC and LRC standard size controllers, and can be used to upgrade
performance for those applications.
FEATURES
Positions to ±0.1° with quarter-turn actuators ranging from 2 sec to 120 sec (with or without a
brake).
Adaptive Control feature continuously adjusts for load and actuator conditions and eliminates
calibration procedures and auto-cal operations.
Three button control provides easy setup and eliminates the need for instrumentation.
Polarity Detection feature allows direct or reverse acting operation without re-wiring.
Electronic Brake feature can eliminate need for a mechanical brake in many applications, and
extends mechanical brake life when used.
Stall Detection feature protects actuator motor from a stall condition.
Automatic Duty Cycle Control feature prevents shutdown of a process due to a thermal overload of
the actuator motor, and allows actuators rated for 25% duty or more to be safely used.
Operating temperature range of 0 to 60°C
Flomatic Corporation
Glens Falls, NY 12801
Phone (518) 761-9797
Fax (518) 761-9798
TM
open
closed
and
positions
FDHC-100 Configuration & Operation Man. Rev 0
August 16, 2010
FDHC-100 / FDHC-100C 117VAC (CE ready)
FDHC-100A / FDHC-100D 234VAC
FDHC-100B /FDHC-100D 24VAC (CE ready)
1 of 14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart Card FDHC-100C and is the answer not in the manual?

Questions and answers

Summary of Contents for Flomatic Smart Card FDHC-100C

  • Page 1 Flomatic Smart Card Model FDHC-100 (Digital High-Resolution Controller) Configuration and Operation Manual The Flomatic FDHC-100 is a high performance Digital positioner intended to control AC actuators, providing 450 points of resolution with quarter turn actuators ranging from 2 sec to 120 sec and rated for 25% duty or more.
  • Page 2 Flomatic Smart Card Model FDHC-100 (Digital High-Resolution Controller) Configuration and Operation Manual OUTLINE FDHC-100 / FDHC-100C 117VAC (CE ready) FDHC-100A / FDHC-100D 234VAC FDHC-100B / FDHC-100E 24VAC (CE ready) Digital High Resolution FDHC-100 Configuration & Operation Man. Rev 0 Flomatic Corporation...
  • Page 3: Block Diagram

    Flomatic Smart Card Model FDHC-100 (Digital High-Resolution Controller) Configuration and Operation Manual BLOCK DIAGRAM FDHC-100 DESCRIPTION The FDHC-100 is rated for motors with up to 5A running currents and comes in three versions to accommodate different voltage applications. The FDHC-100 and FDHC-100C are rated for 117 VAC ±10%;...
  • Page 4 Flomatic Smart Card Model FDHC-100 (Digital High-Resolution Controller) Configuration and Operation Manual The simple three button MODE control (▲) and (▼) allows the user to perform a complete set-up from the unit itself without the need for any instrumentation. The adaptive control feature of the FDHC-100 eliminates the need for any calibration steps.
  • Page 5: Override Mode

    Flomatic Smart Card Model FDHC-100 (Digital High-Resolution Controller) Configuration and Operation Manual indicator will be steady on; for some of the modes other indicators will flash to indicate specific settings associated with the mode. Each of the modes is described in more detail in the following sections. If a 0-5V or 0-10V command signal is used, the LOSS OF COMMAND function cannot be used.
  • Page 6 Flomatic Smart Card Model FDHC-100 (Digital High-Resolution Controller) Configuration and Operation Manual The motor is also automatically turned off if the FDHC-100 detects a stall (see STALL DETECTION). An OPEN or CLOSE operation can be attempted again after switching to the OFF, LATCH, or STOP functions first.
  • Page 7: Command Type

    Flomatic Smart Card Model FDHC-100 (Digital High-Resolution Controller) Configuration and Operation Manual the adjust buttons are used to set the actuator to any desired position, and upon pressing the MODE closed button (to select the next function, OPEN), the FDHC-100 will retain the setting as the defined position.
  • Page 8: Fault Indicator

    Flomatic Smart Card Model FDHC-100 (Digital High-Resolution Controller) Configuration and Operation Manual 5.5V or 22mA. If the FDHC-100 detects a loss of the command signal, the Fault indicator will flash and open closed the actuator will be moved to one of three preset positions: the...
  • Page 9 Flomatic Smart Card Model FDHC-100 (Digital High-Resolution Controller) Configuration and Operation Manual when the FDHC-100 detects a motion greater than 1.5° in either direction. The fault can be cleared if 1) the command signal commands a Motor 2 operation, 2) manual operation with the adjust buttons results in a motion greater than 1.5°, or 3) a mechanical manual override forces the 1.5°...
  • Page 10: Option Modules

    Flomatic Smart Card Model FDHC-100 (Digital High-Resolution Controller) Configuration and Operation Manual until it detects an excess heat build up in the motor (usually well below the limit of the thermal switch). At that time, duty cycle operation is automatically enabled and continues until the motor cools enough to resume continuous operation.
  • Page 11: Specifications

    Flomatic Smart Card Model FDHC-100 (Digital High-Resolution Controller) Configuration and Operation Manual SPECIFICATIONS POWER REQUIREMENTS FDHC-100, FDHC-100C: 117VAC ±10%, 50/60 Hz FDHC-100A, FDHC-100D: 234VAC ±10%, 50/60 Hz FDHC-100B, FDHC-100E: 24VAC ±10%, 50/60 Hz 12 VA typical (not including output load)
  • Page 12: Wiring Diagrams

    Flomatic Smart Card Model FDHC-100 (Digital High-Resolution Controller) Configuration and Operation Manual WIRING DIAGRAMS Input Signal Configurations FDHC-100 FDHC-100 FDHC-100 FDHC-100 FDHC-100 Configuration & Operation Man. Rev 0 Flomatic Corporation August 16, 2010 Glens Falls, NY 12801 12 of 14...
  • Page 13 Flomatic Smart Card Model FDHC-100 (Digital High-Resolution Controller) Configuration and Operation Manual WIRING DIAGRAMS Special Applications FDHC-100 FOTR-100 (Option Module) FDHC Series FDHC-100 Configuration & Operation Man. Rev 0 Flomatic Corporation August 16, 2010 Glens Falls, NY 12801 13 of 14...
  • Page 14 Flomatic Smart Card Model FDHC-100 (Digital High-Resolution Controller) Configuration and Operation Manual WIRING DIAGRAMS Special Applications (continued) FAMM-100 FDHC Series FDHC FAMM-100 Series FDHC-100 Configuration & Operation Man. Rev 0 Flomatic Corporation August 16, 2010 Glens Falls, NY 12801 14 of 14...
