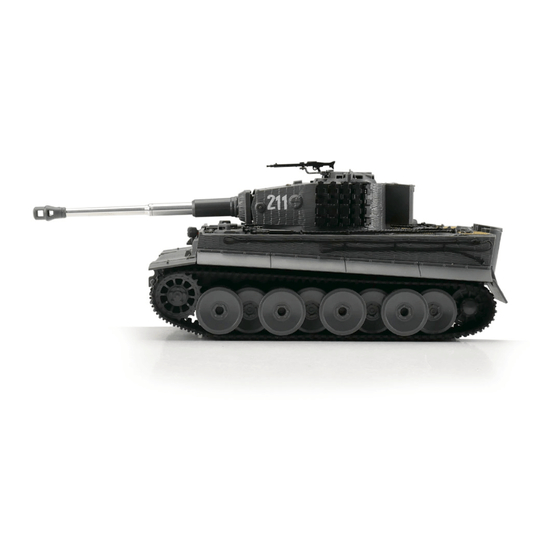

- Page 1 ALTER Funkferngesteuerter / Radio Controlled Tiger I / T-34/85 Maßstab / Scale 1/30 2.4GHz Fernsteuerung Remote Control NICHT GEEIGNET FÜR KINDER UNTER 14 JAHREN! NOT SUITABLE FOR CHILDREN UNDER 14 YEARS!
-
Page 2: Table Of Contents
Torro GmbH, D-63762 Großostheim. Any publication, reproduction, distribution, or commercial use us subject to written consent. All article names and pictures or illustrations are property of the respective manufacturer or of Torro GmbH. Copyright is extended to translations and layout. All contents of the manual are subject to change. -
Page 3: Caution Notes, Safety Notes And Disclaimer Of Warranty
You as a holder are liable for damages which occur as a result of operating a model vehicle. Torro GmbH does not have any control over the handling, the compliance with assembly and operation notes as well as the actual operation of the model and its maintenance. - Page 4 Tiger I / T-34/85 CAUTION NOTES PLEASE READ THESE OPERATING INSTRUCTIONS CAREFULLY This RC battle tank is not a toy but a tank model controlled by radio signals. Please use carefully to avoid injuries and damages. Please read through the following caution notes! Do not put hands in between the wheels or onto the tracks.
-
Page 5: Scope Of Delivery
Tiger I / T-34/85 SCOPE OF DELIVERY Not following the warning notes may cause injuries and malfunctions. Warning Please follow all warning notes! Use tanks indoors only, outdoor use at your own risk! This tank is a high-precision product and should be used with care. Avoid shocks and dust, sand or stones entering the body or the wheels and tracks. -
Page 6: Battery Caution And Safety Notes
Tiger I / T-34/85 BATTERIES CAUTION AND SAFETY NOTES Remote control Warning ON/OFF Sequence for Devices: Not inserting batteries with When turning on power, turn on remote control first then the tank. the correct polarity may Sequence for turning off power is vice versa. cause battery leakage or 1. -
Page 7: Battery Pack Charging
Tiger I / T-34/85 BATTERY PACK CHARGING Charging process with the supplied charging cable. 1. Plug the USB cable into a USB port on the computer or a dedicated adapter. The power indicator lights up. 2. Connect the cable from the battery pack to the USB plug. -
Page 8: Remote Control Functions
Tiger I / T-34/85 REMOTE CONTROL FUNCTIONS Trim forward-left Remote control on/off Trim forward-right MG sound effect Volume (5 level) on shoulder button on shoulder button Cannon shooting function Forward Turret rotation left Right Backward Left Turret rotation right Trim Engine Start/Stop backward-right Trim... - Page 9 Tiger I / T-34/85 REMOTE CONTROL FUNCTIONS Forward Forward-Left Forward-Right Backward-Left Backward-Right Backward Trim left/right: Note: The trim function is used when the tank deviates to the left or to the right, when it should drive straight ahead. This can be remedied with the trim to be set in the opposite direction: If a leftward movement is visible, press the “Trim forward-right”...
- Page 10 Tiger I / T-34/85 REMOTE CONTROL FUNCTIONS Trim Forward If the tank deviates to the right when driving straight ahead, If the tank deviates to the left when driving straight ahead, press the "Trim forward-left" button on the press the "Trim forward-right" button on the remote control until the tank drives straight ahead.
- Page 11 Tiger I / T-34/85 REMOTE CONTROL FUNCTIONS Left Right Press right control stick Press right control stick to the right. to the left. Turret rotation left Turret rotation right Press left control stick Press left control stick to the left. to the right.
-
Page 12: Remote Control Binding
Tiger I / T-34/85 REMOTE CONTROL FUNCTIONS The various functions can be combined to simulate realistic movement of the tank in the terrain. Below are some examples, whereby your own and new combinations can be devised: Drive + cannon right/left Drive + cannon firing function Turn tank + MG firing function Note... -
Page 13: Infrared Function
Tiger I / T-34/85 INFRARED FUNCTION Infrared receiver Hit indicator L4 L3 L3 L2 L2 L1 IR shooting diode At the beginning of the battle, each tank has 4 life points. (Visible on the hit display) As soon as a tank is hit, one "life" is lost and one less LED lights up on the hit display. As soon as the tank has been hit 4 times, it has lost the battle. -
Page 14: Accessories
Tiger I / T-34/85 ACCESSORIES Accessories may already be partially attached. ⑤ T34/85 ② ① ④ ③ ② ④ ① ⑤ ⑤ ③ ④ ④ ④ Tiger 1 ② ① ⑥ ⑥ ③ ④ ⑤ ⑤ ① ① ① ⑥ ⑥... -
Page 15: Warranty Exclusion
No repair services will be offered for products, which have be altered or disassambled by the user in any way! Torro spare parts and accessories service Torro offers an excellent spare part service. Please contact your local dealer for spare part inquiries. Warning... -
Page 16: Notes
Telecommunication Regulations: This device may be operated in EU countries and CH. Declaration of Conformity: The declaration of conformity is available for download at https://www.torro.de/en/certificates Product Questions / Customer Complaints Environmental protection Please, do contact our service department if you...
